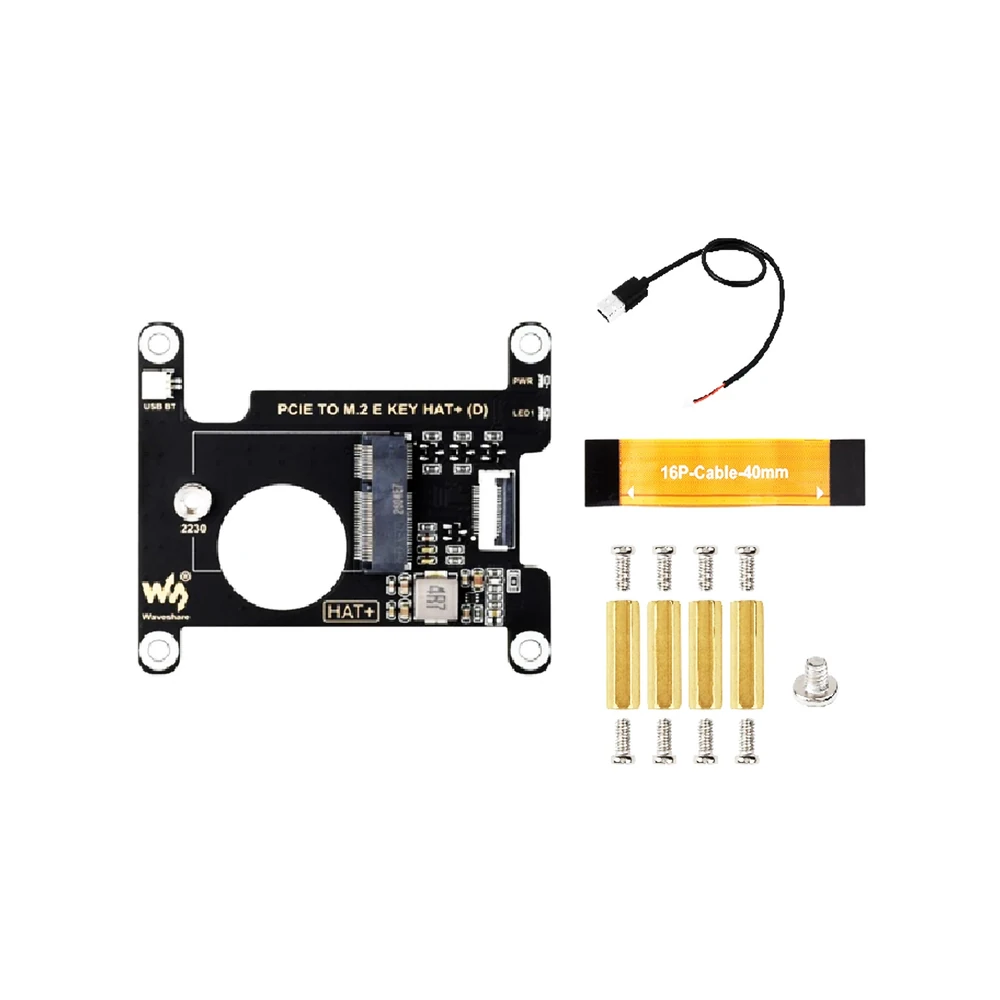

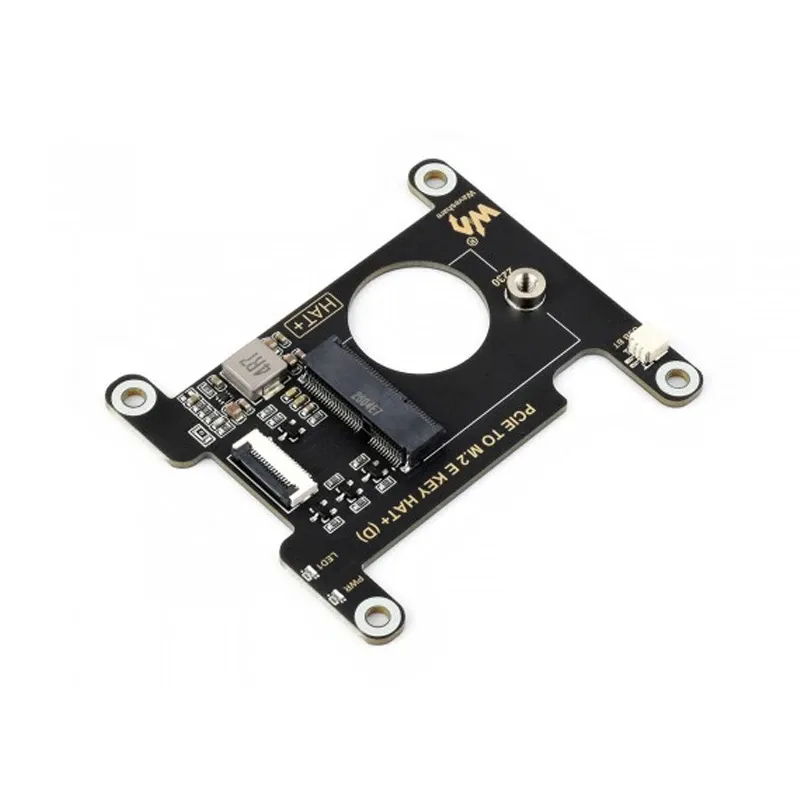

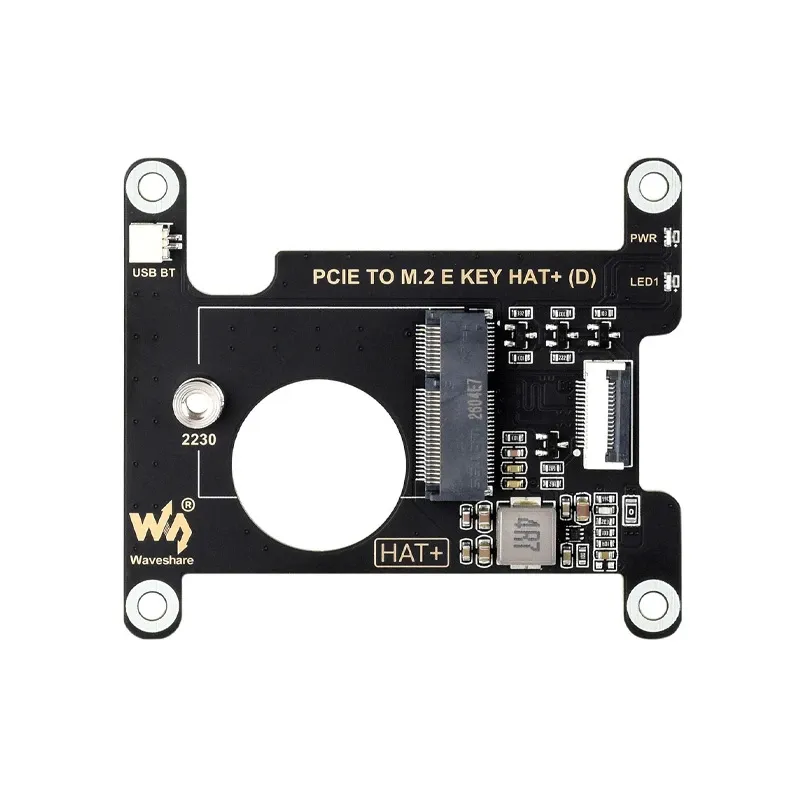

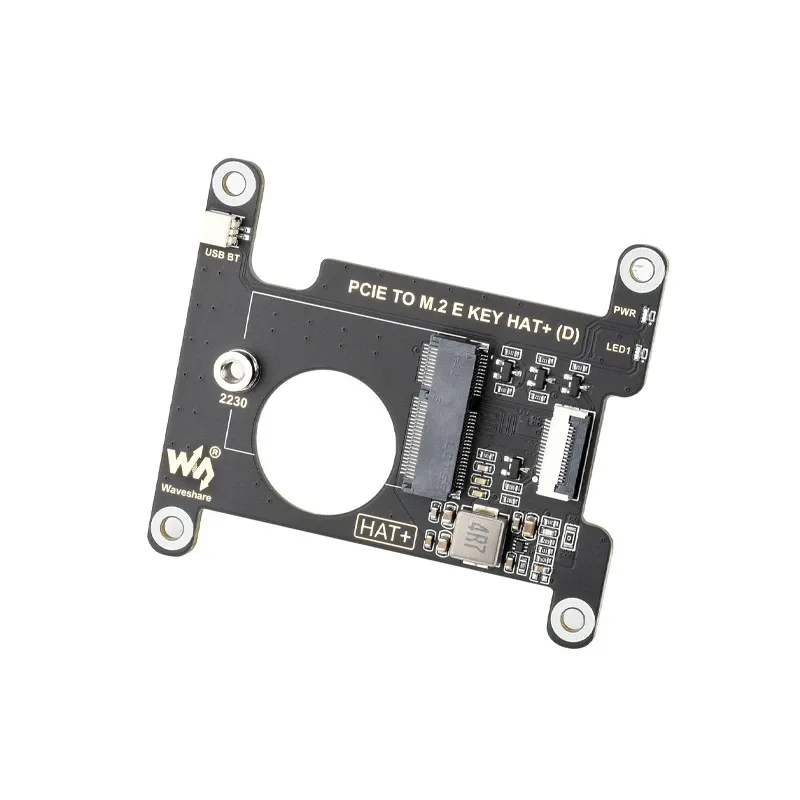

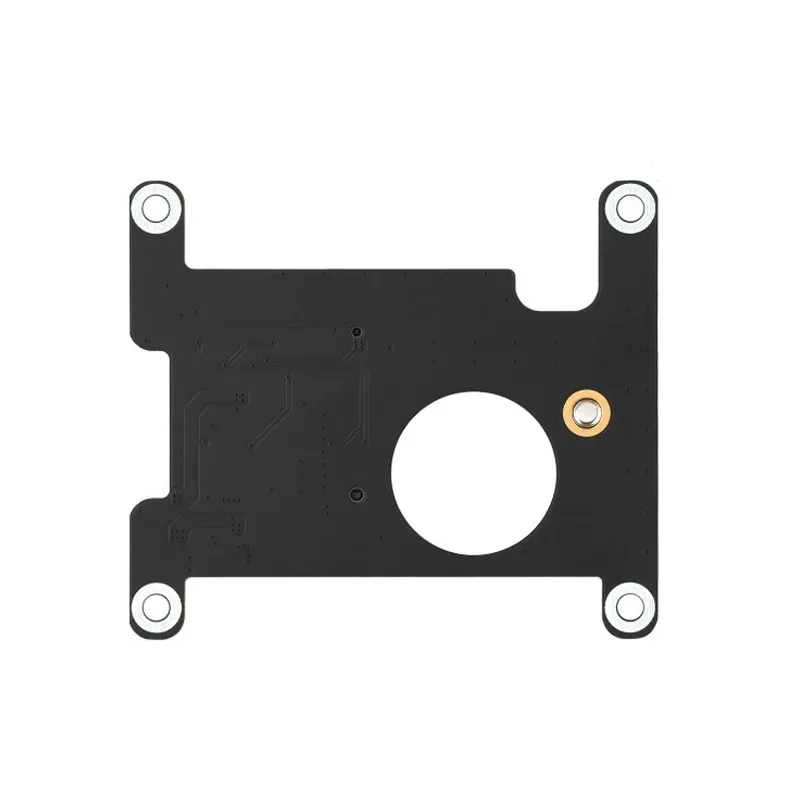

Waveshare PCIe to M.2 E Key HAT+ (D) for Raspberry Pi 5
The Waveshare PCIe to M.2 E Key HAT+ (D) expands Raspberry Pi 5 connectivity by integrating M.2 E-Key wireless NICs, enabling high-speed Wi-Fi and Bluetooth functionalities. It utilizes the 16-pin PCIe interface, supporting M.2 2230 form factor modules for seamless wireless upgrades.
Features
- Designed specifically for Raspberry Pi 5, offering straightforward top-mount installation.
- Enables seamless integration of M.2 E Key wireless NICs for Wi-Fi and Bluetooth capabilities.
- Utilizes a 16-pin PCIe interface, supporting PCIe ×1 Gen2/Gen3 for high-speed data transfer.
- Compatible with M.2 2230 form factor modules and both A/E Key and E Key types.
Out of stock
The Waveshare PCIe to M.2 E Key HAT+ (D) is an essential expansion module engineered for the Raspberry Pi 5, significantly enhancing its wireless capabilities. This HAT allows for the straightforward integration of NGFF (M.2 E Key) wireless NICs, facilitating the addition of high-speed Wi-Fi and Bluetooth functionality to your Raspberry Pi 5 projects.
Leveraging the robust 16-pin PCIe interface, the HAT+ (D) ensures stable and high-performance connectivity with support for PCIe ×1 Gen2/Gen3. It offers broad compatibility with both A/E Key and E Key modules, providing flexibility for various wireless solutions. The onboard M.2 slot is designed for standard 2230 form factor cards, making it ideal for modern wireless upgrades and enabling advanced connectivity options for embedded systems, IoT applications, and more.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 8 × 7 × 2 cm |
