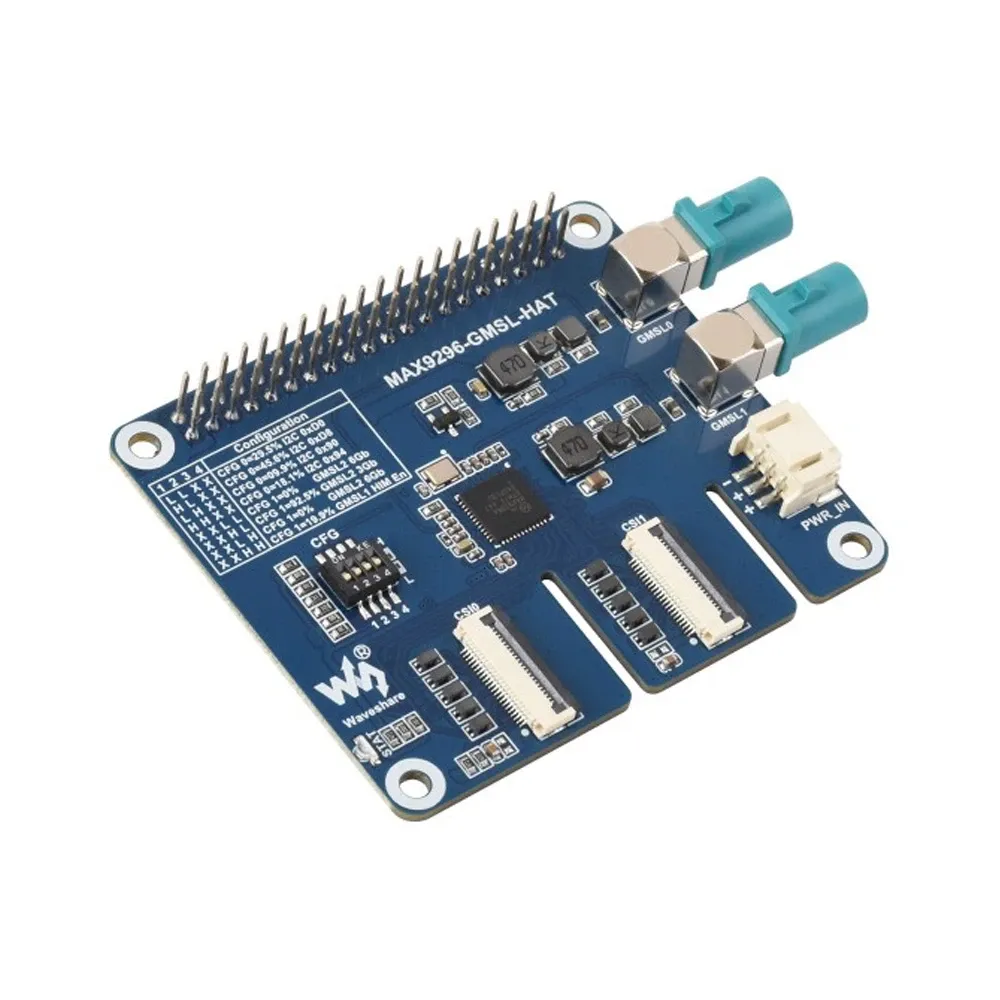

Waveshare 2-Ch GMSL Camera HAT for Raspberry Pi 5 & Jetson Orin

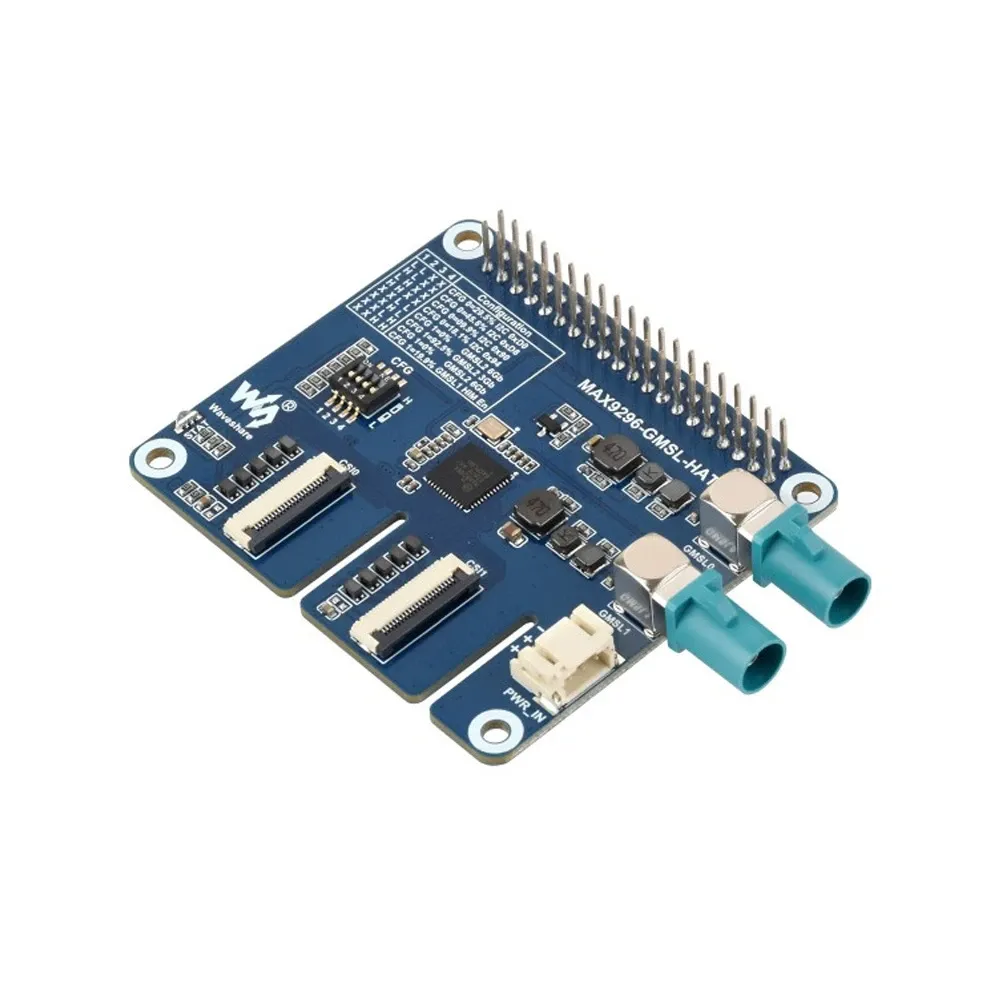

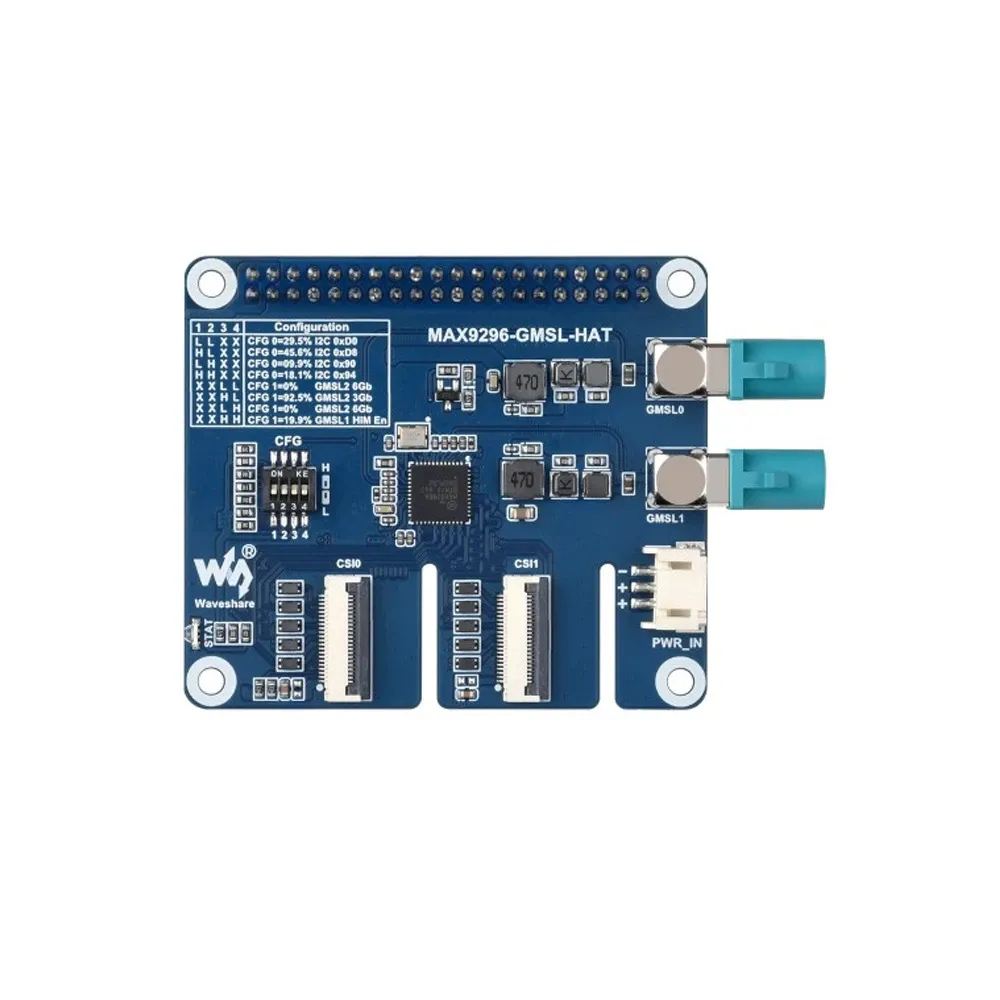

The Waveshare 2-Ch GMSL Camera HAT features the MAX9296A deserializer, supporting dual GMSL1/GMSL2 camera inputs via a 22PIN CSI interface. Engineered for Raspberry Pi 5 and Jetson Orin NX/Nano, it facilitates high-speed, long-distance video transmission for embedded vision systems.
Features
- Supports dual GMSL1/GMSL2 camera inputs with MAX9296A deserializer.
- Compatible with Raspberry Pi 5 and Jetson Orin NX/Nano platforms.
- Enables high-bandwidth, low-latency video over long distances via coaxial/twisted-pair cables.
- Features a 22PIN CSI output for seamless integration with host devices.
Out of stock
The Waveshare 2-Ch GMSL Camera HAT is specifically designed for robust, high-speed video transmission within advanced embedded vision systems. At its core lies the MAXIM (ADI) MAX9296A deserializer, enabling seamless support for two GMSL cameras. This HAT is compatible with both GMSL1 and GMSL2 protocols, offering flexibility for various camera modules and applications. Its design ensures smooth integration with popular AI and machine vision platforms like the Raspberry Pi 5 and NVIDIA Jetson Orin NX/Nano, providing a powerful imaging front-end.
This expansion board excels in maintaining signal integrity over long distances, utilizing coaxial or twisted-pair cables to simplify wiring and enhance system reliability. By supporting multiple serializer models (MAX9295, MAX96717, MAX96705) and high-definition camera modules, it provides a versatile solution for capturing critical visual data. The HAT delivers high bandwidth and low latency, which are crucial for real-time processing in demanding applications. Its compact form factor and 5V power supply make it an efficient addition to embedded projects requiring robust imaging capabilities.
Additional Information
| Weight | 0.041 kg |
|---|---|
| Dimensions | 6.5 × 5.6 × 2 cm |
