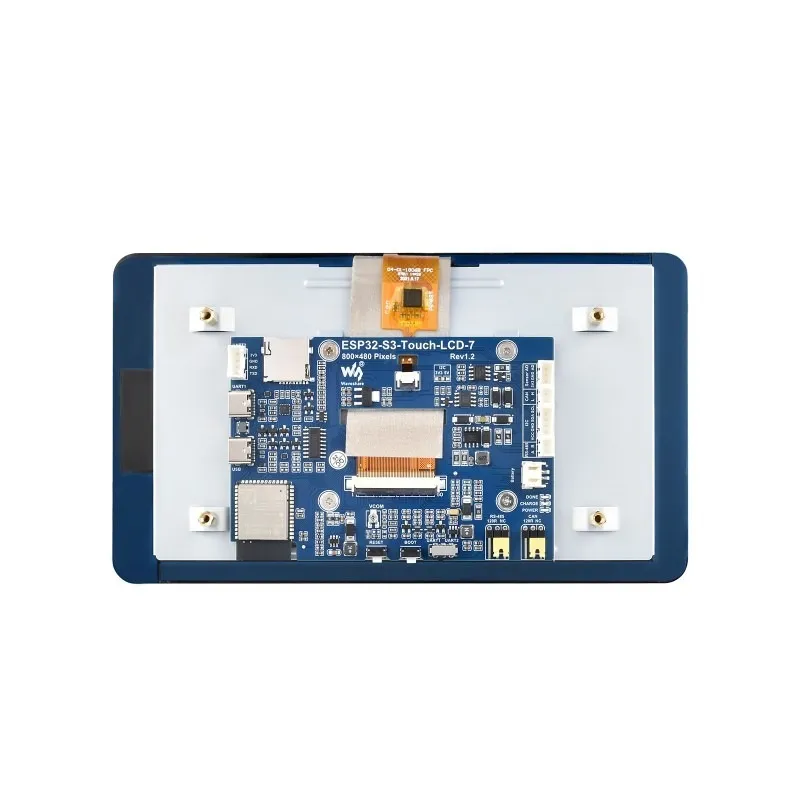

Waveshare ESP32-S3 7-inch Capacitive Touch Display Board

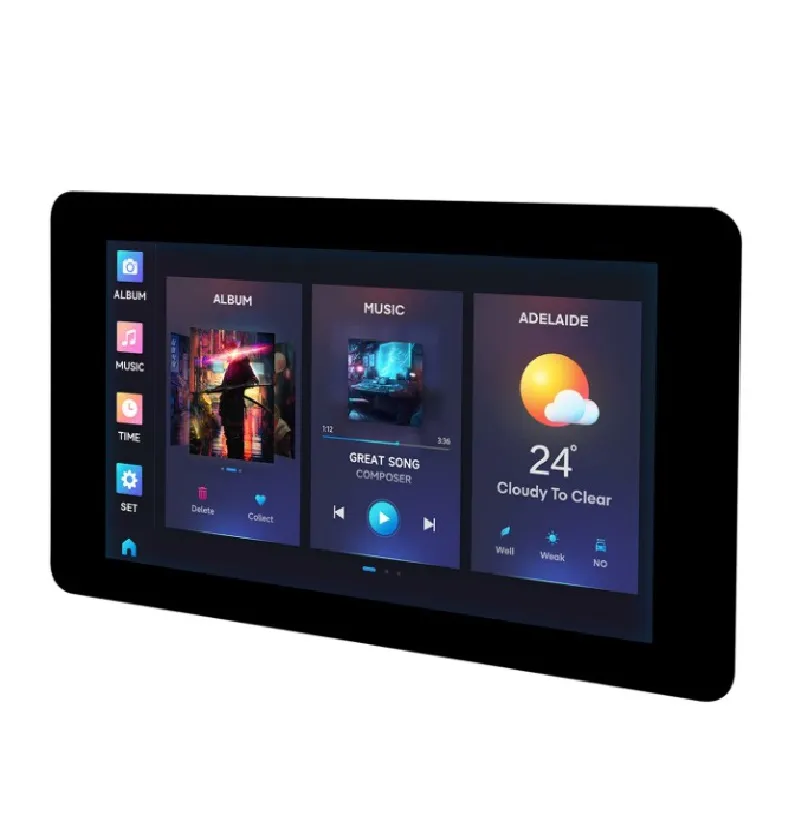

Waveshare ESP32-S3 7-inch Capacitive Touch Display Board - Image 2

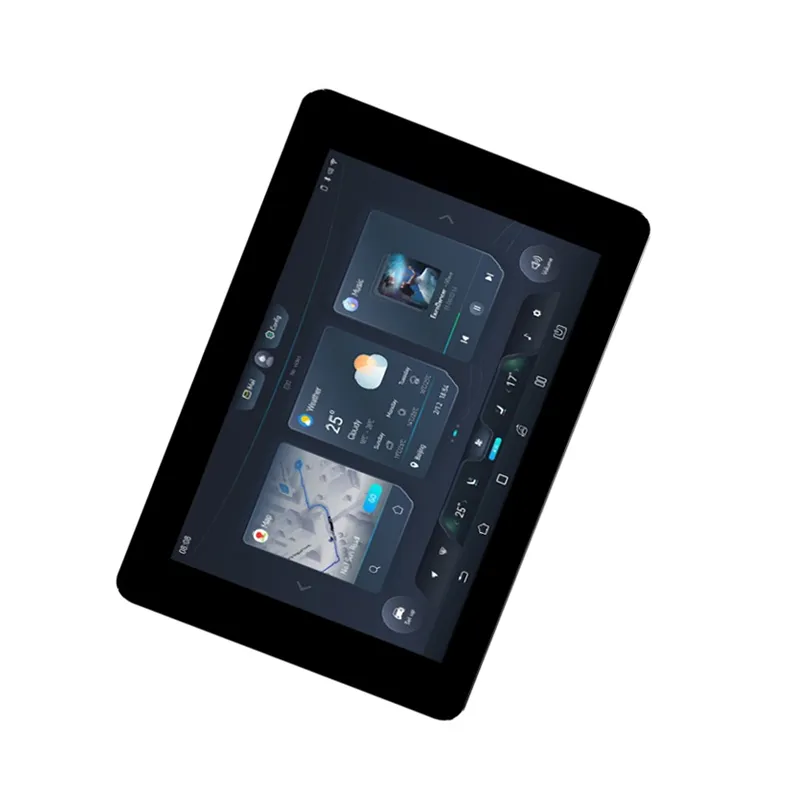

Waveshare ESP32-S3 7-inch Capacitive Touch Display Board - Image 3

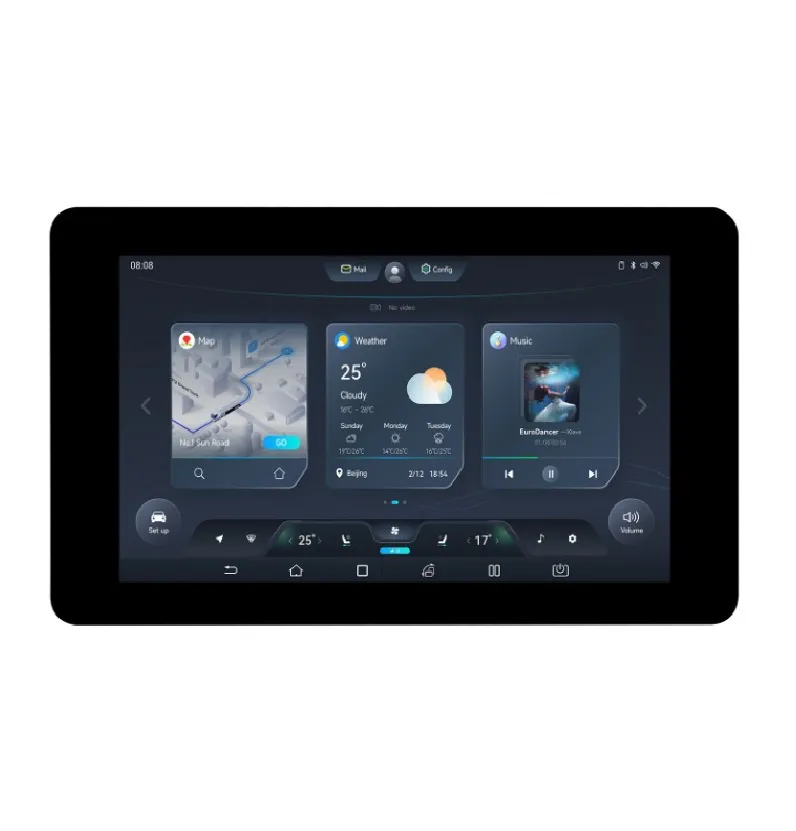

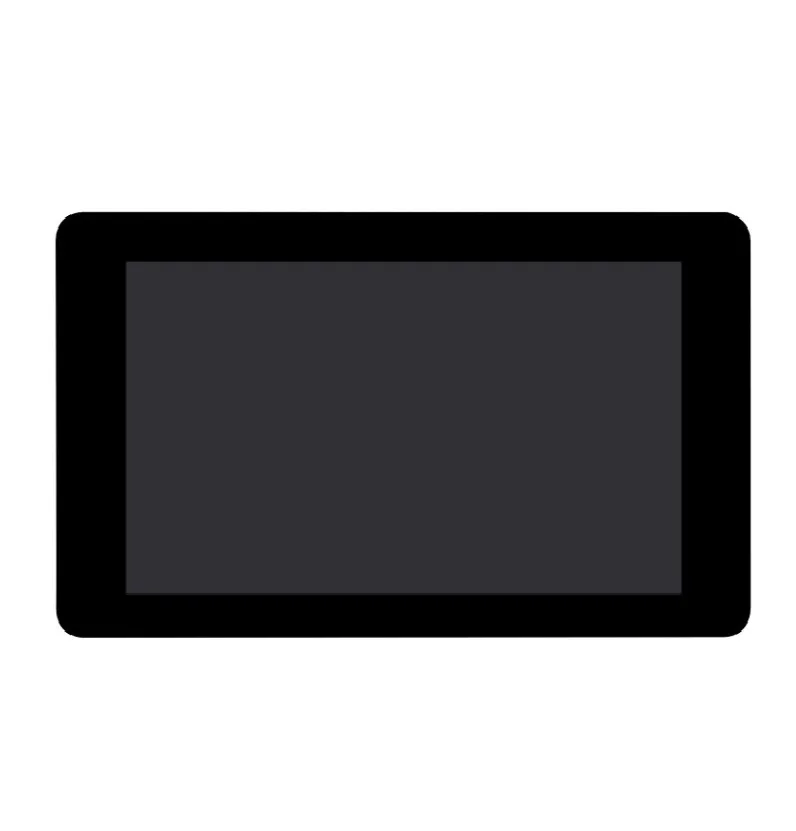

Waveshare ESP32-S3 7-inch Capacitive Touch Display Board - Image 4
Waveshare ESP32-S3 7-inch Capacitive Touch Display Board - Image 5
SKU: SBCD-0398
📋 GST Invoice Available

Waveshare ESP32-S3 7-inch Capacitive Touch Display Board

₹4,799.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ESP32-S3 7-inch Capacitive Touch Display Development Board provides a robust platform for HMI and IoT applications. Featuring an Xtensa 32-bit LX7 dual-core processor, integrated Wi-Fi, and Bluetooth 5, it supports fluid GUI development with frameworks like LVGL.

Features

  • Integrated Espressif ESP32-S3 with Xtensa 32-bit LX7 dual-core processor up to 240MHz.
  • Features a vibrant 7-inch 800×480 capacitive touch display with 5-point touch support.
  • Equipped with 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) for robust wireless connectivity.
  • Includes 8MB PSRAM and 8MB Flash alongside 512KB SRAM for extensive application memory.
  • Provides multiple peripheral interfaces including CAN, RS485, I2C, TF card slot, and a full-speed USB port.

Out of stock

Description

The ESP32-S3-Touch-LCD-7 is a versatile microcontroller development board designed to accelerate the creation of Human-Machine Interface (HMI) and advanced Internet of Things (IoT) projects. At its core lies the Espressif ESP32-S3 SoC, featuring an Xtensa 32-bit LX7 dual-core processor, optimized for high performance and low power consumption. This board seamlessly integrates 2.4GHz Wi-Fi and Bluetooth 5 (LE) capabilities, providing reliable wireless communication for diverse applications.

A standout feature is its onboard 7-inch capacitive touch screen, boasting an 800×480 resolution and 65K colors. This display, supporting 5-point touch via I2C, is perfectly suited for running sophisticated GUI programs like LVGL, enabling developers to create intuitive and interactive user interfaces. With generous memory resources, including 8MB PSRAM and 8MB Flash, the board can handle complex graphics and data-intensive tasks. Peripheral expansion is facilitated by onboard CAN, RS485, I2C interfaces, a TF card slot, and a full-speed USB port, making it suitable for industrial control, smart home systems, and embedded display solutions.

Key Features

  • Equipped with Espressif Xtensa 32-bit LX7 dual-core processor, clocked up to 240MHz.
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an integrated antenna.
  • Built-in 512KB SRAM and 384KB ROM, complemented by 8MB PSRAM and 8MB Flash on board.
  • Features a 7-inch capacitive touch display with 800×480 resolution and 65K color depth.
  • Supports 5-point capacitive touch control via I2C interface, including interrupt support.
  • Includes dedicated CAN, RS485, and I2C interfaces for industrial and sensor connectivity.
  • Integrated TF card slot for expandable storage, ideal for data logging and media assets.
  • Full-speed USB port provides convenient programming, debugging, and data transfer capabilities.
  • Flexible clock and independent module power supply settings enable efficient low-power operation.

Applications

  • Human-Machine Interface (HMI) development for industrial and consumer products.
  • Smart home control panels and intelligent building automation systems.
  • IoT dashboards and monitoring stations requiring visual feedback.
  • Embedded display solutions for appliances, medical devices, and kiosks.
  • Robotics control interfaces and interactive educational platforms.

Technical Specifications

ProcessorXtensa 32-bit LX7 dual-core
Main FrequencyUp to 240MHz
SRAM512KB (on-chip)
ROM384KB (on-chip)
PSRAM8MB (onboard)
Flash8MB (onboard)
Wireless Connectivity2.4GHz Wi-Fi (802.11 b/g/n)
Bluetooth VersionBluetooth 5 (LE), dual mode
Display Size7-inch
Display Resolution800 × 480
Display Colors65K
Touch TypeCapacitive, 5-point
Touch InterfaceI2C
PeripheralsCAN, RS485, I2C, TF card slot, USB

Frequently Asked Questions

What processor powers the ESP32-S3-Touch-LCD-7 board?

The board features an Espressif Xtensa 32-bit LX7 dual-core processor, capable of running up to 240MHz. This powerful MCU is optimized for efficient processing, real-time control, and complex GUI operations, making it ideal for advanced embedded applications requiring significant computational resources.

What are the display specifications of this development board?

It integrates a 7-inch capacitive touch display with an 800x480 resolution, supporting 65K colors. The capacitive multi-touch interface allows for intuitive interaction and is compatible with GUI frameworks like LVGL, enabling the development of responsive and visually rich human-machine interfaces.

Does this board support wireless connectivity?

Yes, the ESP32-S3-Touch-LCD-7 provides robust wireless communication. It supports 2.4GHz Wi-Fi (802.11 b/g/n) for network access and Bluetooth 5 (LE) for short-range connectivity with other devices. An onboard antenna ensures reliable signal performance for IoT and connected applications.

What memory resources are available on the ESP32-S3-Touch-LCD-7?

The board includes 512KB SRAM and 384KB ROM on the ESP32-S3 chip. Additionally, it integrates 8MB PSRAM and 8MB Flash memory directly on the board. This ample memory configuration supports complex applications, large framebuffer requirements for the display, and extensive data storage needs.

What peripheral interfaces are available for expansion?

The board offers a variety of peripheral interfaces, including CAN, RS485, I2C, and a TF card slot for expandable storage. It also integrates a full-speed USB port for programming and debugging. These interfaces facilitate connectivity with industrial sensors, external modules, and data logging.

Package Includes

  • 1 x ESP32-S3-Touch-LCD-7 Development Board
  • 2 x HY2.0 2P to 2PIN male cable 10cm
  • 1 x HY2.0 3P to 3PIN male cable 10cm
  • 2 x HY2.0 4P to 4PIN male cable 10cm
  • 1 x Screws pack

Additional Information

Weight 0.36 kg
Dimensions 24 × 15 × 5 cm
