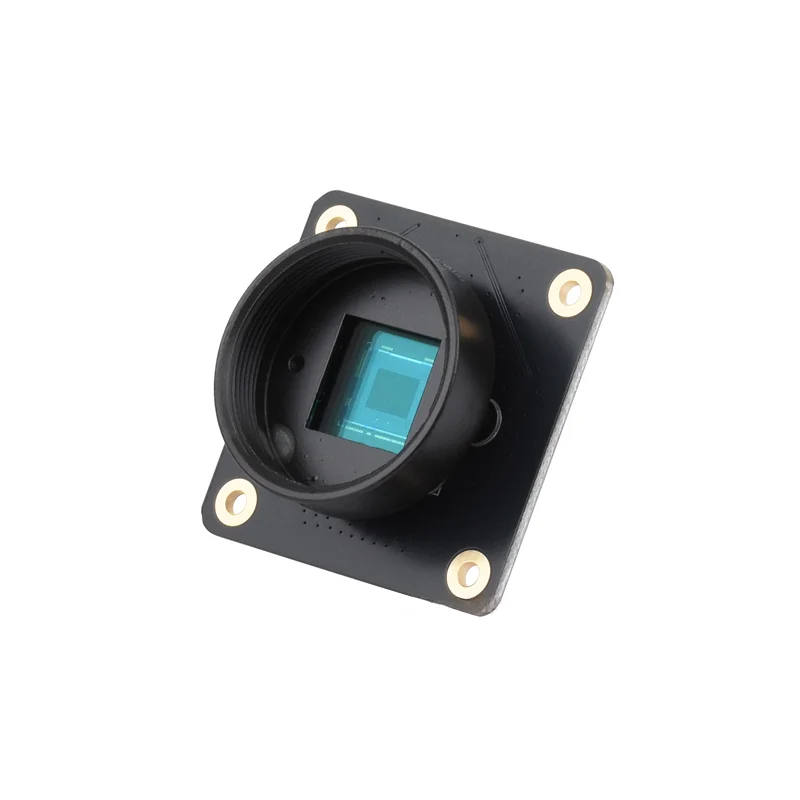

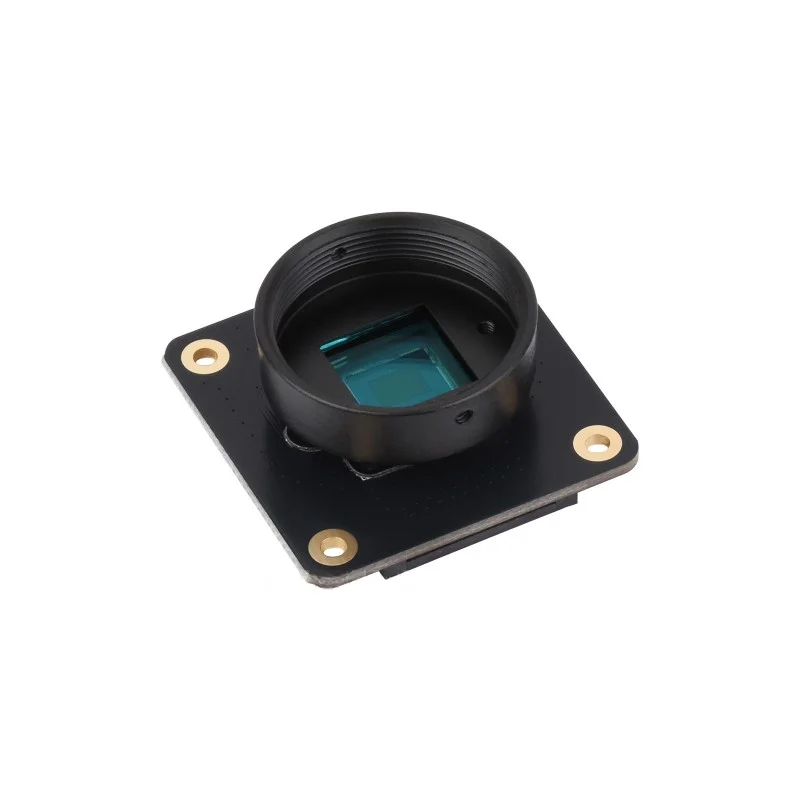

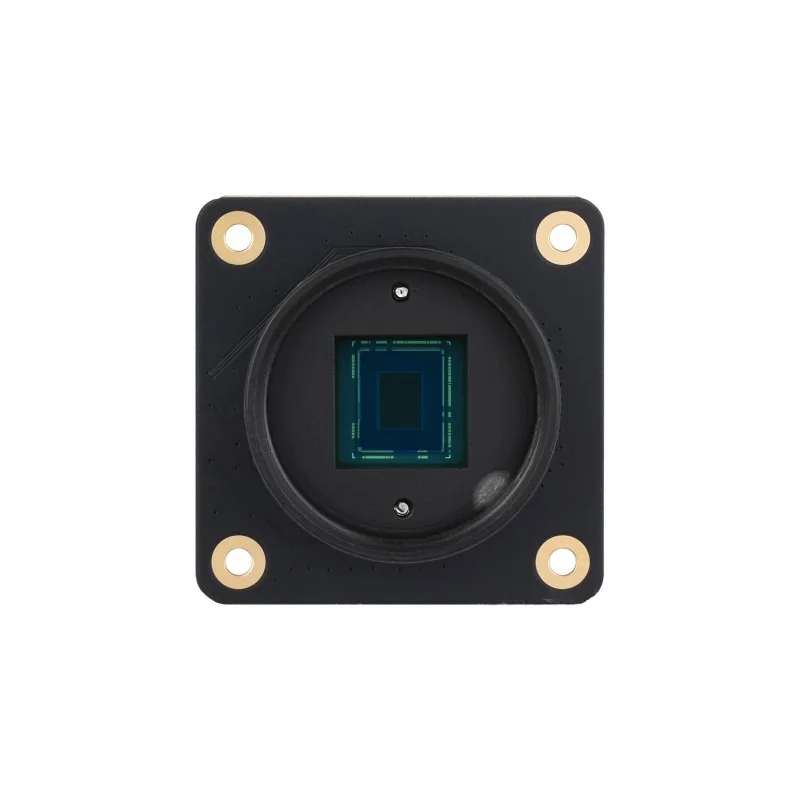

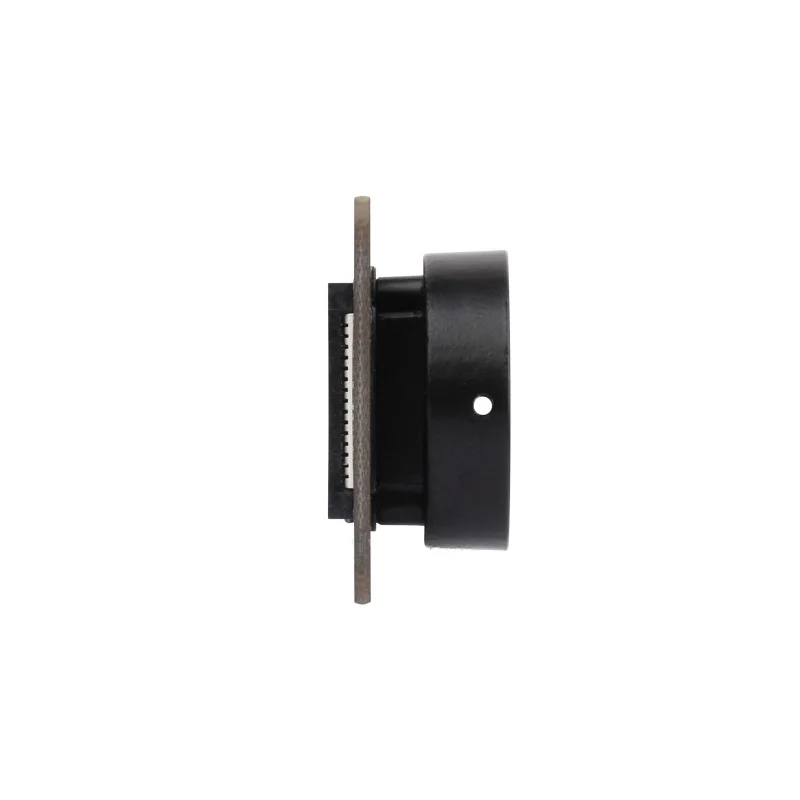

Waveshare IMX296 Global Shutter Camera Module (A) for Raspberry Pi

Connect the camera to your Raspberry Pi's CSI (Camera Serial Interface) port using the supplied 15-pin FPC cable. Ensure the Raspberry Pi is powered off during connection. For models requiring a 22-pin connector, use the included 15PIN to 22PIN adapter cable. Enable the camera interface via `raspi-config` under 'Interface Options' or by adding `start_x=1` to the `/boot/config.txt` file, then reboot.

A global shutter captures the entire image frame at a single instant in time, eliminating motion blur and spatial distortion (jelly-effect) when imaging fast-moving objects or during rapid camera panning. This is critical for precision tasks like robotic pick-and-place, barcode reading on conveyor belts, or optical measurement systems where timing accuracy directly impacts system performance and reliability.

This camera is supported by the standard Raspberry Pi Camera software stack. You can use the `libcamera` suite (e.g., `libcamera-still`, `libcamera-vid`) for capturing images and video. For Python development, the `picamera2` library provides a high-level API. For processing the RAW10 output, you may need custom scripts or OpenCV for debayering and converting the raw sensor data into a usable RGB image format.

Yes, the module supports standard C-mount and CS-mount lenses. The package includes a C-CS adapter. For CS-mount lenses, attach them directly to the module's thread. For C-mount lenses, first screw the included adapter onto the module to convert the mount, then attach the C-mount lens. Ensure the lens's flange focal distance and sensor coverage are compatible with the 6.3mm (1/2.9-inch) sensor format.

The integrated IR-cut filter blocks infrared light, allowing the camera to reproduce colors as perceived by the human eye under visible light. This is essential for accurate color imaging. The filter is permanently bonded to the sensor assembly and cannot be removed. If you require infrared sensitivity (e.g., for night vision or specialized spectral imaging), you would need a camera module specifically designed without an IR-cut filter or with a removable one.
