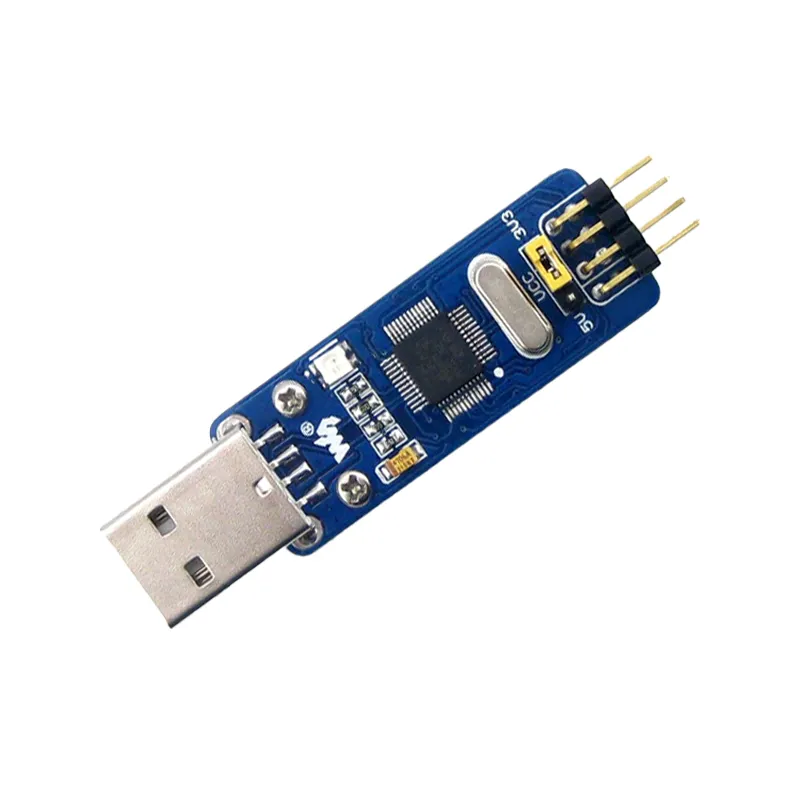

Waveshare ST-LINK/V2 Mini STM8/STM32 Debugger/Programmer

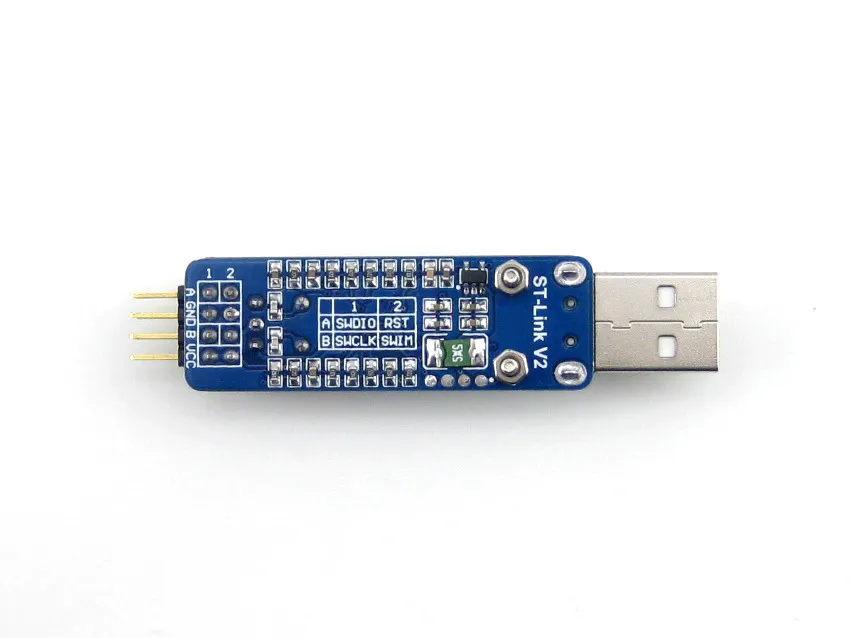

Waveshare ST-LINK/V2 Mini STM8/STM32 Debugger/Programmer - Image 2

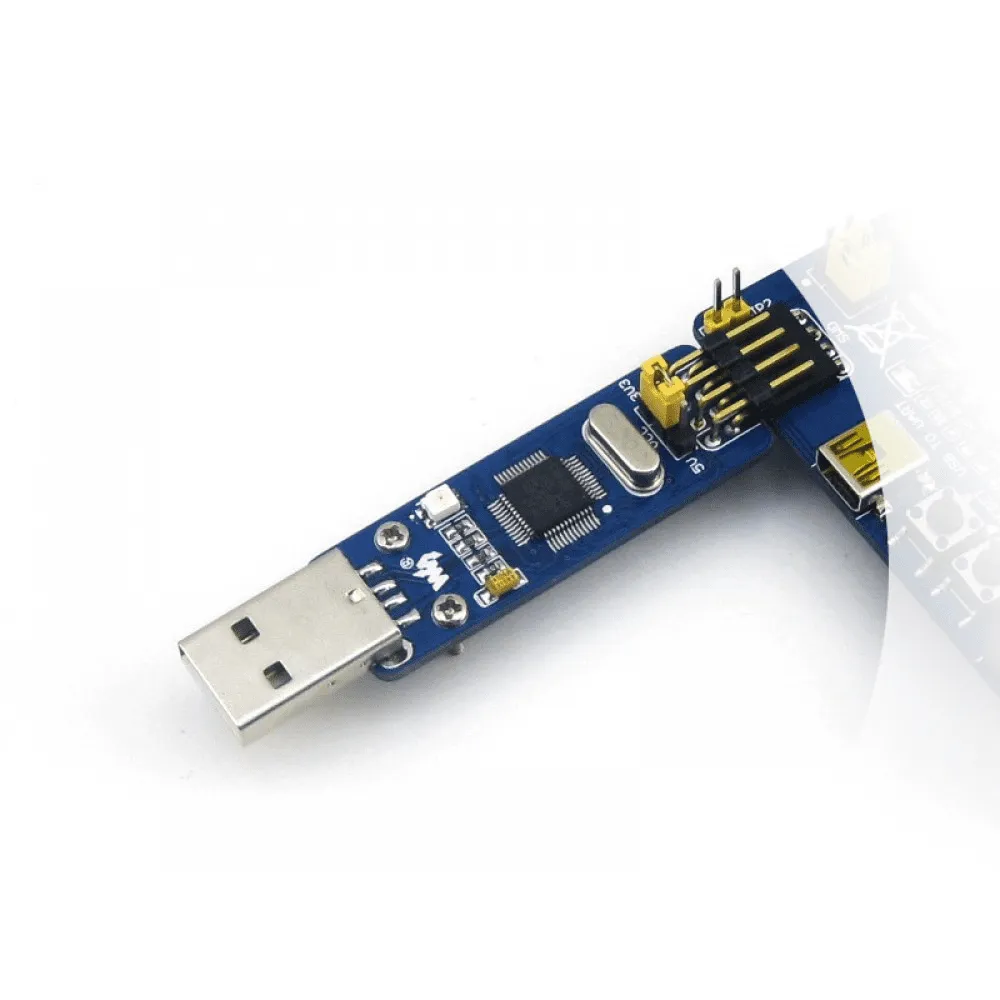

Waveshare ST-LINK/V2 Mini STM8/STM32 Debugger/Programmer - Image 3
SKU: SBCD-0796
📋 GST Invoice Available

Waveshare ST-LINK/V2 Mini STM8/STM32 Debugger/Programmer

₹1,079.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ST-LINK/V2 Mini is a compact, low-cost in-circuit debugger and programmer designed for STMicroelectronics STM8 and STM32 microcontrollers. Featuring a standard USB interface, it offers dual 3.3V/5V outputs and automatic firmware upgrades for broad device support.

Features

  • Compact ST-LINK/V2 (mini) for STM8 and STM32 in-circuit debugging.
  • Supports SWIM interface for STM8 and SWD interface for STM32 microcontrollers.
  • Features dual voltage output (3.3V/5V) for versatile target power.
  • Onboard 500mA self-recovery fuse enhances circuit protection.
  • Firmware is automatically upgradable for future device compatibility.

Out of stock

Description

The Waveshare ST-LINK/V2 Mini serves as an essential, cost-effective in-circuit debugger and programmer for development with STMicroelectronics STM8 and STM32 microcontrollers. Its compact single-board design integrates seamlessly into various development setups, providing reliable flashing and debugging capabilities directly from a PC via a standard USB connection.

This tool facilitates robust interaction with your target applications, connecting to STM8 devices through the SWIM interface and STM32 devices via the SWD interface. It offers a broad operating voltage range from 1.65V to 5.5V, making it compatible with a wide array of MCU power domains. Designed for ease of use, the ST-LINK/V2 Mini automatically updates its firmware, ensuring support for the latest STMicroelectronics devices and toolchains.

Key Features

  • Dedicated in-circuit debugger/programmer for STM8 and STM32 microcontrollers.
  • Incorporates a 500mA self-recovery fuse for robust short-circuit protection.
  • Provides dual voltage outputs (3.3V and 5V) to power target circuits during debugging.
  • Direct connection to PC via a standard USB interface, simplifying setup.
  • Firmware supports automatic upgrades to ensure compatibility with new devices and updates.
  • Compatible with a wide range of STM8 and STM32 device families.

Applications

  • In-circuit debugging and programming of STM8 microcontrollers via SWIM interface.
  • In-circuit debugging and programming of STM32 microcontrollers via SWD interface.
  • Firmware development and flashing for embedded systems utilizing STMicroelectronics MCUs.
  • Prototyping and testing of STM8/STM32-based hardware designs.

Technical Specifications

Item TypeProgrammer, Debugger
Voltage Range (Target VCC)1.65V - 5.5V
Debug InterfaceSWIM (for STM8), SWD (for STM32)
LED IndicatorDual-color LED
Circuit Protection500mA Self-recovery Fuse

Frequently Asked Questions

What microcontrollers are supported by the Waveshare ST-LINK/V2 Mini?

This compact debugger/programmer is specifically designed to support a wide range of STMicroelectronics microcontrollers, including both STM8 series devices via the SWIM interface and STM32 series devices through the SWD interface. Its firmware is also automatically upgradable to ensure compatibility.

What voltage outputs does the ST-LINK/V2 Mini provide for target systems?

The ST-LINK/V2 Mini offers dual voltage outputs, providing both 3.3V and 5V. This feature allows it to power and debug target circuits with varying power requirements, enhancing its versatility across different microcontroller development boards and projects and simplifying setups.

How does the ST-LINK/V2 Mini connect to a PC and target board?

It connects to a PC via a standard USB interface for power and data communication. For target boards, it uses a 4-pin custom connector cable. The connection utilizes the SWIM interface for STM8 and the SWD interface for STM32 for in-circuit debugging and programming.

Does the ST-LINK/V2 Mini offer any protection features?

Yes, the device includes an onboard 500mA self-recovery fuse. This crucial protection mechanism helps prevent damage to both the ST-LINK/V2 Mini itself and the connected target microcontroller application in the event of an accidental short circuit or overcurrent.

Package Includes

  • 1 × ST-Link/V2 (mini) programmer/debugger
  • 1 × 4-pin custom connector cable
  • 1 × USB Type-A plug to receptacle cable

Additional Information

Weight 0.079 kg
Dimensions 12 × 6 × 3 cm
