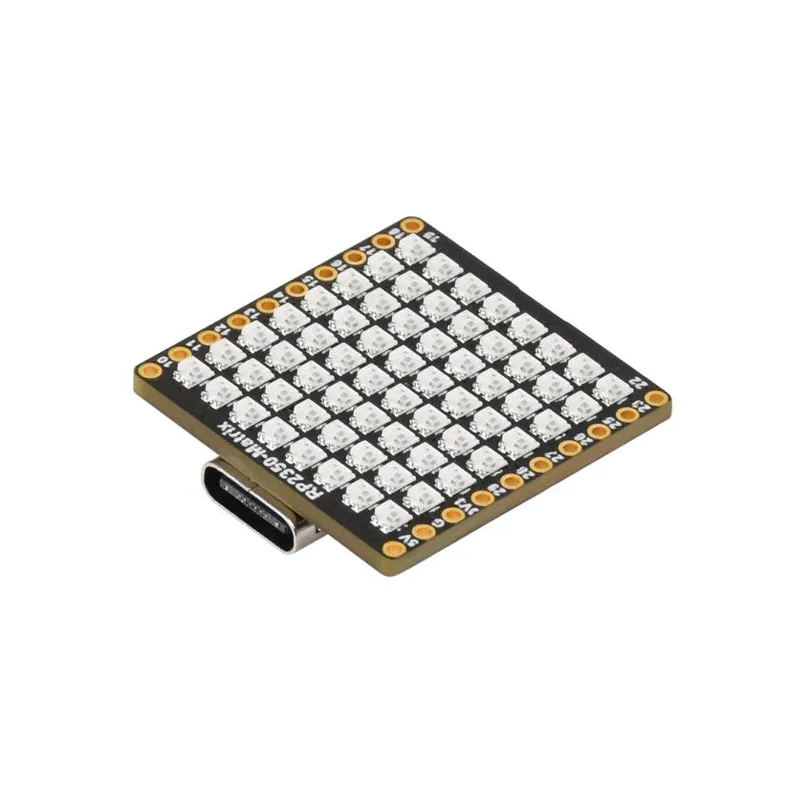

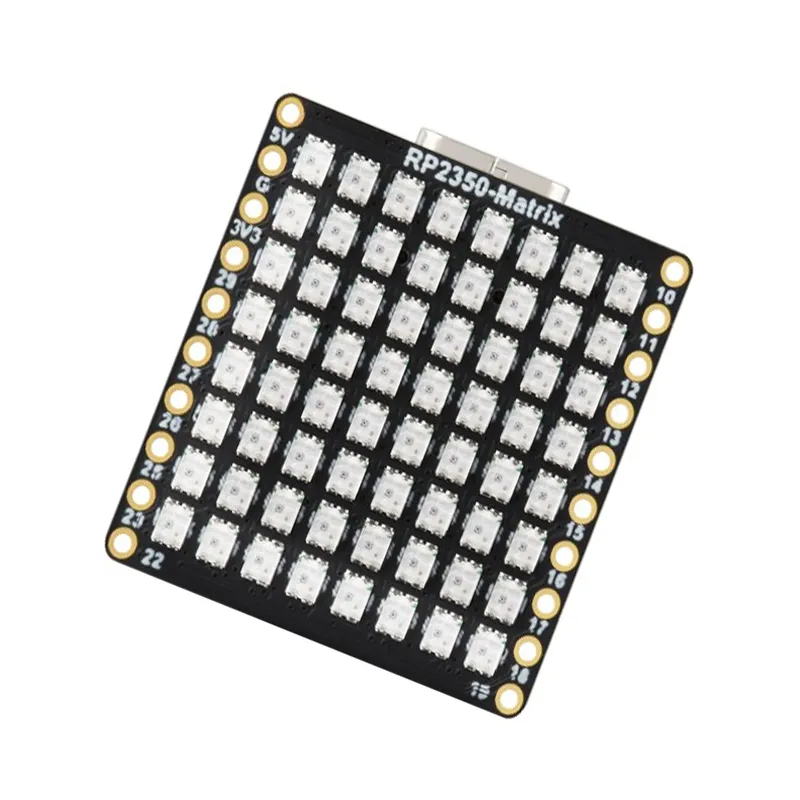

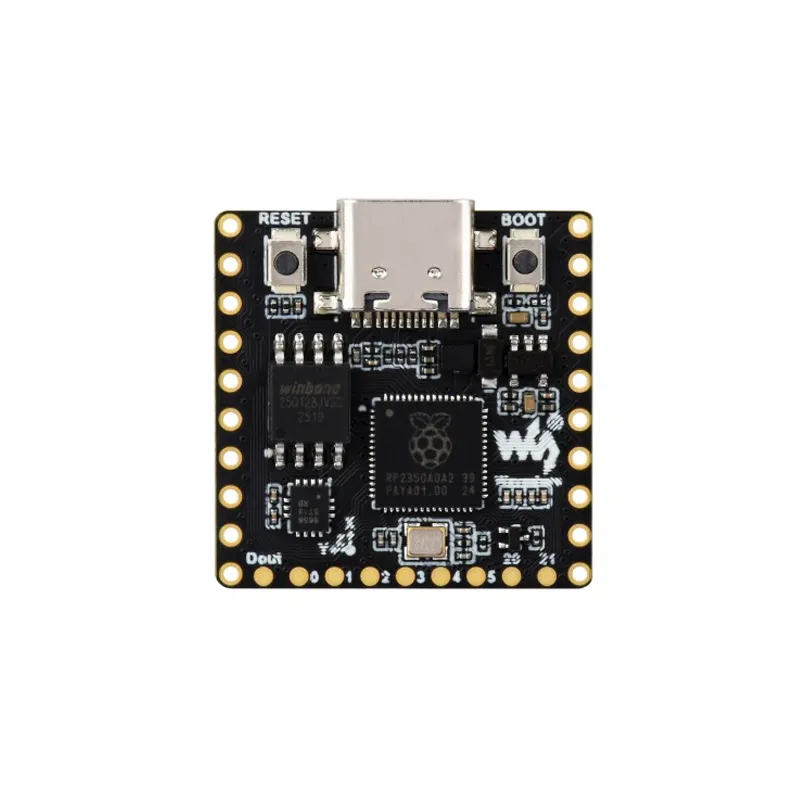

Waveshare RP2350-Matrix Board w/ IMU & 8x8 RGB Matrix
The Waveshare RP2350-Matrix is a compact microcontroller development board featuring the dual-core RP2350A, an onboard 6-axis IMU, and an 8×8 RGB LED matrix. Ideal for embedded AI, robotics, and interactive art, it supports C/C++, Arduino IDE, and MicroPython for versatile development.
Features
- Features the dual-core RP2350A microcontroller (Arm Cortex-M33 & RISC-V).
- Integrated QMI8658 6-axis IMU for motion sensing applications.
- Onboard 8×8 RGB LED matrix for vibrant visual feedback.
- Equipped with 25 multifunction GPIOs and USB Type-C for power and programming.
- Supports a wide range of development tools including C/C++, Arduino IDE, and MicroPython.
Out of stock
The Waveshare RP2350-Matrix is a compact yet powerful microcontroller development board engineered for makers, educators, and embedded systems developers. At its core is the RP2350A microcontroller, boasting a unique dual-core, dual-architecture design that integrates both an Arm Cortex-M33 and a RISC-V processor. This robust processing capability is complemented by an onboard 8×8 RGB LED matrix for dynamic visual feedback and an integrated QMI8658 6-axis IMU (Inertial Measurement Unit) for precise motion sensing and orientation detection, making it ideal for interactive and responsive projects.
Designed for versatility, the board offers 25 multifunction GPIO pins, extensive peripheral support, and convenient drag-and-drop programming via its USB Type-C interface, enhancing ease of use for beginners while providing sufficient power for advanced applications. With 16MB of onboard Flash memory and flexible power options, the RP2350-Matrix is a reliable platform for prototyping and building diverse projects, from embedded AI experiments and robotics control to creative interactive art installations, balancing performance, flexibility, and cost-effectiveness.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 2.5 × 2.5 × 1.5 cm |
