Upside Down Labs NPG Lite Ninja Kit, 3CH BioAmp EEG/EMG/ECG with ESP32 & VibZ (WiFi/BLE)
The NPG Lite Ninja Kit is a fully assembled, 3-channel wireless biopotential acquisition system for recording ECG, EMG, EEG, and EOG signals. It integrates an ESP32 for WiFi/BLE connectivity and includes the VibZ Playmate for haptic and auditory feedback, making it ready for rapid prototyping with Arduino, Raspberry Pi, and the Chords software suite.
Features
- 3-channel biopotential input for ECG, EMG, EEG, and EOG signal acquisition.
- Wireless ESP32 core provides dual-mode WiFi and Bluetooth Low Energy (BLE) connectivity.
- Integrated VibZ Playmate module delivers real-time haptic vibration and buzzer audio feedback.
- Plug-and-play design includes 24 gel electrodes, snap/alligator cables, and a 3D-printed protective case.
- Features QWIIC (I2C) and integrated electrode connector ports for easy sensor and module expansion.
Out of stock
The NPG Lite Ninja Kit is a professional-grade biopotential signal acquisition platform designed for researchers, developers, and makers. It utilizes a high-input-impedance, low-noise amplifier stage across three differential channels (A0, A1, A2) to capture microvolt-level signals from the human body with precision. The integrated ESP32 microcontroller handles wireless data transmission via WiFi or BLE, enabling cable-free operation and real-time streaming to compatible software like the Chords suite.

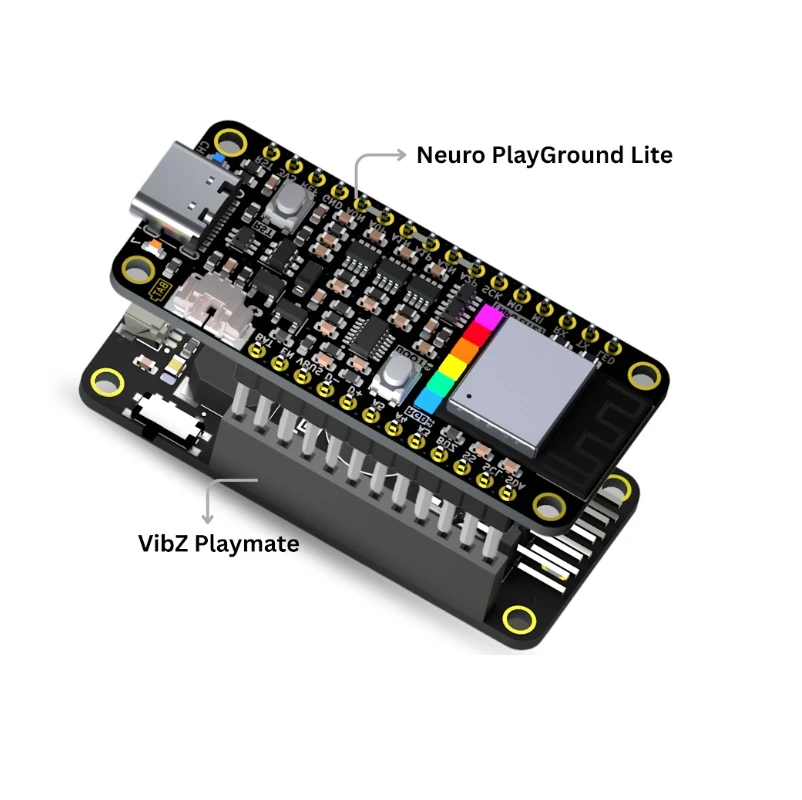

Central to its interactive design is the included VibZ Playmate board, which provides immediate physical and auditory feedback mechanisms—a vibration motor and a buzzer—directly controllable by the acquired biosignals. This feature is essential for creating closed-loop Brain-Computer Interface (BCI) and Human-Computer Interaction (HCI) applications. The system arrives fully assembled with a pre-installed 350mAh Li-Po battery, USB-C charging, and an ON/OFF switch, requiring no soldering for initial use.
Additional Information
| Weight | 0.221 kg |
|---|---|
| Dimensions | 18 × 15 × 6 cm |
