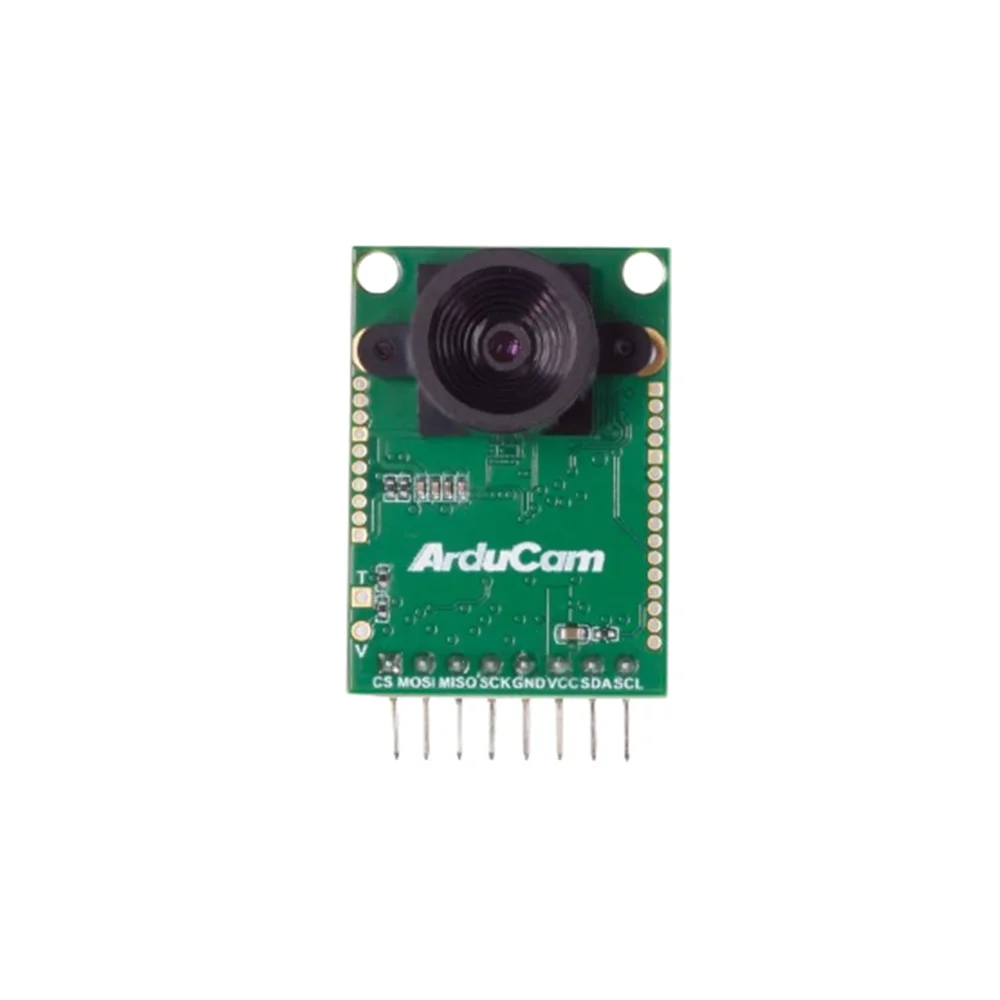

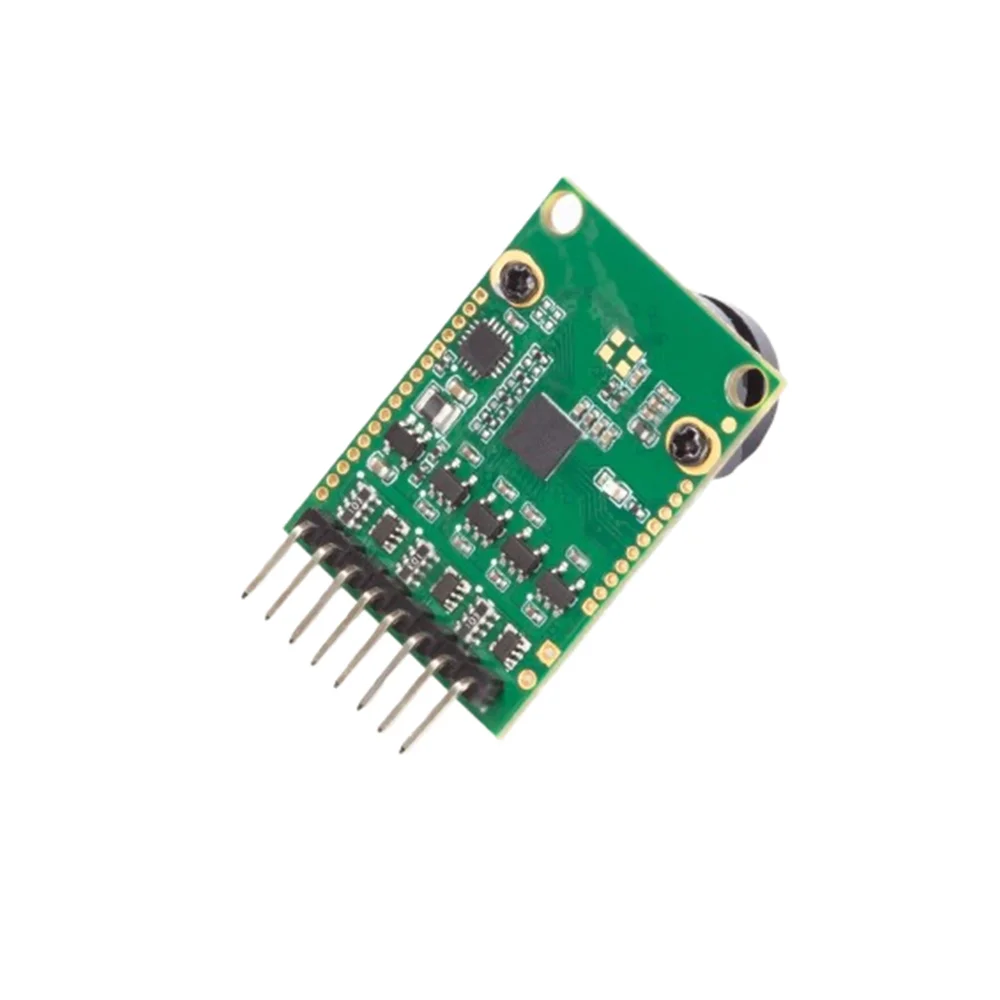

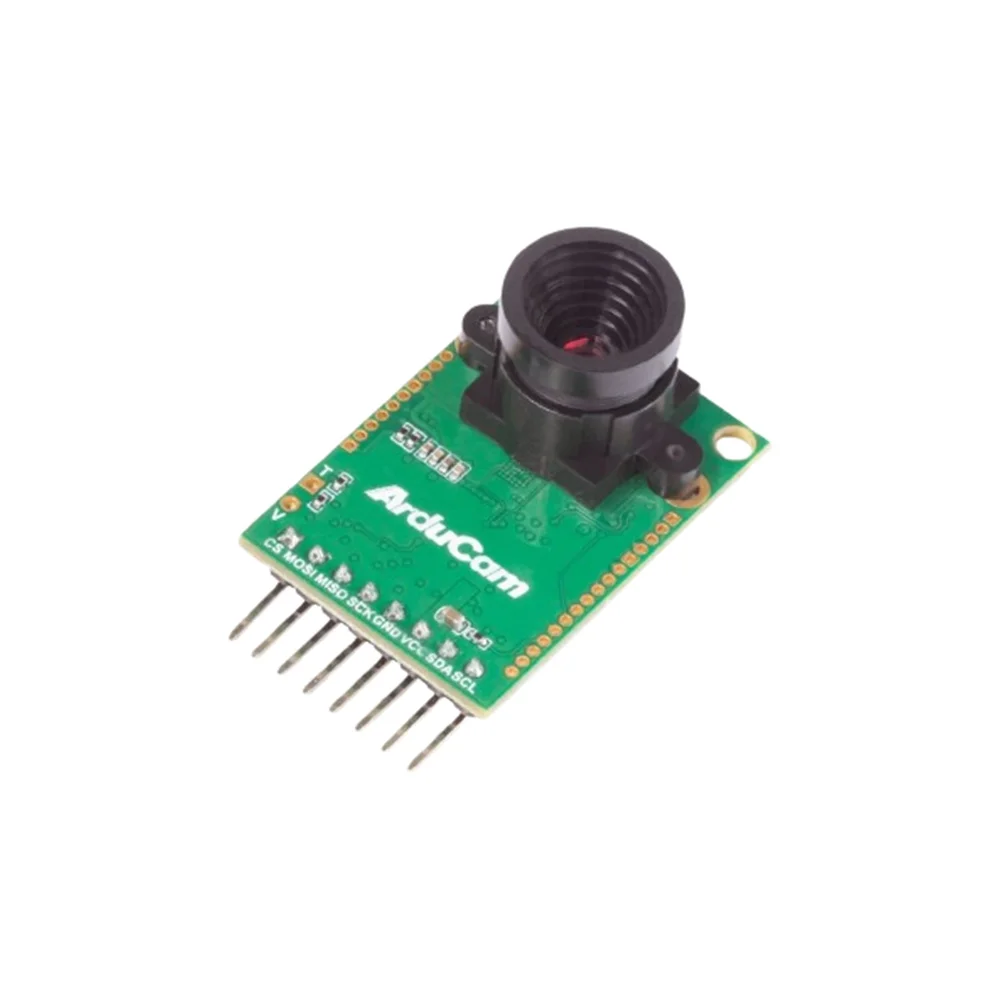

Arducam 5MP Mini SPI Camera Module w/ M12 Lens Mount
The Arducam 5MP Mini SPI Camera Module is a compact imaging solution for Arduino, Raspberry Pi Pico, ESP32, and STM32 platforms, delivering JPEG output via SPI/I2C interfaces with low 0.7W max power consumption for embedded vision projects.
Features
- 5MP CMOS sensor captures high-quality 2592 x 1944 resolution JPEG images.
- SPI and I2C interfaces ensure simple integration with resource-limited MCUs like Arduino and ESP32.
- Compact 34 x 24 mm form factor with M12 lens mount supports interchangeable optics.
- Low 0.7W max power consumption is ideal for battery-powered IoT and portable applications.
- Open-source SDK and multi-camera support streamline development for machine vision and robotics.
Out of stock
The Arducam 5MP Mini SPI Camera Module integrates a 5-megapixel CMOS image sensor into a miniature 34 x 24 mm board, providing a streamlined vision solution for microcontroller platforms. It communicates via SPI at speeds up to 8MHz alongside an I2C control interface, efficiently transferring JPEG-encoded image data to hosts like the Raspberry Pi Pico, ESP32, or STM32 with minimal processing overhead.
Designed for embedded integration, the module features an M12 lens mount for flexible optics selection, a fixed-focus lens with a 50-degree diagonal field of view, and an internal 8MB frame buffer. Its dual 3.3V/5V operating voltage support and low power draw make it suitable for deployment in space-constrained, battery-operated IoT nodes, robotics, and monitoring systems where reliable image capture is required.
Additional Information
| Weight | 0.019 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
