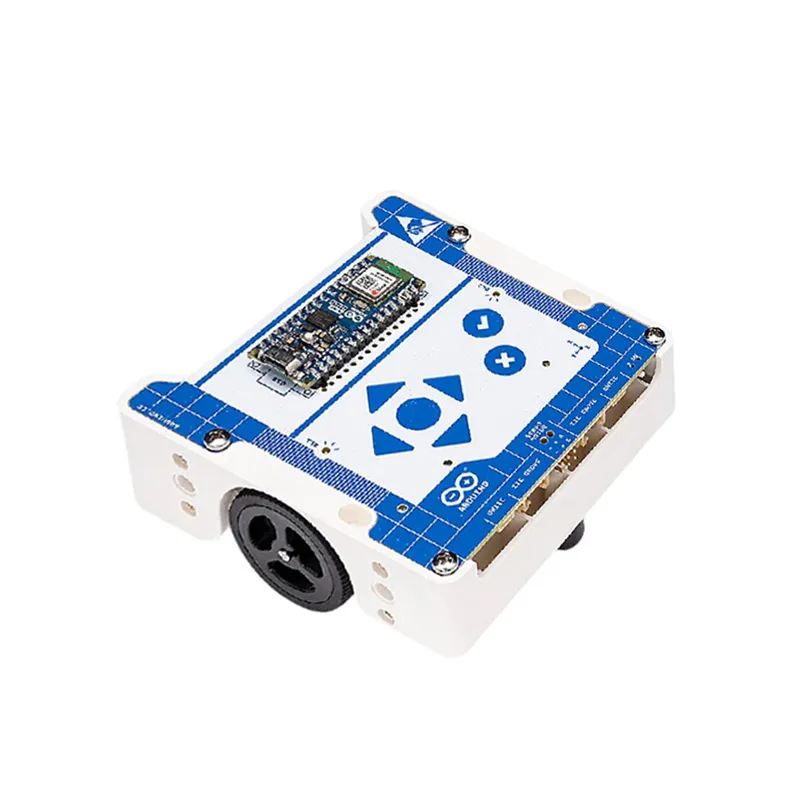

Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32

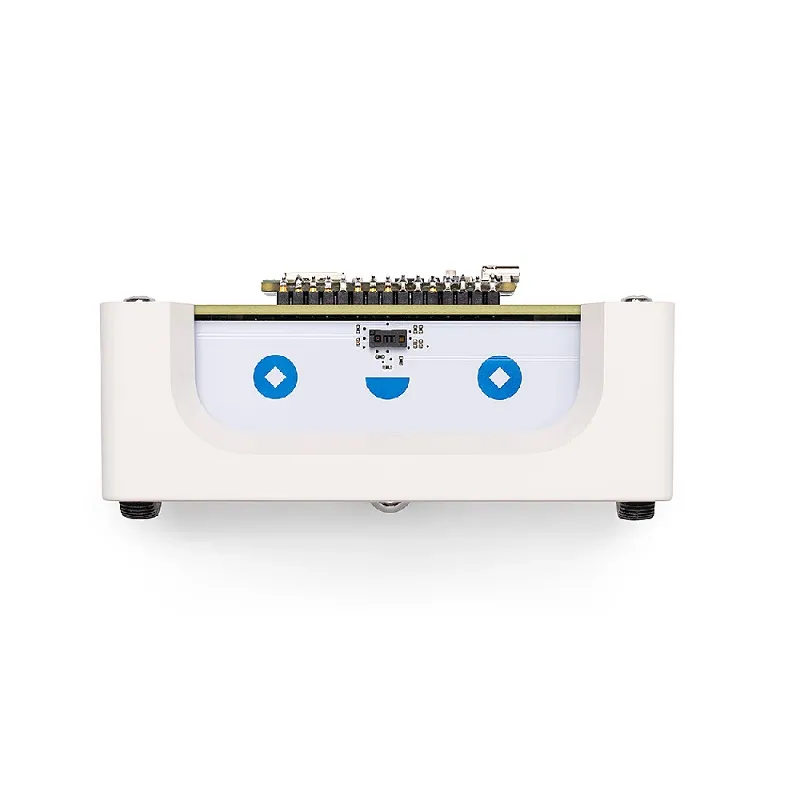

Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32 - Image 2

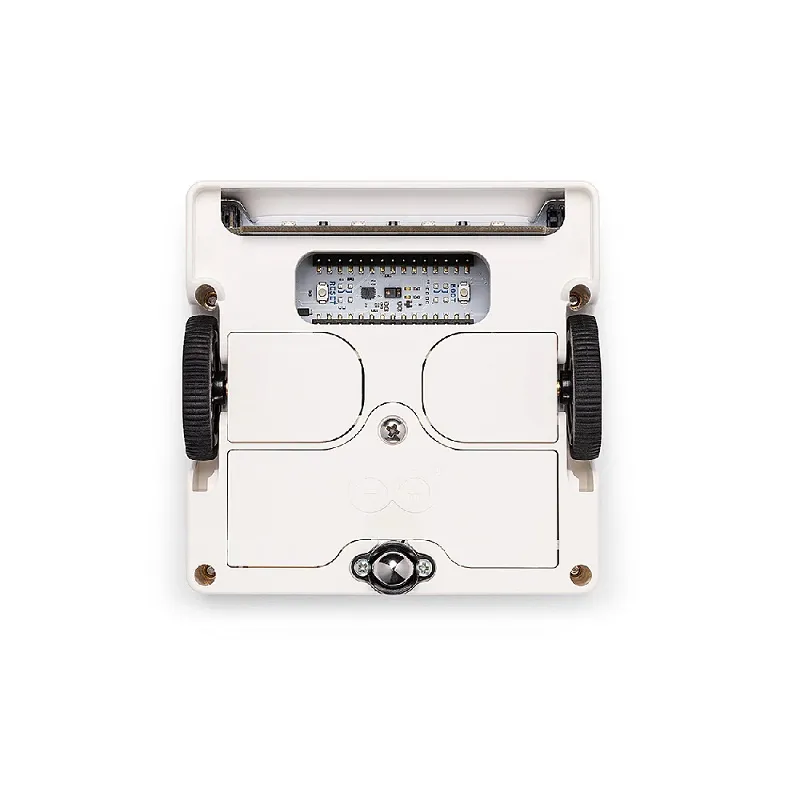

Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32 - Image 3
Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32 - Image 4
Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32 - Image 5
SKU: SBCD-0674
📋 GST Invoice Available

Arduino Alvik Robot AKX00066 - Educational ESP32 & STM32

₹14,219.00 (Inclusive of all taxes)
Out of Stock

The Arduino Alvik Robot AKX00066 is an innovative educational platform, powered by an Arduino Nano ESP32 main controller and an onboard STM32 Arm Cortex-M4, designed for teaching programming and robotics. It features Wi-Fi and Bluetooth LE connectivity, supporting MicroPython, Arduino, and block-based programming for various skill levels.

Features

  • Powered by Arduino Nano ESP32 with u-blox NORA-W106 (ESP32-S3) for robust processing and wireless capabilities.
  • Integrates an STM32 Arm Cortex-M4 32-bit core for efficient on-board control and enhanced performance.
  • Offers versatile programming options including MicroPython, Arduino, and future block-based coding for accessibility.
  • Equipped with Wi-Fi and Bluetooth LE for comprehensive connectivity in educational and DIY robotics projects.
  • Features a rich array of sensors (ToF, RGB Color, Gyro-Accelerometer, Line Follower) and outputs (RGB LEDs, 6V Motors).

Out of stock

Description

The Arduino Alvik is an innovative educational robot developed by Arduino, designed to foster learning in programming and robotics across various educational levels. It offers a hands-on, interactive experience that encourages creativity, problem-solving, and computational thinking. Alvik simplifies coding and complex robot projects, enabling users of all levels to immerse themselves in the exciting world of programming and robotics.

This cross-discipline tool bridges the gap between education and the future of robotics, aligning with CSTA and NGSS-aligned free courses. Its versatile design makes learning and creating more accessible and fun than ever before, suitable for beginners to advanced learners. The robot’s compact size and rechargeable, replaceable battery ensure continuous learning sessions in various environments.

Key Features

  • Powered by the versatile Arduino Nano ESP32, simplifying robotics learning with comprehensive programming suite.
  • Supports MicroPython and Official Arduino language, with planned block-based coding for younger students.
  • Compact and portable design, ideal for learning environments from classrooms to home workshops.
  • Features a rechargeable and easy-to-replace battery, ensuring continuous operation and extended robot lifespan.
  • Main controller is Arduino Nano ESP32 with u-blox NORA-W106 (ESP32-S3), 8 MB RAM, 16 MB external FLASH.
  • Includes inputs like Time of Flight distance sensor (up to 350 cm), RGB color sensor, 6-axis Gyroscope-Accelerometer, and 3x line follower array.
  • Provides outputs such as 2x RGB LEDs and 6V motors with 96 rpm no-load speed.
  • Offers extensibility via 4x LEGO Technic connectors, 8x M3 screw connectors, servo motor, I2C Grove, and I2C Qwiic interfaces.

Applications

  • Educational Robotics: Teaching concepts of robotics and programming in schools and workshops.
  • DIY Projects: Ideal for hobbyists exploring advanced robotics projects.
  • Sensor Integration Experiments: Utilizing onboard sensors for experiments involving object detection, color sensing, and motion tracking.

Technical Specifications

Item TypeKit
Model No. / NameAKX00066
Main ControllerArduino Nano ESP32 (u-blox NORA-W106 ESP32-S3)
On-board CoreSTM32 Arm Cortex-M4 32 Bit
Processor SpeedUp to 240 MHz (ESP32-S3)
RAM (Nano ESP32)8 MB
ROM (ESP32-S3)384 kB
SRAM (ESP32-S3)512 kB
External Flash16 MB
ConnectivityWi-Fi, Bluetooth 5.0 (supports Bluetooth 5.1 dual mode)
Input SensorsTime of Flight (up to 350 cm), RGB Color, 6-axis Gyro-Accelerometer, Line follower Array (x3), Touchable Buttons (x7)
Outputs2x RGB LEDs, 6V Motors (96 rpm no-load speed, 70 mA no-load current)
ExtensionsLEGO Technic connectors (x4), M3 screw connectors (x8), Servo motor port, I2C Grove, I2C Qwiic

Frequently Asked Questions

What is the primary controller and secondary core used in the Arduino Alvik Robot?

The Alvik Robot is primarily controlled by an Arduino Nano ESP32, which utilizes a u-blox NORA-W106 (ESP32-S3) module. Additionally, it incorporates an on-board STM32 Arm® Cortex®-M4 32-bit core for dedicated real-time tasks and enhanced system performance, making it a versatile platform for complex robotics.

Which programming languages and development environments are supported by the Alvik?

The Arduino Alvik supports multiple programming languages, including MicroPython and the Official Arduino language. It is also designed for future integration of block-based programming, making it accessible for various skill levels. Developers can use the Arduino IDE or MicroPython-compatible tools.

What connectivity options and sensors are integrated into the Arduino Alvik?

The Alvik features both Wi-Fi and Bluetooth LE for robust wireless communication. It comes equipped with a Time of Flight distance sensor, an RGB color sensor, a 6-axis Gyroscope-Accelerometer, and a 3-element line follower array, providing comprehensive environmental sensing capabilities for robotics projects.

Can the Alvik Robot be expanded with additional hardware?

Yes, the Arduino Alvik is designed for expandability. It includes four LEGO® Technic™ compatible connectors, eight M3 screw connectors for custom mounts, a dedicated servo motor port, and both I2C Grove and I2C Qwiic interfaces, allowing for easy integration of a wide range of external modules and sensors.

What are the power requirements and battery features of the Arduino Alvik?

The Arduino Alvik robot is powered by a rechargeable and easily replaceable battery (not included in the package). This design ensures continuous learning sessions and extends the robot's overall lifespan by allowing battery replacement when capacity degrades, reducing the need to replace the entire unit.

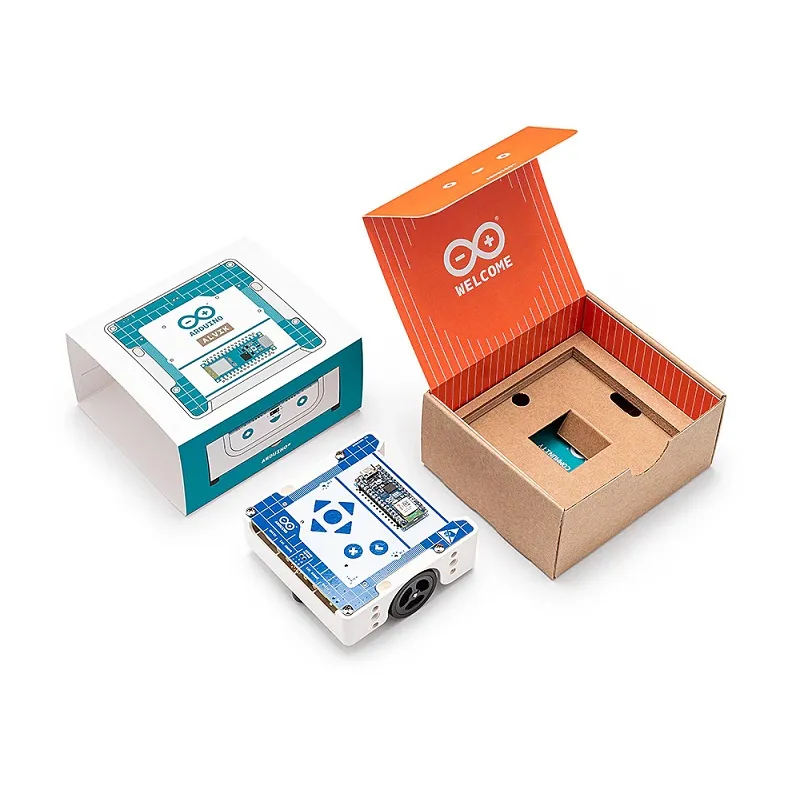

Package Includes

  • 1 x Official Arduino Alvik Robot AKX00066

Additional Information

Weight 0.395 kg
Dimensions 20 × 13 × 10 cm
