Waveshare ESP32 Serial Bus Servo Driver HAT

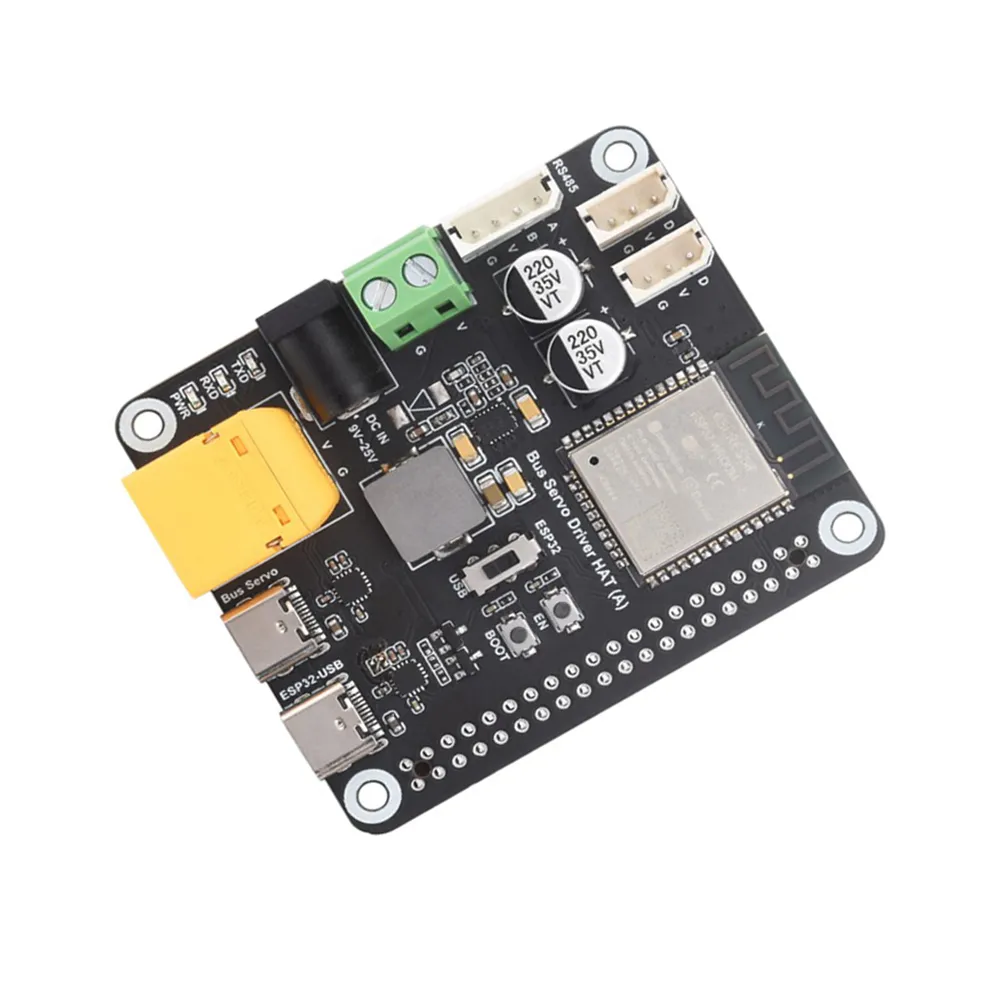

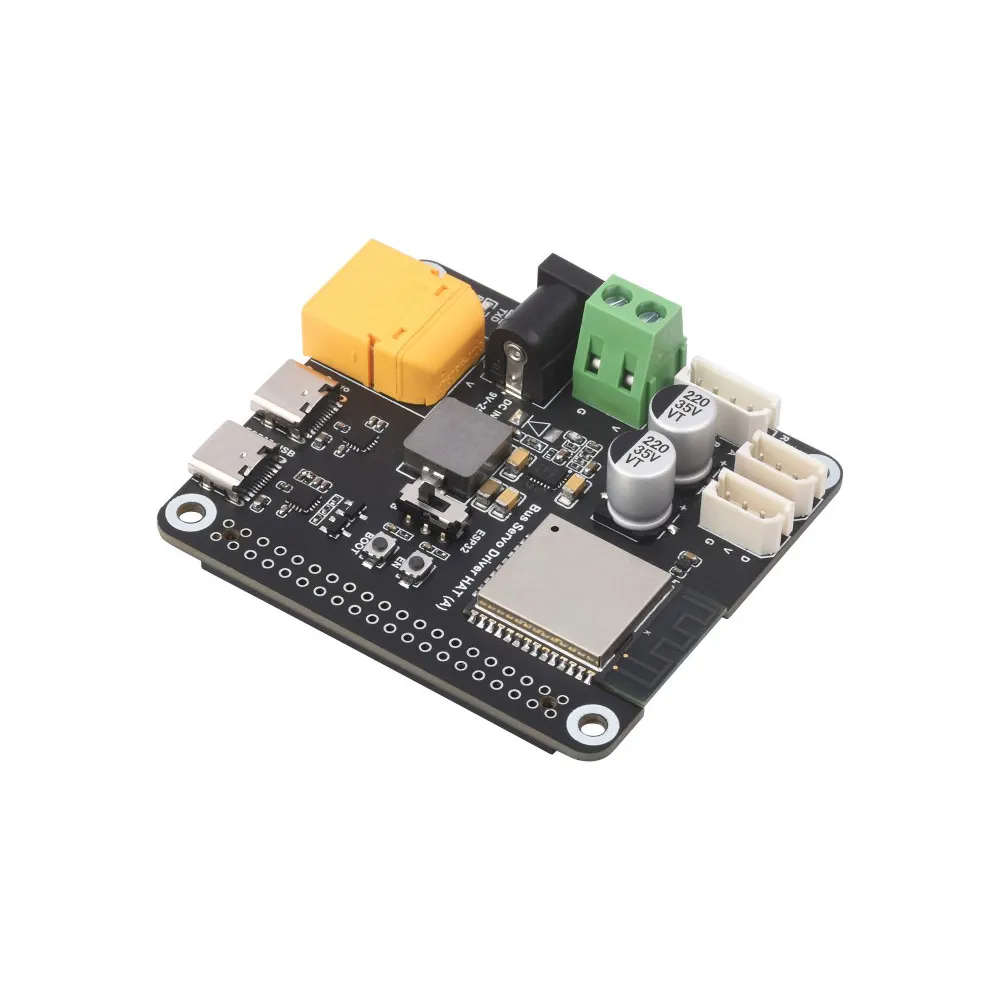

This HAT integrates an ESP32-WROOM-32 with a serial bus servo control circuit, providing RS485 and TTL interfaces. It enables wired or 2.4G WiFi control of up to 253 ST/RSBL servos, making it ideal for advanced robotics and automation projects with Raspberry Pi or standalone applications.
Features
- Based on ESP32-WROOM-32 module for robust processing and wireless control.
- Supports up to 253 ST/RSBL serial bus servos simultaneously.
- Offers wired (UART, USB-C) and 2.4G WiFi communication options.
- Wide 9-25V power input, matching connected servo voltage.
- Designed for Raspberry Pi integration with 5V buck regulator and UART communication.
Out of stock
This Waveshare driver board is engineered for precise control of serial bus servos, featuring an integrated ESP32-WROOM-32 and dedicated servo control circuitry. It provides both RS485 and TTL serial bus servo interfaces, allowing for flexible connectivity options in various robotics and automation contexts. The board supports both wired and wireless communication, leveraging the ESP32’s capabilities for diverse control scenarios.
Developers can utilize open-sourced control demos and a JSON communication interface, enabling direct control via USB from a host computer or through secondary development as a slave controller within larger projects. The system facilitates sending JSON-formatted commands to manage servo parameters like torque, speed, and position, while also receiving real-time feedback.
Designed for versatility, the HAT can seamlessly connect to a Raspberry Pi, providing power via its integrated 5V buck regulator and communicating through the GPIO UART interface for neat cable management. Its ability to control up to 253 ST/RSBL series serial bus servos simultaneously, coupled with a wide 9-25V input range, positions it as a powerful solution for complex multi-servo applications.
Additional Information
| Weight | 0.095 kg |
|---|---|

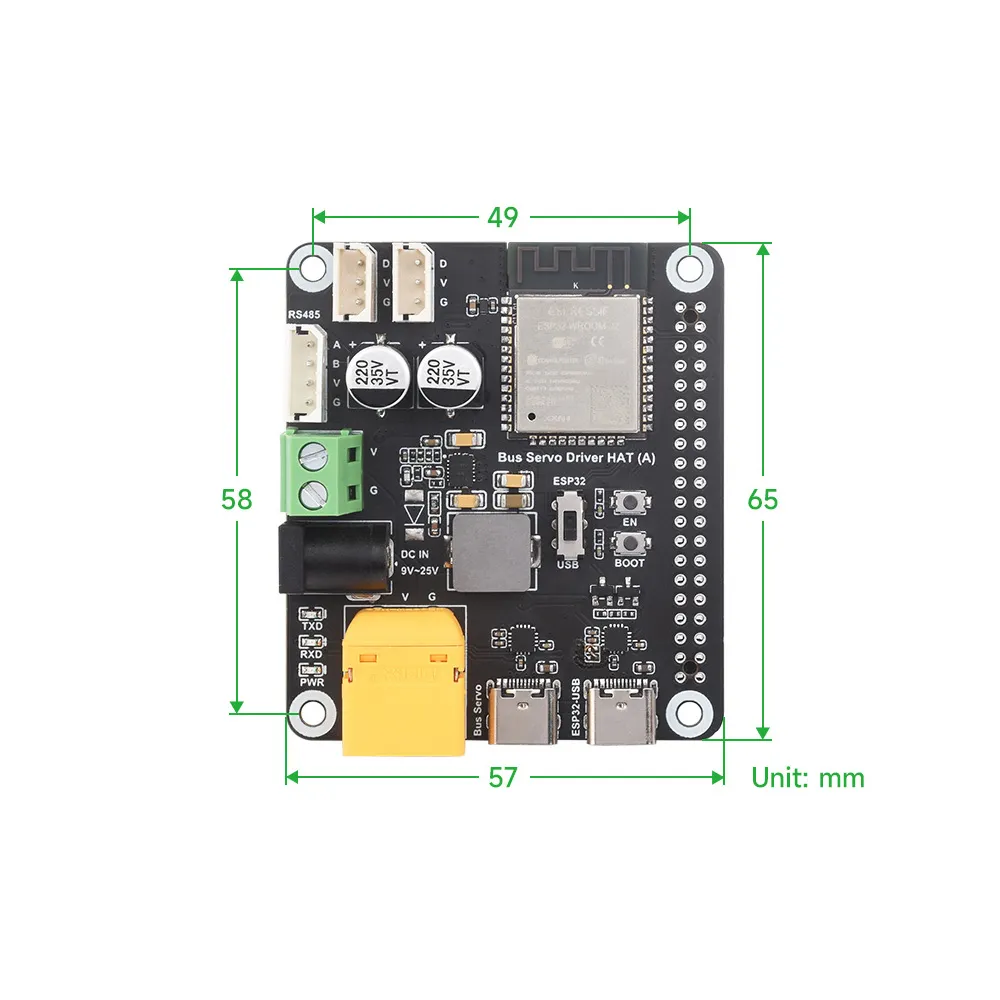

| Dimensions | 11 × 8 × 3 cm |
