Upside Down Labs NPG Lite Explorer Kit - 3-Channel BioAmp EEG/EMG/ECG with ESP32-C6 (WiFi/BLE)

₹9,829.00 (Inclusive of all taxes)
Out of Stock

The NPG Lite Explorer Kit is a comprehensive 3-channel biopotential acquisition system built around the ESP32-C6 for wireless connectivity (Wi-Fi/BLE/Zigbee/Thread). It is designed for prototyping and recording research-grade EEG, EMG, ECG, and EOG signals, integrating seamlessly with the Chords software suite for real-time visualization and analysis.

Features

  • 3-channel research-grade biopotential amplifier for EEG, EMG, ECG, and EOG signals.
  • Integrated ESP32-C6 microcontroller provides wireless connectivity via Wi-Fi, Bluetooth LE, Zigbee, and Thread.
  • Includes Proto Playmate prototyping module for custom circuit development without a separate breadboard.
  • Supports QWIIC connector for rapid sensor expansion and standard 2.54mm electrode header pins.
  • Complete kit includes electrodes, snap cables, alligator clips, and a LiPo battery cable for wearable applications.

Out of stock

Description

The NPG Lite Explorer Kit is an entry-level, all-in-one platform for acquiring and analyzing biopotential signals. It features a dedicated 3-channel bio-amplifier with high input impedance and configurable gain, optimized for capturing clean electrophysiological data from the human body. The integrated ESP32-C6 SoC handles wireless data transmission, enabling real-time streaming to the Chords web-based software for filtering, visualization, and analysis without complex setup.

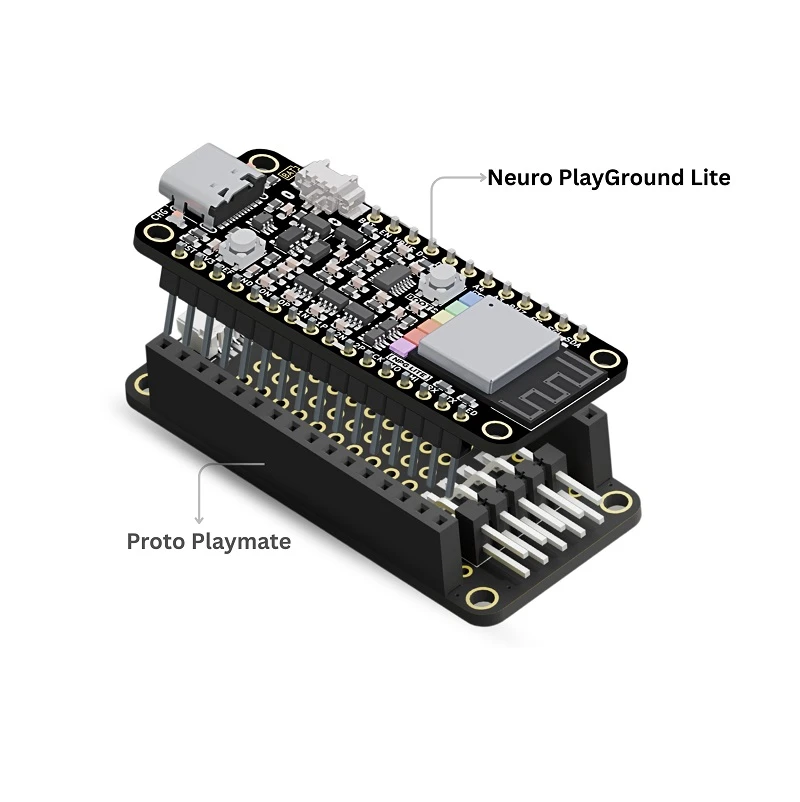

The kit is built on the Feather form-factor, offering a compact and power-efficient design suitable for wearable and mobile projects. The included Proto Playmate module provides a solderable prototyping area, allowing users to integrate custom signal conditioning circuits, additional sensors, or output actuators directly alongside the bio-amplifier, facilitating advanced BCI and HCI project development.

Key Features

  • Multi-Modal Biopotential Acquisition: Records high-fidelity ECG (heart), EMG (muscle), EEG (brain), and EOG (eye movement) signals from a single hardware platform.
  • Wireless Data Streaming: Leverages the ESP32-C6's multi-protocol radio (Wi-Fi 6, BLE 5.4, Zigbee, Thread) for flexible, cable-free data logging and real-time monitoring.
  • Integrated Prototyping Space: The Proto Playmate module eliminates the need for an external breadboard, enabling permanent, robust custom circuit integration.
  • Plug-and-Play Sensor Expansion: QWIIC (I2C) connector allows for effortless daisy-chaining of additional sensors like IMUs, environmental monitors, or haptic feedback drivers.
  • Professional-Grade Software Integration: Works seamlessly with the Chords data visualization suite for browser-based signal processing, filtering, and feature extraction.
  • Wearable & Portable Design: Feather form-factor and onboard LiPo battery management support untethered, body-worn applications in neuroscience and human-computer interaction research.
  • Complete Educational Kit: Includes all necessary electrodes, cables, and connectors to begin capturing signals immediately, ideal for workshops and self-paced learning.

Applications

  • Brain-Computer Interface (BCI) prototyping for neurogaming and assistive technology.
  • Muscle activity (EMG) monitoring for sports science, rehabilitation, and prosthetic control.
  • Electrocardiogram (ECG) heart rate variability analysis for fitness and wellness tracking.
  • Electrooculogram (EOG) signal capture for eye-tracking and drowsiness detection systems.
  • Educational workshops and neuroscience research requiring multi-modal biopotential data acquisition.

Technical Specifications

Channels Supported3 biopotential channels
Supported BiopotentialsECG, EMG, EOG, EEG
MicrocontrollerESP32-C6 (Wi-Fi 6, Bluetooth LE 5.4, Zigbee, Thread)
InterfaceQWIIC (I2C), 2.54mm electrode header pins
Prototyping ModuleProto Playmate (solderable prototyping area)
Power SourceLiPo battery (via JST PH connector) or USB-C
Form FactorFeather-compatible
Shipping Weight0.221 kg
Shipping Dimensions18 × 15 × 6 cm

Frequently Asked Questions

What biopotential signals can I record with this kit?

The NPG Lite kit is a versatile 3-channel bio-amplifier designed to record Electroencephalogram (EEG/brain waves), Electromyogram (EMG/muscle activity), Electrocardiogram (ECG/heart signals), and Electrooculogram (EOG/eye movements). The high-input impedance and configurable gain settings allow for research-quality acquisition of these low-amplitude signals from the human body.

How do I visualize and analyze the recorded data?

The kit is designed to stream data wirelessly via the ESP32-C6 to the Chords software suite. Simply connect the board to your Wi-Fi network, and you can visualize, filter (e.g., bandpass for EEG), and analyze the real-time biosignal data directly in a web browser without installing specialized desktop software, making it ideal for rapid prototyping and education.

Can I add other sensors or components to this setup?

Yes, expansion is straightforward. The onboard QWIIC (I2C) connector allows you to daisy-chain compatible sensors like IMUs, environmental sensors, or LED matrices. Furthermore, the included Proto Playmate module provides a solderable prototyping area to permanently integrate custom circuits, buttons, haptic drivers, or other components directly alongside the bio-amplifier.

Is this kit suitable for wearable or portable projects?

Absolutely. The board uses the compact Feather form-factor and includes a JST PH connector for a LiPo battery, enabling untethered operation. Its low-power design and wireless capabilities make it well-suited for body-worn applications, mobile data logging, and field-based research in human-computer interaction or physiological monitoring.

Package Includes

  • 1 x NPG Lite BioAmp Board (ESP32-C6)
  • 1 x Proto Playmate Prototyping Module
  • 12 x Disposable Electrodes
  • 7 x Snap Cables (for electrode connection)
  • 5 x Alligator Cables
  • 1 x Battery Cable (JST PH for LiPo)

Additional Information

Weight 0.221 kg
Dimensions 18 × 15 × 6 cm
