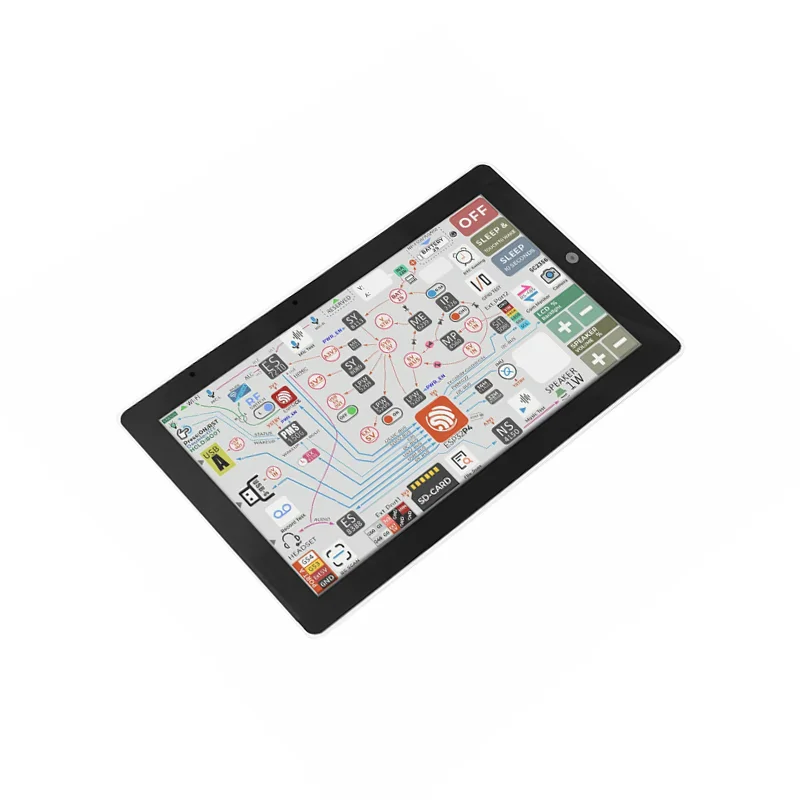

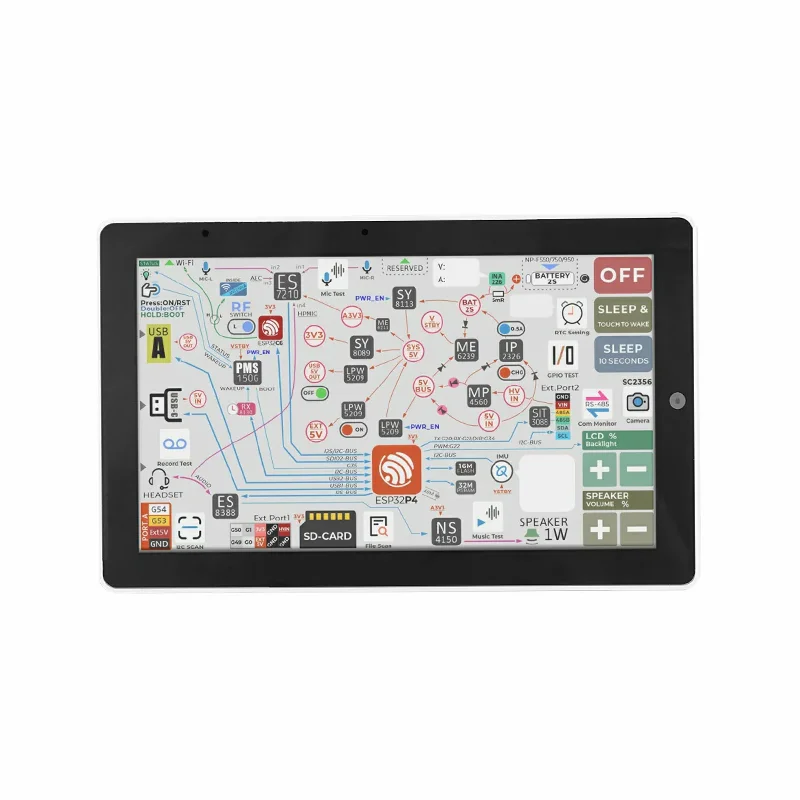

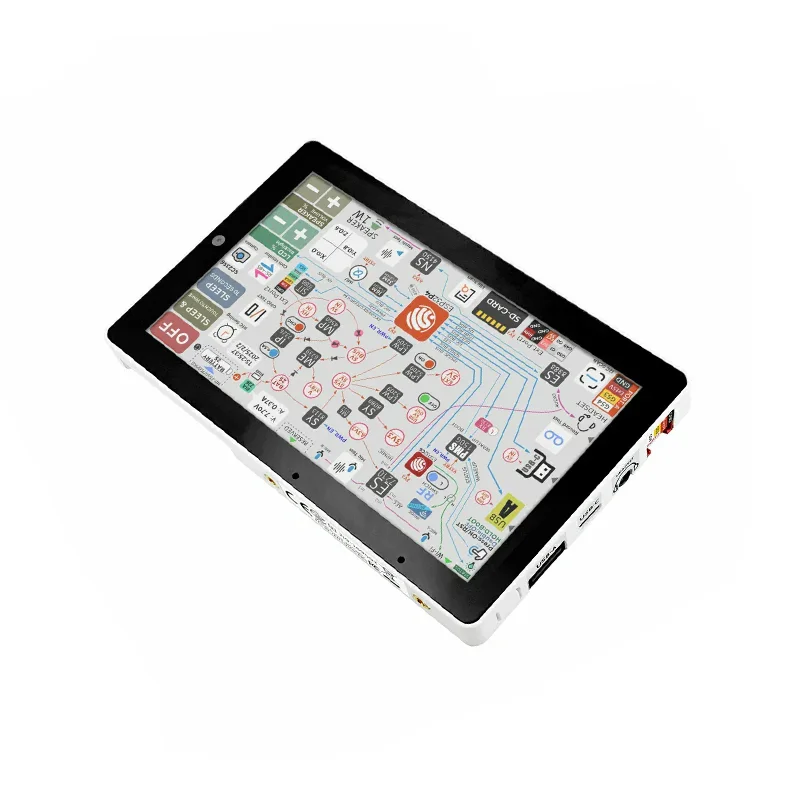

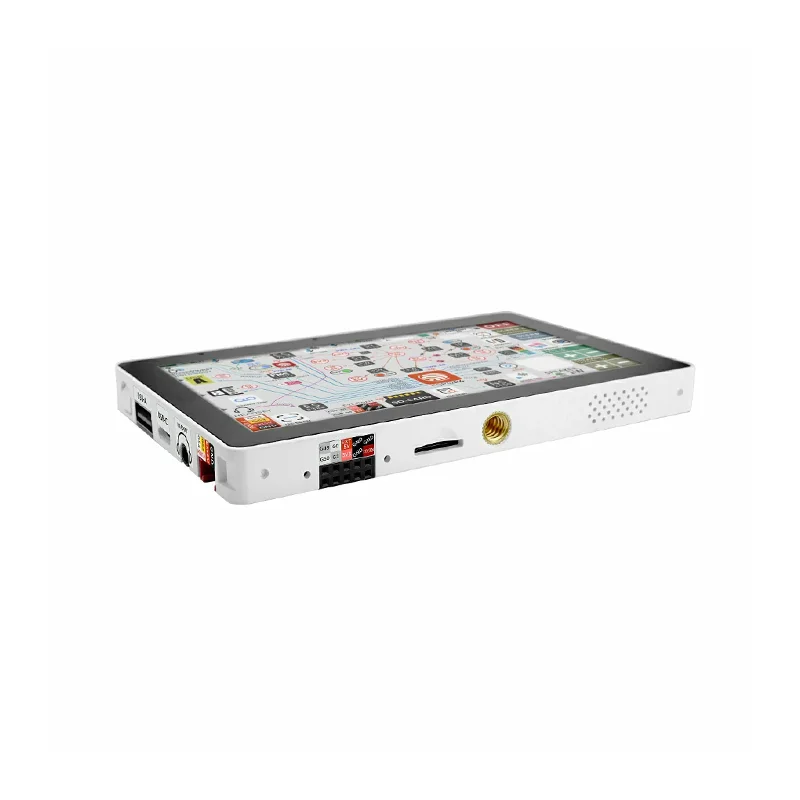

M5Stack Tab5 IoT Development Kit (ESP32-P4) w/ 5-Inch Touchscreen

The M5Stack Tab5 is fully supported by the official Espressif ESP-IDF framework, which provides comprehensive access to its dual-core RISC-V processor and peripherals. You can also use Arduino Core for ESP32 via the Arduino IDE or PlatformIO for a more familiar environment. For the integrated display and UI elements, M5Stack's own UIFlow (based on MicroPython) offers a block-based graphical programming option, making it accessible for rapid prototyping and educational purposes.

For portable operation, you need to connect a compatible 7.4V 2S Li-ion battery pack (like the NP-F550) to the dedicated battery connector on the board. For bench testing, you can power the Tab5 via its USB-C port, which supports USB Power Delivery (PD) for sufficient current. Ensure your power supply provides stable voltage, as the internal circuitry manages step-down conversion for the core components. The kit does not include a battery, so you must source one separately for untethered use.

Yes, the ESP32-C6-MINI-1U module on the Tab5 supports concurrent operation of Wi-Fi 6 (802.11ax) and Bluetooth Low Energy 5.0. For Zigbee or Thread networks, the radio can be configured to operate on the 2.4 GHz band, but it typically runs one IEEE 802.15.4-based protocol (Zigbee or Thread) at a time alongside Wi-Fi or BLE, thanks to its multi-protocol scheduler. You must manage network stacks appropriately in your firmware using ESP-IDF's supported examples for each protocol.
