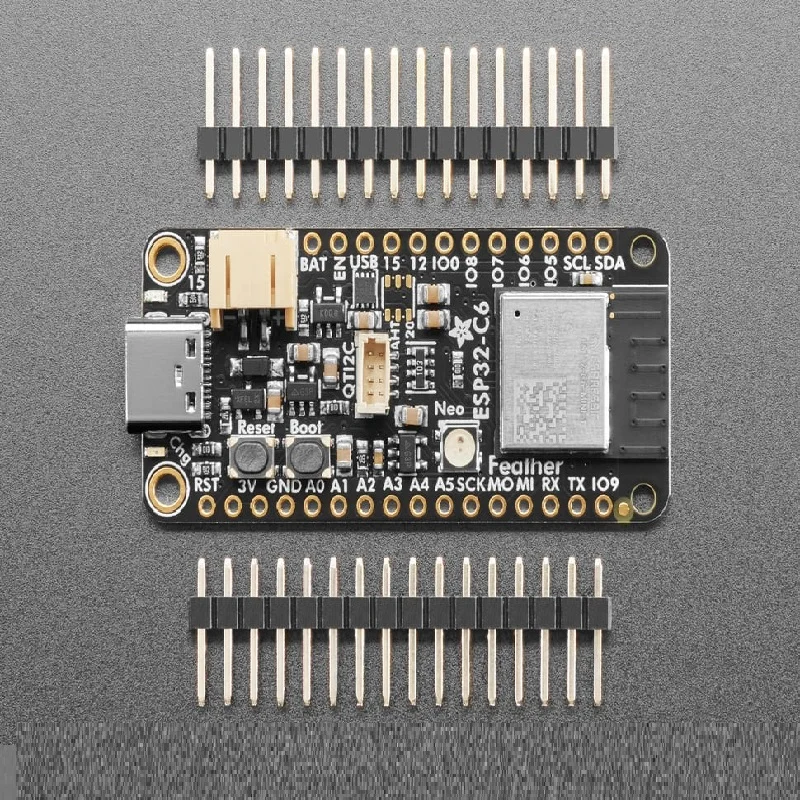

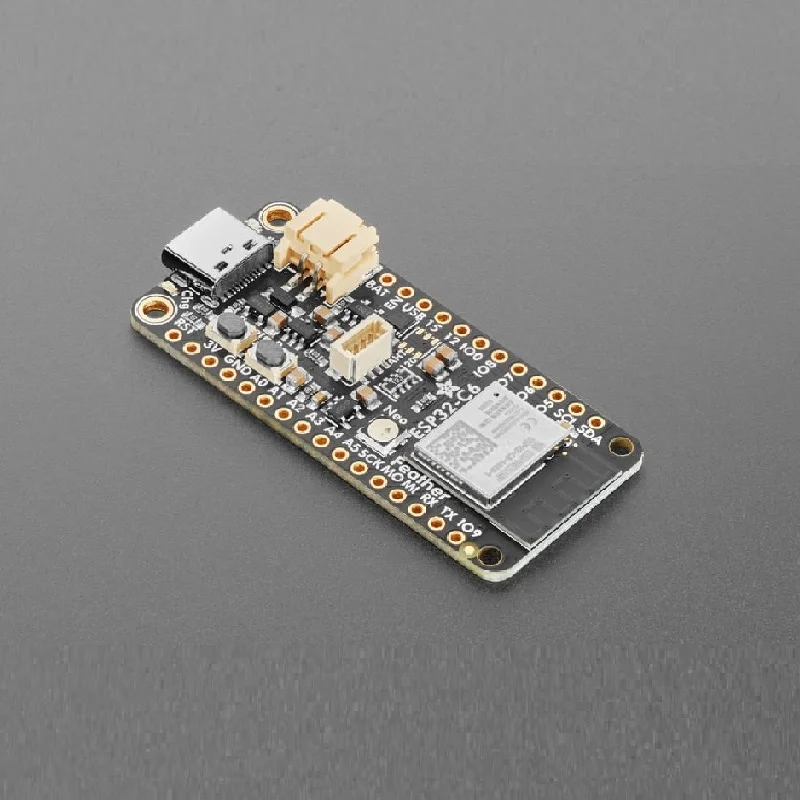

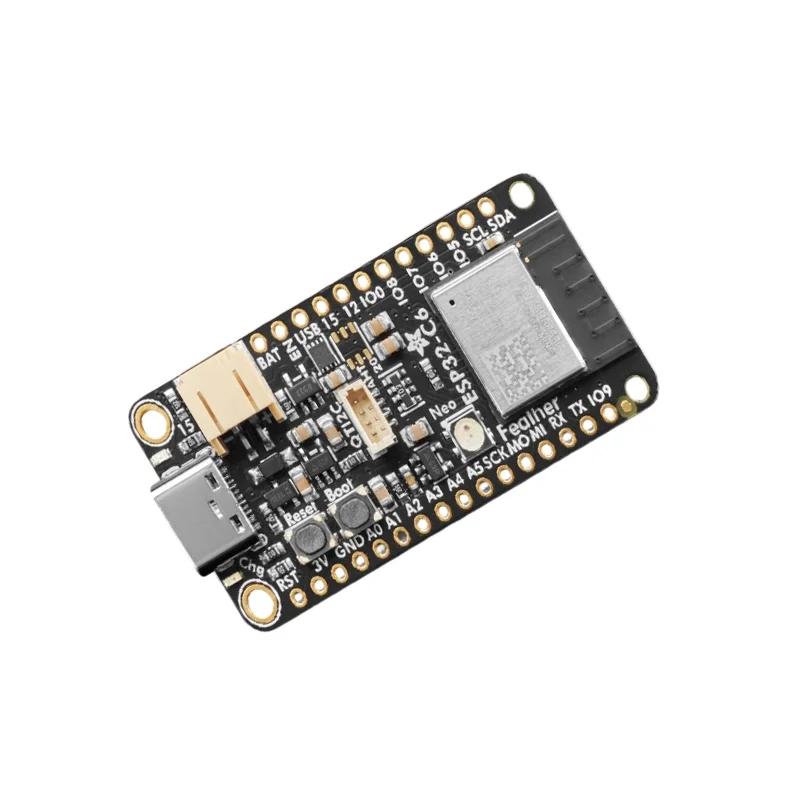

Adafruit ESP32-C6 Feather - STEMMA QT Wi-Fi 6 & BLE 5 IoT Dev Board
The Adafruit ESP32-C6 Feather is a versatile IoT development board featuring the ESP32-C6 SoC with Wi-Fi 6, Bluetooth 5 LE, and 802.15.4/Zigbee connectivity, optimized for low-power applications and compatible with Arduino IDE, ESP-IDF, and MicroPython.
Features
- ESP32-C6 SoC with Wi-Fi 6, Bluetooth 5 LE, and 802.15.4/Zigbee for multi-protocol IoT connectivity.
- Ultra-low power operation with deep sleep current as low as 17µA for battery-powered projects.
- Integrated STEMMA QT/Qwiic connector for plug-and-play sensor and accessory integration.
- Onboard MAX17048 LiPoly battery fuel gauge for real-time power monitoring and management.
- Feather form factor ensures compatibility with the extensive FeatherWing add-on ecosystem.
Out of stock
The Adafruit ESP32-C6 Feather – STEMMA QT is a feature-rich development board built around Espressif’s ESP32-C6 RISC-V microcontroller. It combines Wi-Fi 6 (802.11ax), Bluetooth Low Energy 5, and IEEE 802.15.4 (Zigbee/Thread) radios on a single chip, enabling robust, multi-protocol wireless designs for smart home and industrial IoT applications. The board is engineered for extreme energy efficiency, supporting deep sleep modes that draw only microamps, making it ideal for remote, battery-operated sensor nodes.
Its design includes a STEMMA QT connector, which uses a 4-pin JST SH cable for instant connection to a vast ecosystem of sensors, displays, and actuators without soldering. The integrated MAX17048 battery monitor provides accurate state-of-charge readings for LiPo batteries. While it lacks native USB mass storage, it provides full USB-C serial communication for debugging and programming via Arduino IDE, ESP-IDF, or CircuitPython, backed by 8MB of flash and 512KB of SRAM for complex firmware.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 14 × 8 × 2 cm |
