Waveshare ESP32-C6 1.69-Inch Touch Display Development Board
The Waveshare ESP32-C6 Touch Display Development Board integrates a 1.69-inch IPS capacitive touchscreen with a dual-core RISC-V processor, Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread connectivity for AIoT and interactive UI projects, programmable via Arduino IDE or ESP-IDF.
Features

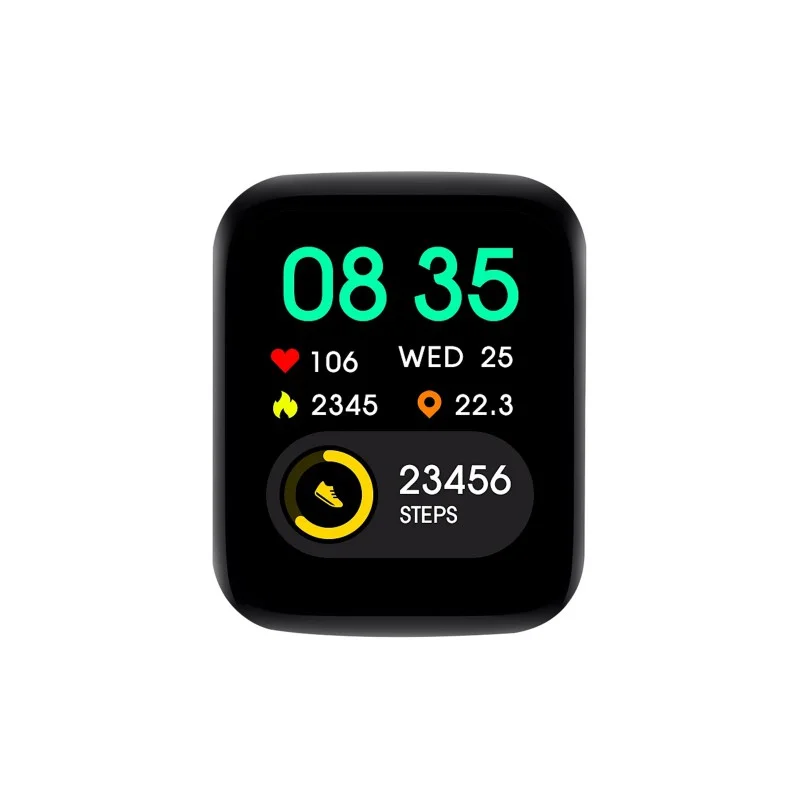

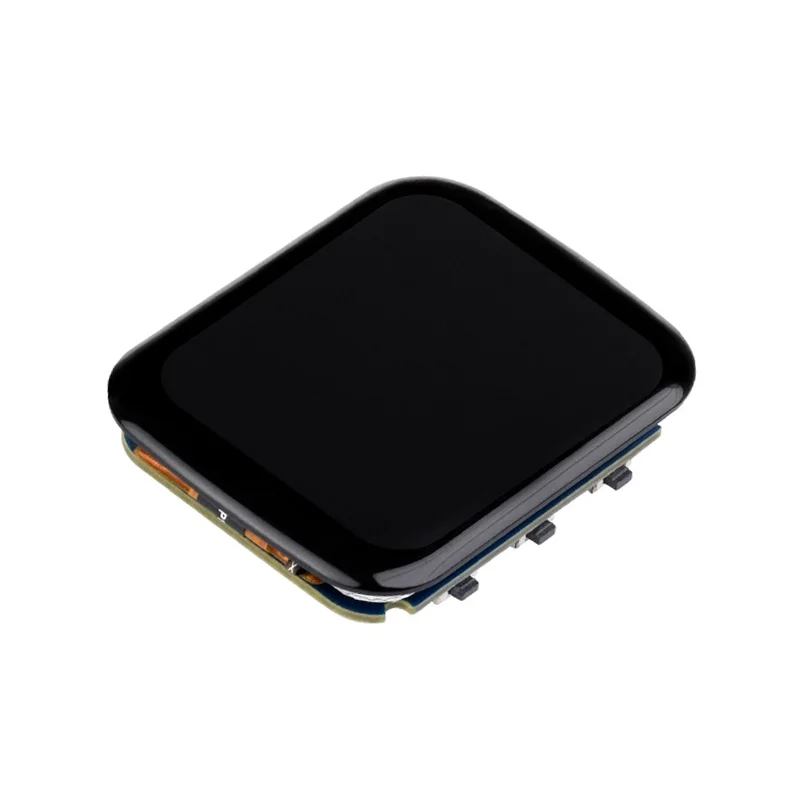

- 1.69-inch IPS capacitive touch display with 240×280 resolution and ST7789V2 driver for vivid, interactive UIs.
- ESP32-C6 dual-core RISC-V processor at 160 MHz with integrated Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread for multi-protocol IoT connectivity.
- Onboard 16MB Flash, 6-axis IMU for motion sensing, and ES8311 audio codec with mic/speaker for AI voice and gesture control applications.
- USB Type-C programming interface with support for Arduino IDE and ESP-IDF, plus built-in battery management for portable projects.
- Compact 41.13 x 33.13 mm form factor with SPI display interface, ideal for wearables, smart home controllers, and industrial HMI devices.
Out of stock

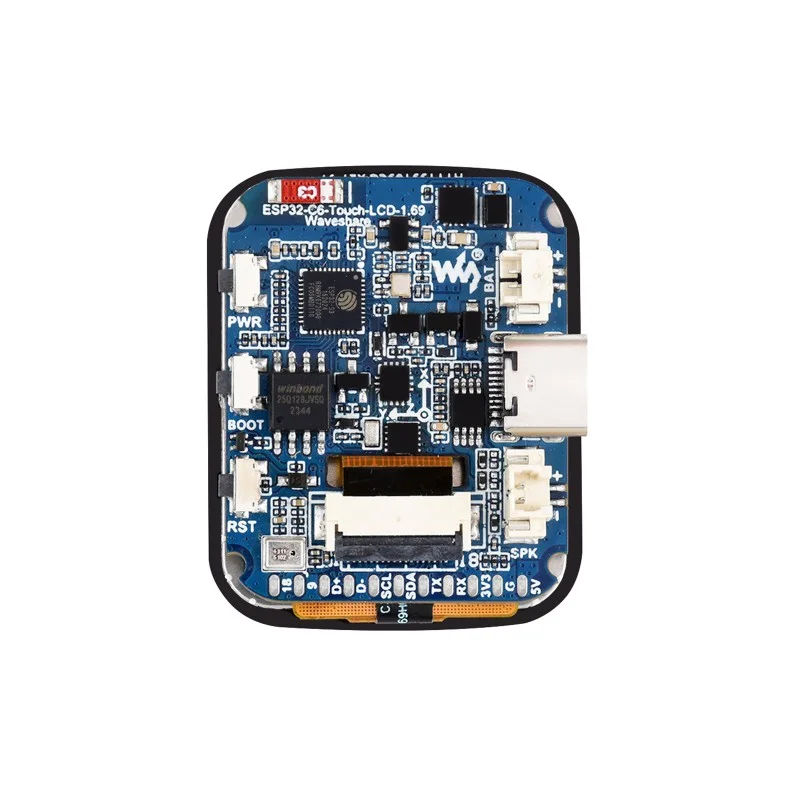

The Waveshare ESP32-C6 Touch Display Development Board is a feature-rich AIoT platform centered on Espressif’s latest ESP32-C6 SoC. It combines a dual-core 160 MHz RISC-V processor with concurrent support for Wi-Fi 6, Bluetooth Low Energy 5, Zigbee 3.0, and Thread, enabling robust, multi-standard wireless communication for smart home and industrial automation networks. The board’s integrated 1.69-inch IPS capacitive touchscreen, driven by an ST7789V2 controller and CST816T touch IC, provides a responsive, high-color-depth interface for user interaction.

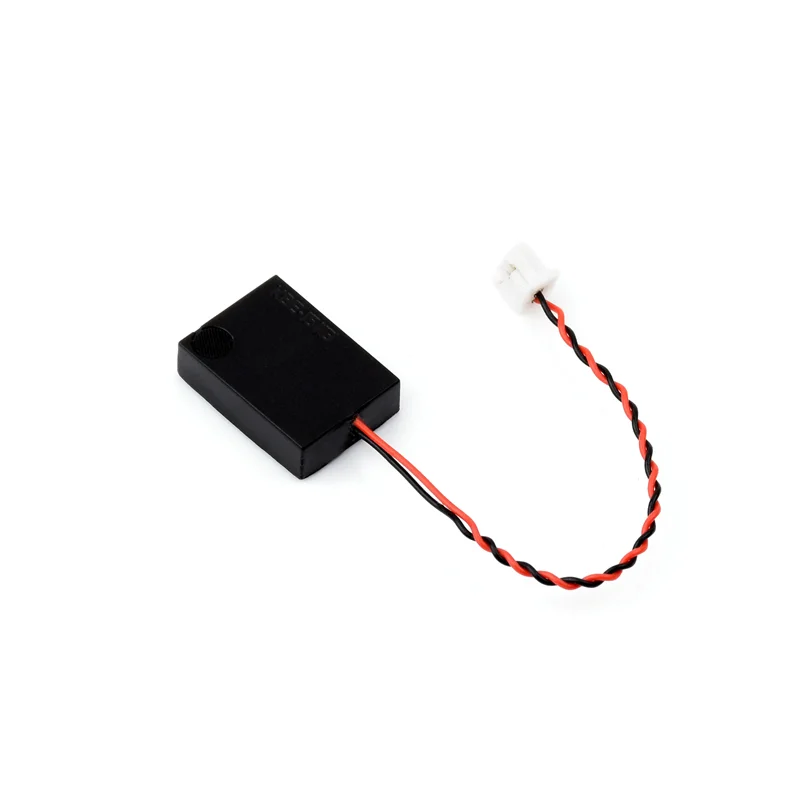

Beyond core wireless and display functions, the board includes a comprehensive suite of onboard peripherals for advanced sensing and audio applications. A 6-axis IMU enables precise gesture recognition and motion tracking, while the ES8311 audio codec, microphone, and speaker amplifier facilitate AI-powered voice command processing. With 16MB of Flash memory, an RTC for timing, and low-power sleep modes, the board is engineered for battery-operated, always-connected IoT endpoints requiring a graphical user interface.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 4.113 × 3.313 cm |
