Waveshare ESP32-C6 1.54inch LCD Dev Board, Wi-Fi 6/BLE 5
The Waveshare ESP32-C6 1.54inch LCD Display Development Board integrates the ESP32-C6 RISC-V processor, a 1.54-inch IPS LCD, and extensive wireless connectivity including Wi-Fi 6 and Bluetooth 5, making it ideal for compact IoT and smart device projects.
Features
- Integrated ESP32-C6 32-bit RISC-V processor clocked up to 160MHz.
- Features a 1.54-inch IPS LCD with 240 × 240 resolution and 262K colors.
- Supports advanced wireless protocols: 2.4GHz Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0, Thread).
- Equipped with dual microphones, an ES7210 audio ADC, ES8311 codec, and a QMI8658 6-axis IMU.
- Includes 16MB NOR Flash, a TF card slot, and a versatile USB Type-C interface for flexible development.
Out of stock
The Waveshare ESP32-C6 1.54inch LCD Display Development Board is a compact and feature-rich platform centered around the ESP32-C6 32-bit RISC-V processor, capable of running up to 160MHz. It prominently features a vibrant 1.54-inch IPS LCD, offering a crisp 240 × 240 resolution with 262K colors, perfect for embedded GUIs and data visualization without touch control.
This development board provides robust wireless capabilities, supporting 2.4GHz Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 protocols, making it highly versatile for modern IoT and smart-home applications that require multi-protocol connectivity. Peripheral support is extensive, including a dual-microphone array with audio processing hardware, a 6-axis IMU for motion sensing, a TF card slot for expanded storage, and a USB Type-C interface. It offers broad development flexibility, supporting both the ESP-IDF and Arduino IDE ecosystems.
Additional Information
| Weight | 0.054 kg |
|---|---|

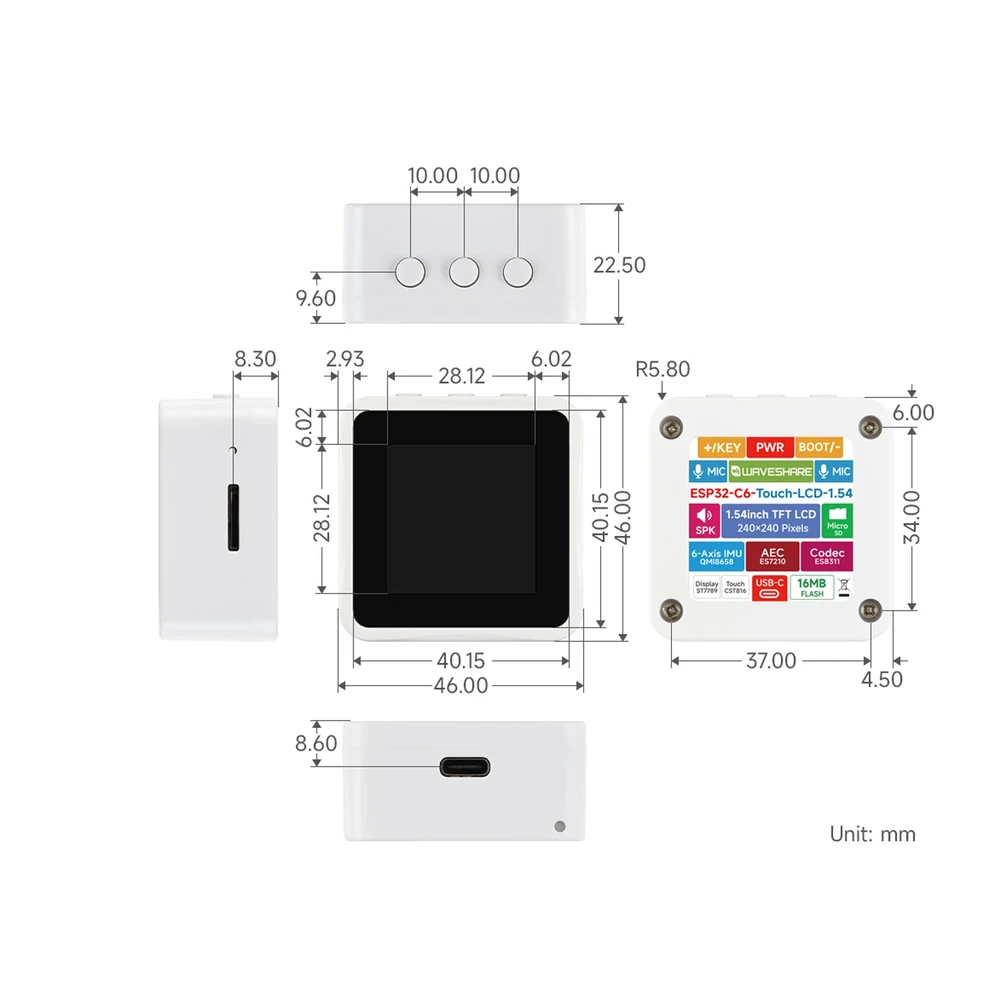

| Dimensions | 11 × 8 × 3 cm |
