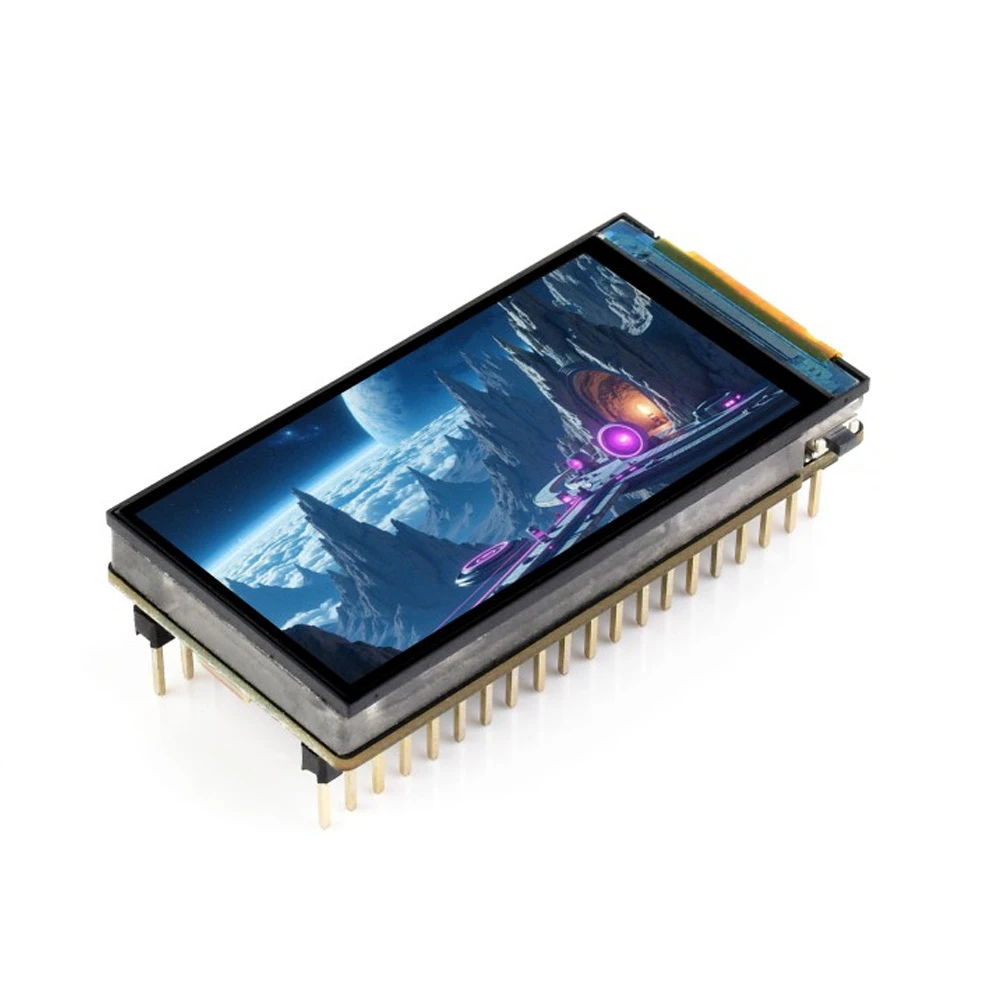

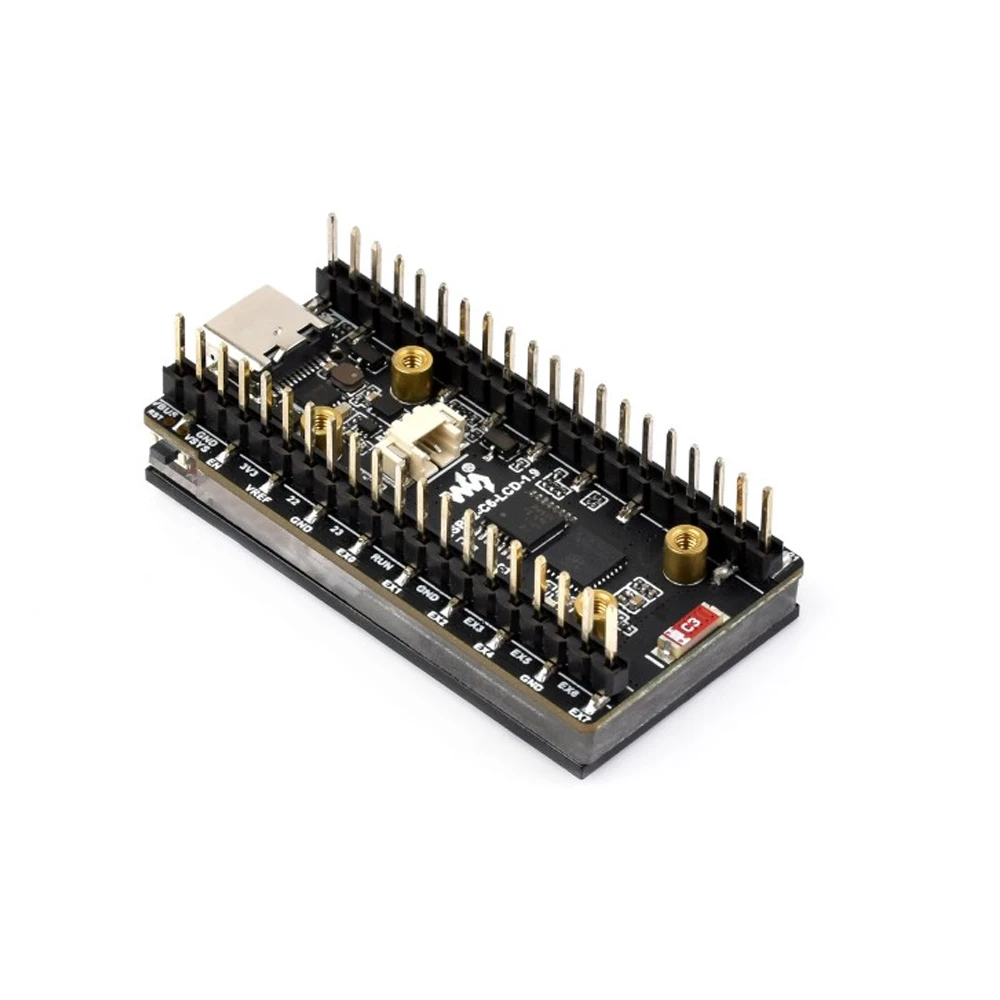

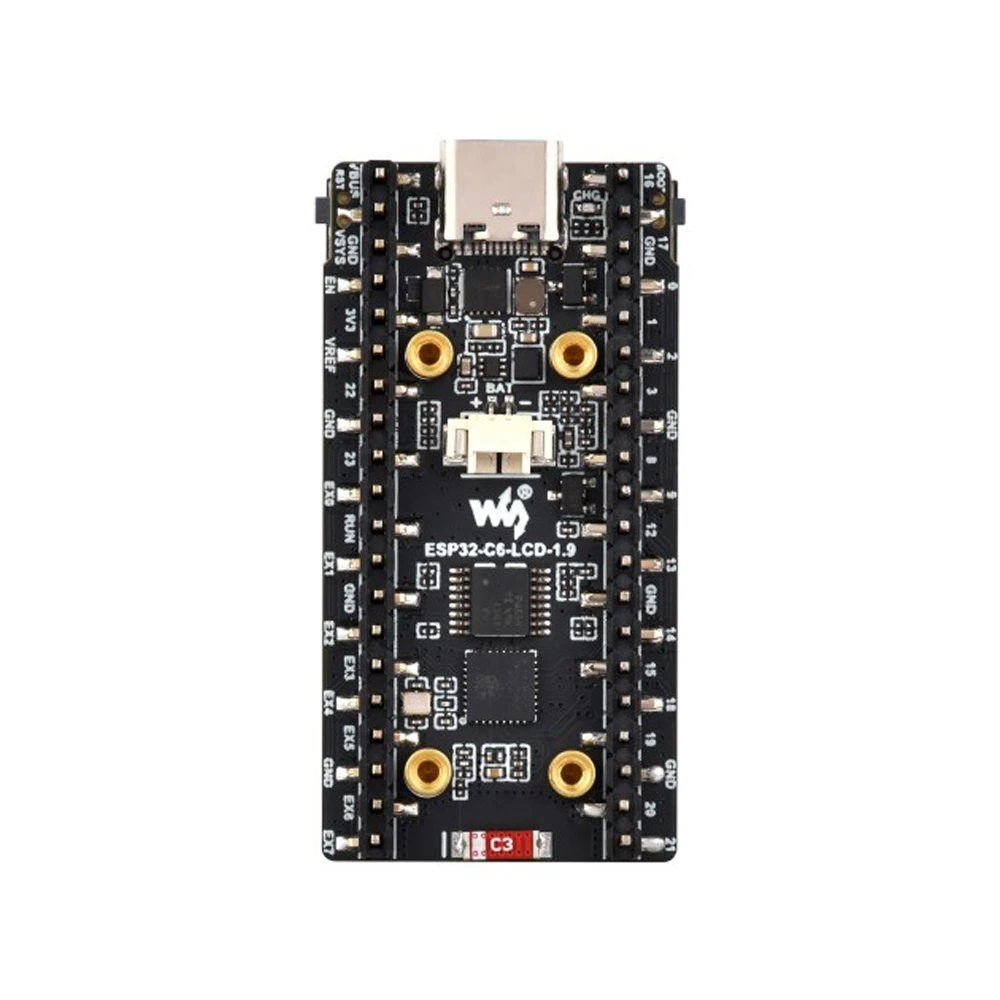

Waveshare ESP32-C6 1.9-Inch LCD Display Development Board
This Waveshare development board integrates an ESP32-C6FH8 SoC with a 1.9-inch 170×320 SPI LCD, designed for IoT HMIs and portable devices. It supports Wi-Fi 6, Bluetooth 5, Zigbee, and Thread, and is programmable via USB-C with Arduino IDE, ESP-IDF, or MicroPython.
Features
- ESP32-C6FH8 SoC with 160 MHz RISC-V CPU, 8MB flash, and support for Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread.

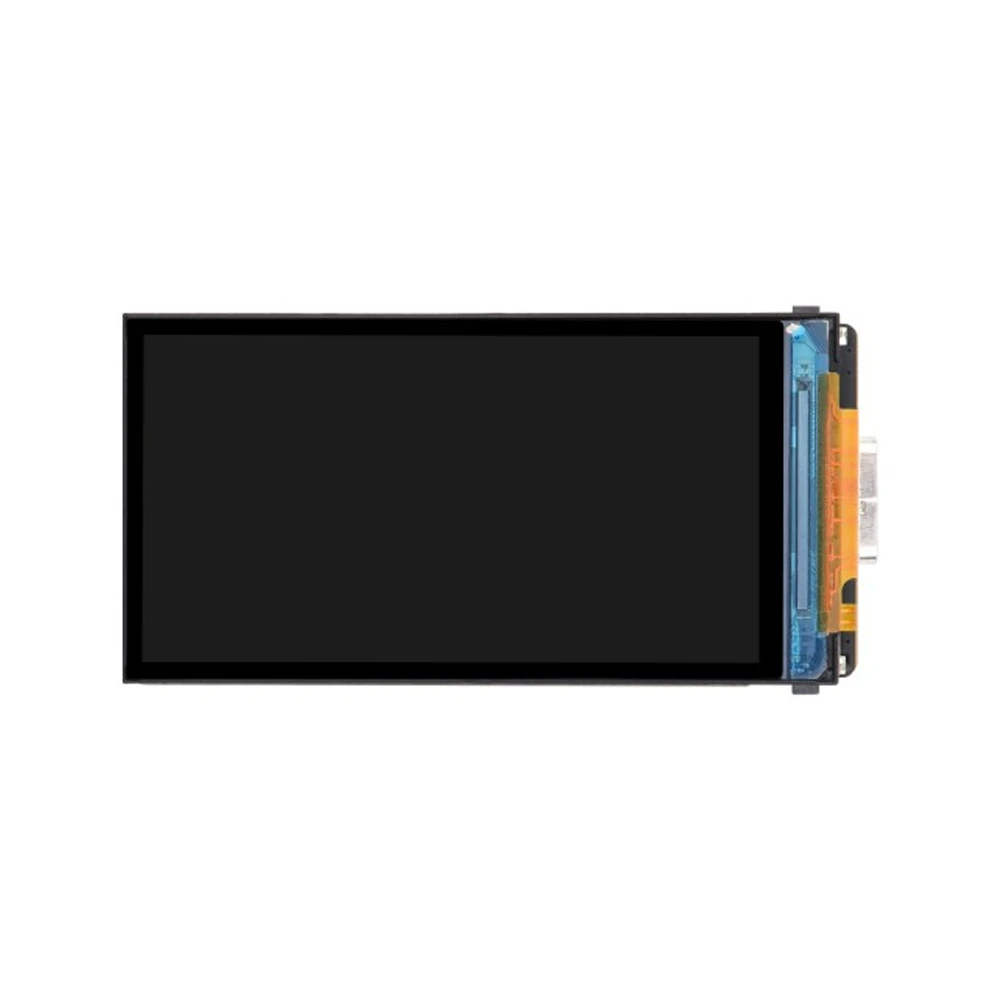

- 1.9-inch 170×320 SPI LCD with ST7789V2 driver, 262K colors, and 500 nits brightness for smooth GUI development with LVGL.
- Integrated QMI8658 6-axis IMU (accelerometer & gyroscope) for motion sensing and orientation tracking in portable applications.
- USB Type-C interface for power, programming, and debugging, plus a TF card slot and onboard 3.7V Li-Po battery header.
- Compact 51x26mm form factor with Pico-compatible expansion headers for adding sensors, actuators, or peripheral modules.
Out of stock
The Waveshare ESP32-C6 development board is a compact AIoT platform combining Espressif’s latest wireless MCU with a high-brightness color display. The ESP32-C6FH8 core provides a multi-protocol radio supporting Wi-Fi 6 for efficient IoT data transfer, Bluetooth LE 5 for short-range communication, and IEEE 802.15.4 for Zigbee and Thread mesh networking, all managed by a 160 MHz RISC-V processor.
Its integrated 1.9-inch LCD, driven via SPI, offers a sharp 170×320 pixel canvas with 262K colors, ideal for building responsive touchless HMIs using the LVGL graphics library. The board includes a QMI8658 inertial measurement unit for motion-based interactivity and a TF card slot for local data logging. Power management is handled via the USB-C port or an optional Li-Po battery, making it suited for portable, battery-operated sensor nodes and interactive control panels.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 2.6 × 5.1 × 1.59 cm |
