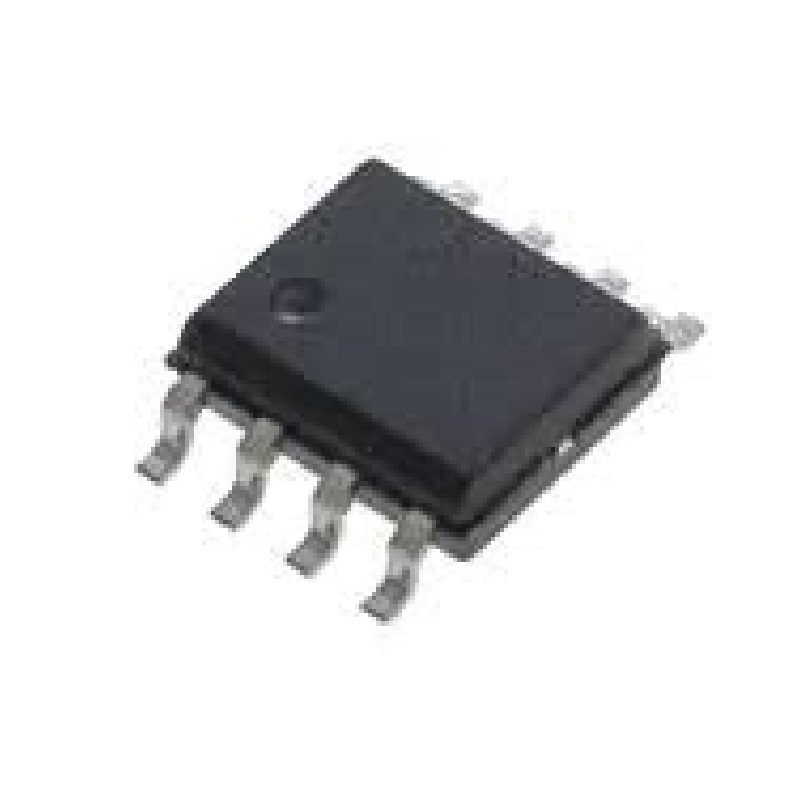

UMW TMP36FSZ SOP-8 Precision Analog Temperature Sensor IC
The UMW TMP36FSZ is a low-voltage, precision analog temperature sensor IC in an SOP-8 package, providing a linear voltage output proportional to Celsius temperature. It is designed for easy integration with 3.3V or 5V microcontroller systems like Arduino, Raspberry Pi, and STM32 for environmental monitoring and thermal management.
Features
- Low-voltage operation from 2.7V to 5.5V DC
- Wide temperature sensing range from -40°C to +125°C
- Linear 10mV/°C scale factor with a +500mV offset
- Low power consumption for battery-powered applications
- SOP-8 surface-mount package for compact PCB designs
Out of stock
The TMP36FSZ from UMW (Youtai Semiconductor) is a solid-state analog temperature sensor that generates a voltage output directly proportional to the ambient temperature. Its output scale factor is 10 mV per °C, with a 500 mV output at 0°C, enabling straightforward linear conversion without complex calibration. The device operates from a single 2.7V to 5.5V supply, making it compatible with both 3.3V and 5V logic systems.
Engineered for stability and reliability, this sensor is suitable for a broad spectrum of applications, from consumer electronics to industrial control systems. Its SOP-8 package offers a compact footprint for high-density PCB layouts while maintaining robust thermal coupling to the environment for accurate measurements.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 4 cm |
