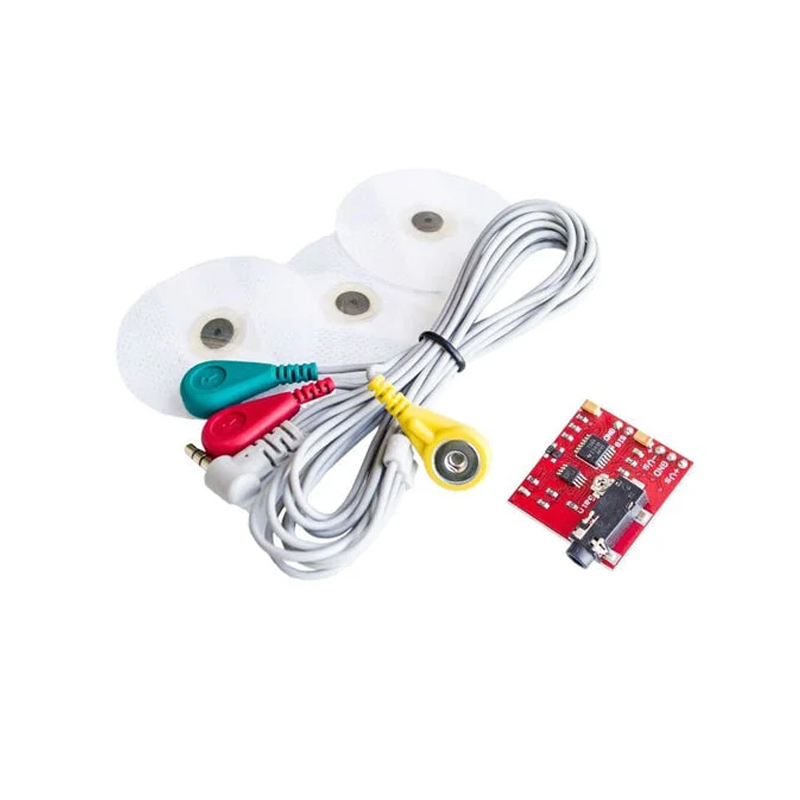

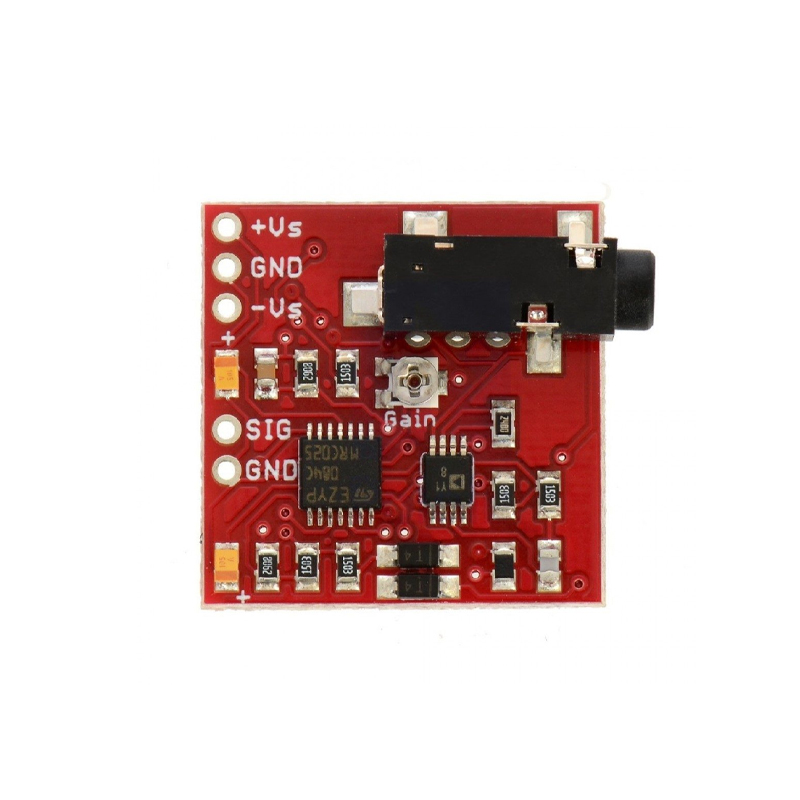

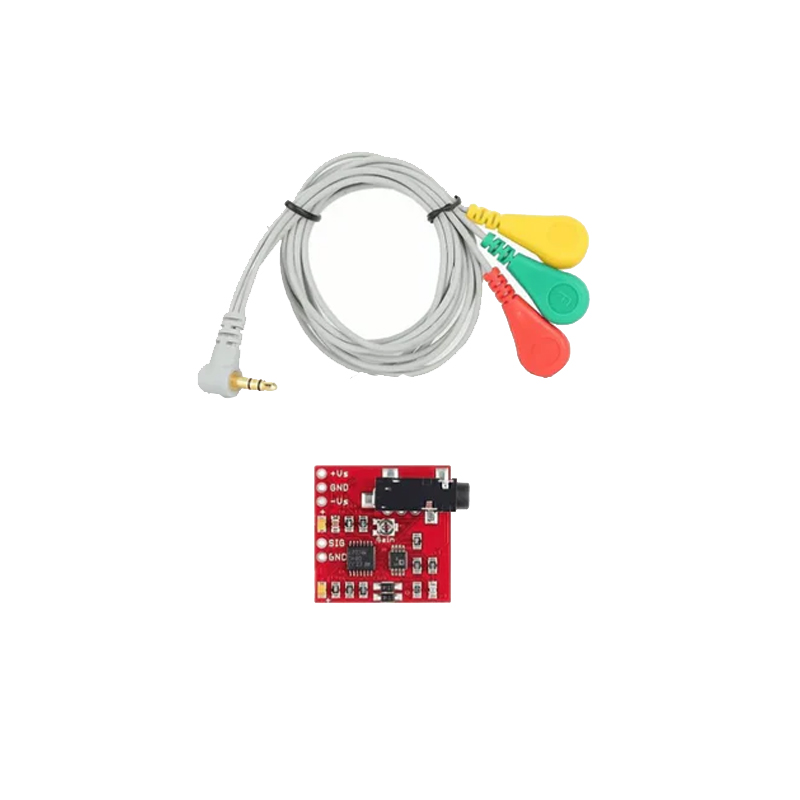

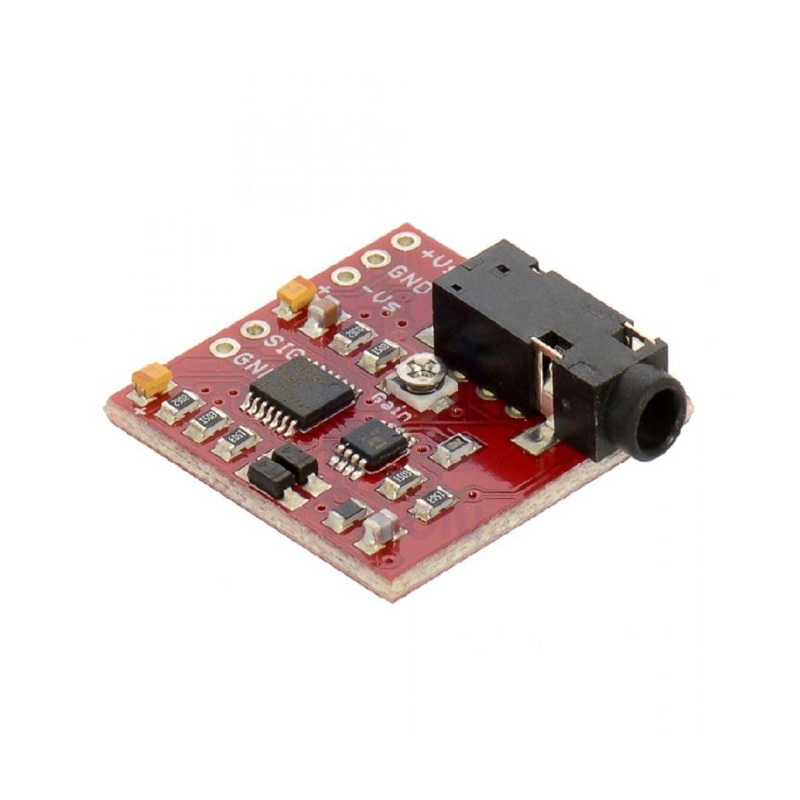

Advancer Technology EMG Muscle Sensor Module V3.0 with Cable and Electrodes - Analog Output
The Advancer Technology EMG Muscle Sensor Module V3.0 is a single-channel biopotential amplifier designed for detecting and analyzing electromyography (EMG) signals. It provides a filtered and rectified analog output compatible with 3.3V/5V microcontrollers like Arduino, Raspberry Pi, and ESP32 for real-time muscle activity monitoring.
Features
- Single-channel EMG signal acquisition with built-in filtering and rectification.
- Analog voltage output (0 to Vs) for direct ADC reading by microcontrollers.
- Wide dual-rail power supply support (minimum ±3.5V).
- Compact and lightweight module design (approx. 33g).
- Includes connection cable and three sets of electrode pads for quick setup.
Out of stock
The EMG Muscle Sensor Module V3.0 is engineered to capture, condition, and amplify the low-amplitude electrical signals generated by muscle contractions. Its integrated signal processing chain includes high-pass filtering to remove DC offsets and motion artifacts, followed by amplification and full-wave rectification to produce a clean, unipolar analog output proportional to muscle activity intensity.
Designed for robust performance in prototyping environments, the module operates on a dual-rail power supply, ensuring stable signal conditioning. The included snap-on cable and disposable electrode pads facilitate immediate connection to the human body, making it suitable for both educational and advanced development applications requiring precise biofeedback.
Additional Information
| Weight | 0.031 kg |
|---|---|
| Dimensions | 15 × 10 × 3 cm |
