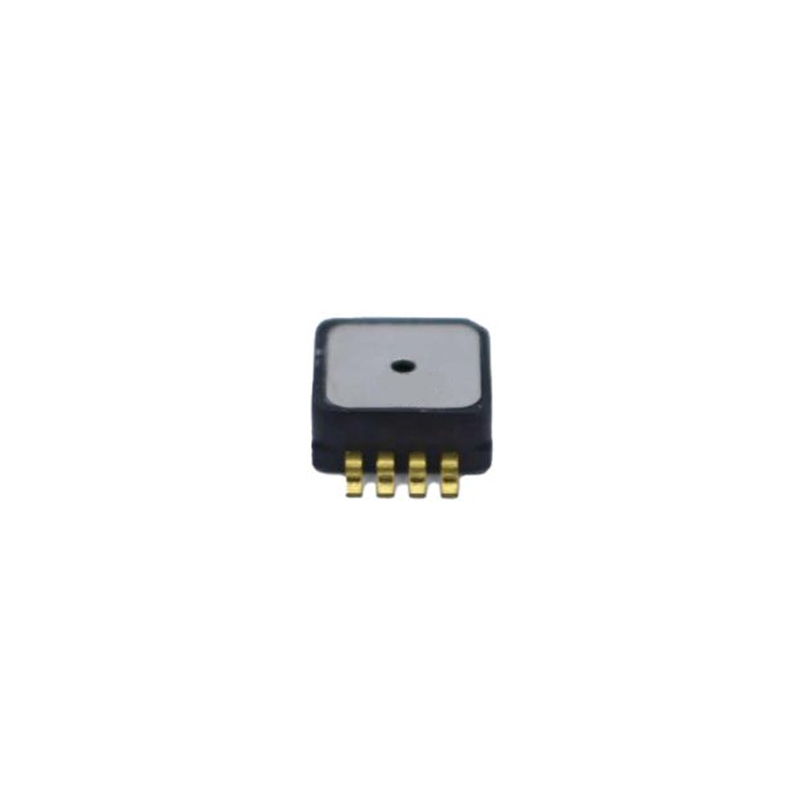

Tiger TKPS1700 Pressure Sensor 0-1700 kPa Absolute Pressure - I2C Output
The Tiger TKPS1700 is a digital absolute pressure sensor with a 0-1700 kPa range, featuring an I2C output for direct interfacing with microcontrollers like Arduino, Raspberry Pi, and ESP32. Its diffused silicon piezoresistive sensing element provides high-precision measurements with integrated temperature compensation from -40°C to +85°C.
Features
- Absolute pressure measurement range: 0 to 1700 kPa.
- Digital I2C output for easy microcontroller integration (3.3V or 5V logic compatible).
- Integrated temperature compensation across a wide -40°C to +85°C operating range.
- High-precision diffused silicon piezoresistive sensing chip with ±1% FS accuracy.
- Compact 1 cm x 1 cm footprint, factory calibrated for immediate use.
Out of stock
The Tiger TKPS1700 employs a diffused silicon piezoresistive pressure sensing chip, which translates applied pressure into a precise electrical signal. This signal is conditioned, amplified, and digitized on-board, providing a stable I2C output that eliminates the need for external analog-to-digital conversion. The sensor is factory-calibrated and includes built-in temperature compensation, ensuring reliable readings across its full operating temperature span.
Designed for system integration, the TKPS1700 operates from a 3.3V to 5V DC supply, making it compatible with common development platforms and industrial logic controllers. Its robust construction and digital interface provide immunity to noise, making it suitable for applications requiring stable pressure monitoring in variable environments.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1 × 1 cm |
