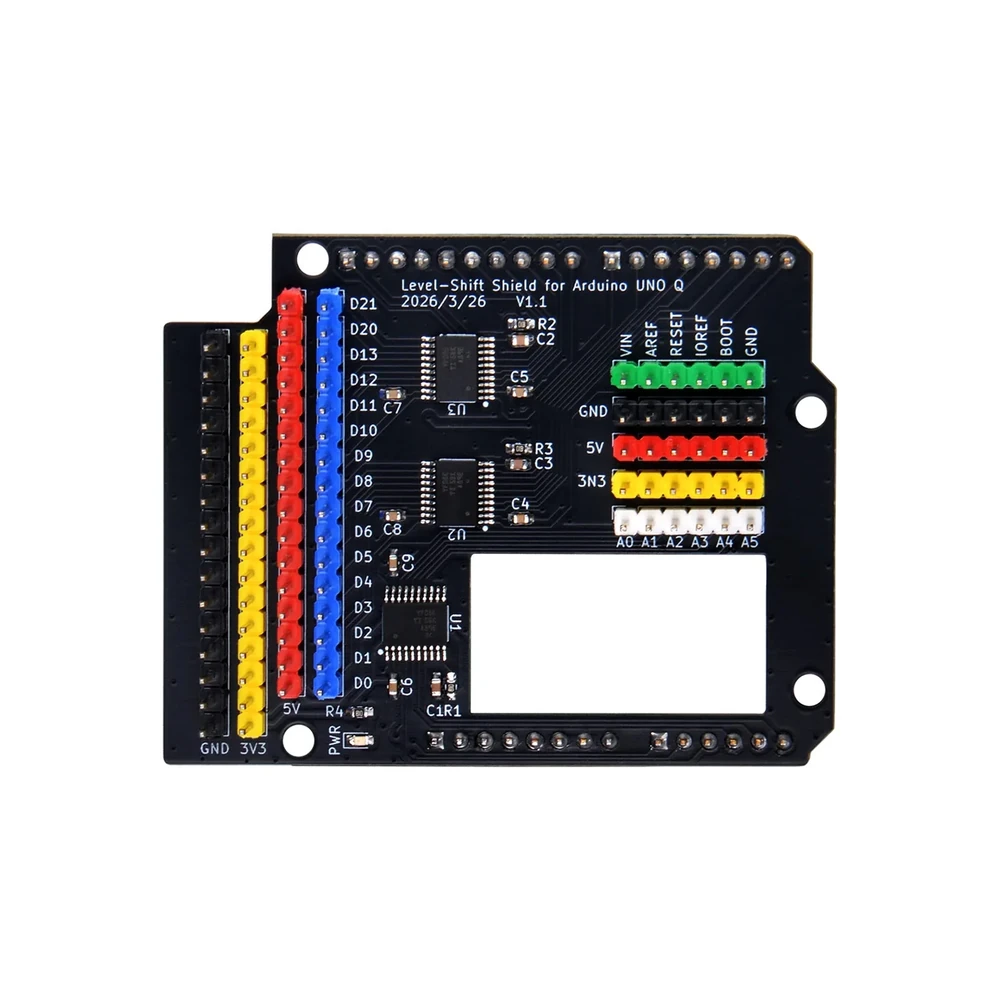

52Pi Level-Shift Shield for Arduino UNO Q
The 52Pi Level-Shift Shield for Arduino UNO Q enables seamless and safe 3.3V to 5V bidirectional logic level conversion for your Arduino projects. Featuring the Texas Instruments TXS0108EPWR IC, it supports GPIO, I2C, SPI, and UART interfaces for mixed-voltage system integration without manual configuration.
Features
- Seamless 3.3V ↔ 5V bidirectional logic level conversion for Arduino UNO Q
- Integrates Texas Instruments TXS0108EPWR for robust performance
- Standard Arduino UNO Q shield form factor for plug-and-play use
- Supports GPIO, I2C, SPI, and UART communication interfaces
- Central cutout maintains visibility of Arduino UNO Q onboard LED Matrix
Out of stock
The 52Pi Level-Shift Shield for Arduino UNO Q is an essential accessory for integrating 3.3V modules with 5V Arduino UNO Q boards. Built around the advanced Texas Instruments TXS0108EPWR bidirectional voltage-level translator, this shield automatically converts logic levels across various interfaces, including GPIO, I2C, SPI, and UART, eliminating the need for complex manual configuration.
Designed with a standard shield form factor, it ensures direct, plug-and-play installation onto your Arduino UNO Q, significantly simplifying prototyping and development. A thoughtful central cutout allows full visibility of the Arduino UNO Q’s onboard LED Matrix, crucial for convenient debugging and status monitoring. With independent 8-bit channels for efficient signal translation, color-coded headers for easy wiring, and support for partial power-down mode with ESD protection, this shield delivers reliable performance for a wide array of mixed-voltage embedded applications.
Additional Information
| Weight | 0.019 kg |
|---|---|

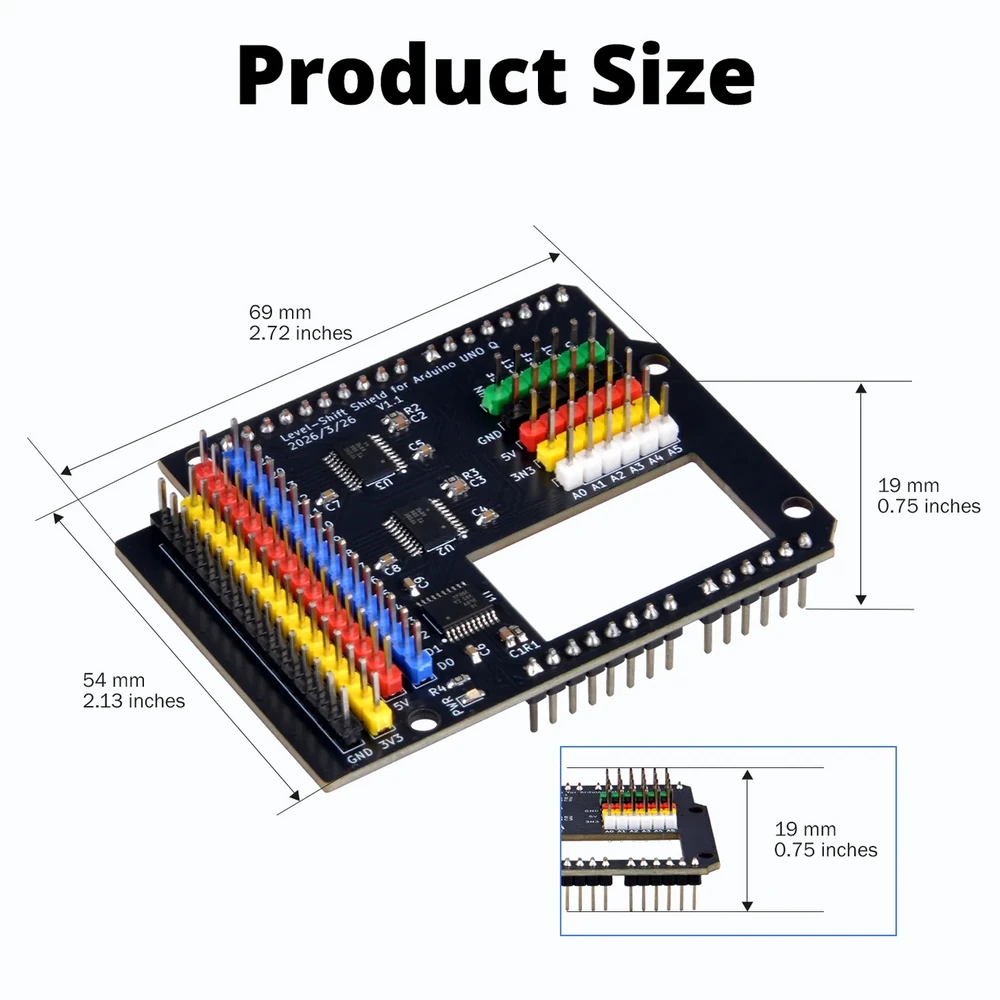

| Dimensions | 6.9 × 5.4 × 1.9 cm |
