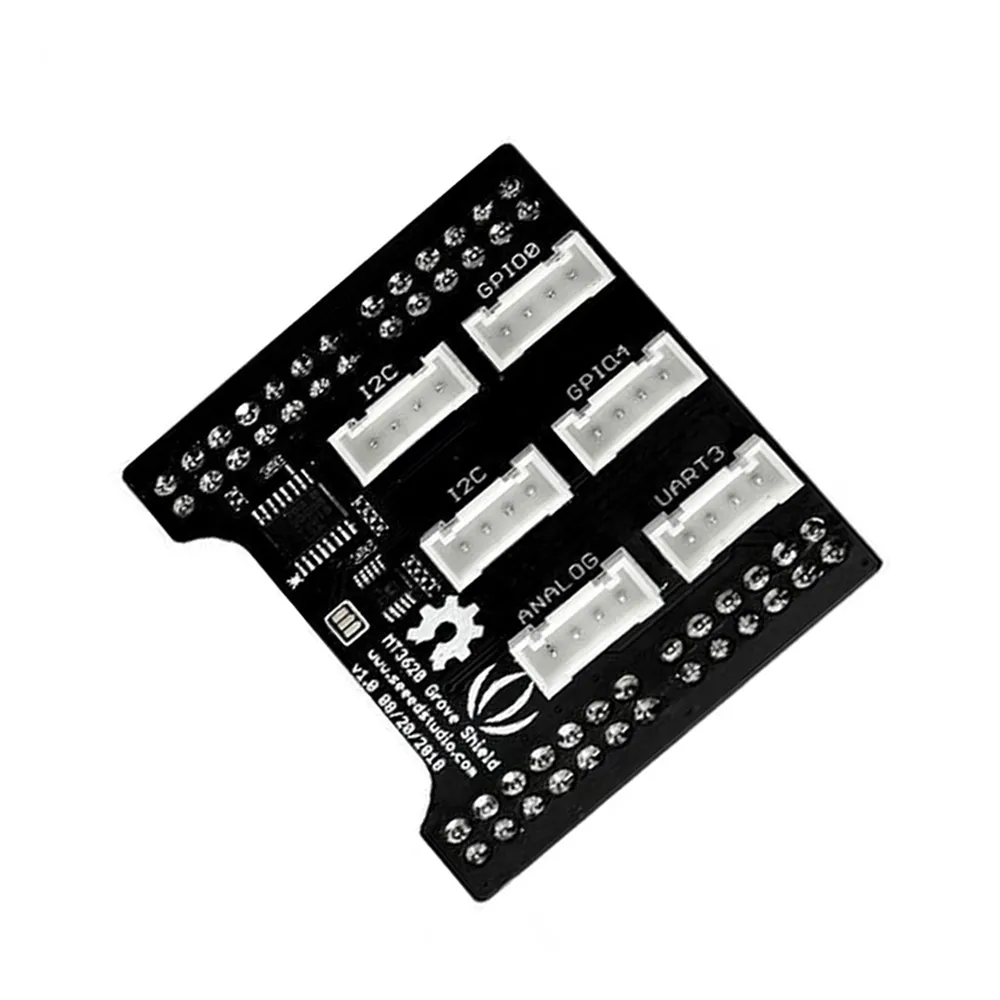

Seeed Studio Studio MT3620 Grove Shield v1.0
The Seeed Studio Studio MT3620 Grove Shield v1.0 is an add-on breakout board designed to expand the peripheral connectivity of the Azure Sphere MT3620 Development Kit. It enables rapid integration of Grove modules, providing an I2C bus master, a 12-bit ADC, and various Grove connectors for simplified prototyping.
Features
- Seamlessly integrates with the Azure Sphere MT3620 Development Kit.
- Facilitates quick connection of Seeed Studio Studio Grove modules for rapid prototyping.
- Features an I2C bus master controller with a UART interface for expanded communication.
- Includes a 12-bit ADC converter, compatible with the I2C interface, for analog sensor readings.
- Provides 6 versatile Grove connectors: UART, I2C, Analog, and GPIO.
Out of stock
The Seeed Studio Studio MT3620 Grove Shield is an essential add-on board engineered to enhance the functionality of the Azure Sphere MT3620 Development Kit. While the MT3620 Development Kit offers 2.54mm headers for hardware extension, this shield bridges the gap, allowing developers to directly connect a wide array of Seeed Studio Studio Grove sensor and actuator modules, significantly accelerating the prototyping phase.
Functionally, the shield acts as a robust interface, translating between the MT3620’s UART port and external I2C devices, such as I2C temperature sensors. Its core utility lies in simplifying external device connectivity via I2C. Furthermore, by integrating an I2C-compatible 12-bit ADC chip, the shield empowers developers to accurately acquire and process analog data from various analog sensors connected through its dedicated analog Grove port, making it ideal for IoT and embedded sensing applications.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
