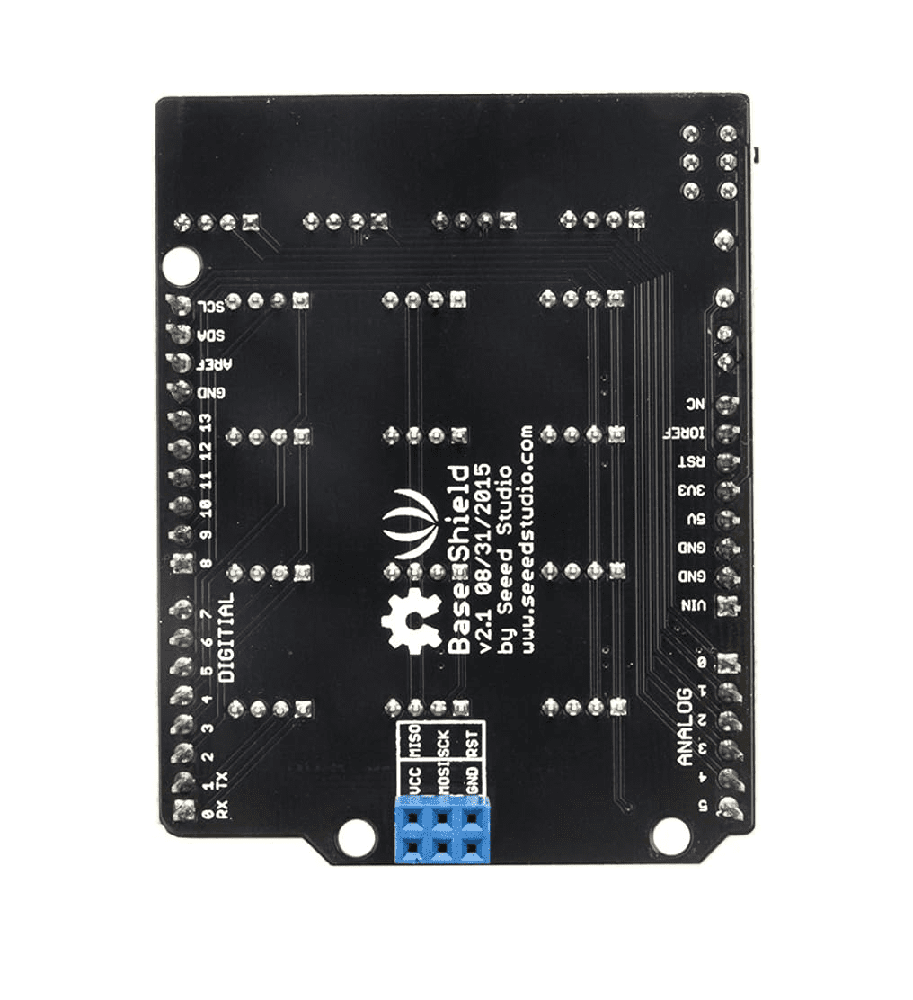

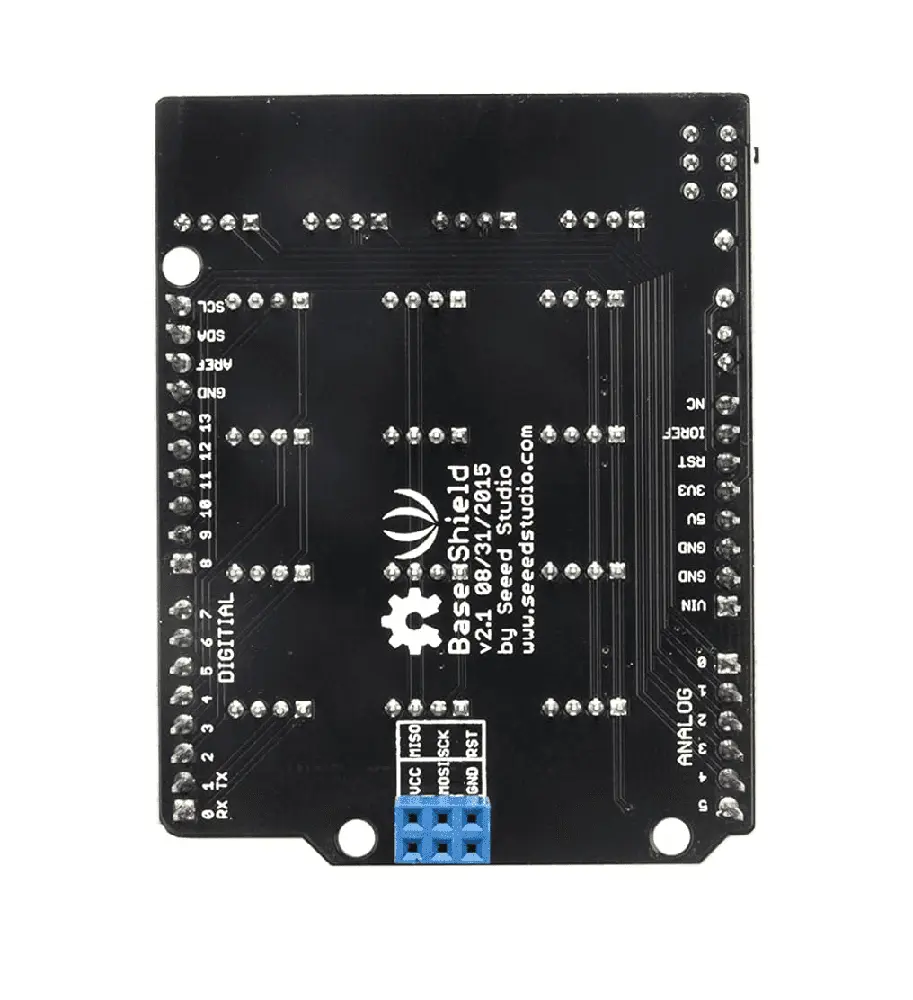

Seeed Studio Studio Base Shield V2 for Arduino Prototyping

Description

The Seeed Studio Studio Base Shield V2 is an essential prototyping accessory designed to streamline development with Arduino Uno and compatible boards. This shield provides a robust solution for connecting a wide array of sensors, actuators, and displays without the complexity of traditional breadboards and jumper wires, allowing developers to focus on application logic rather than intricate wiring.

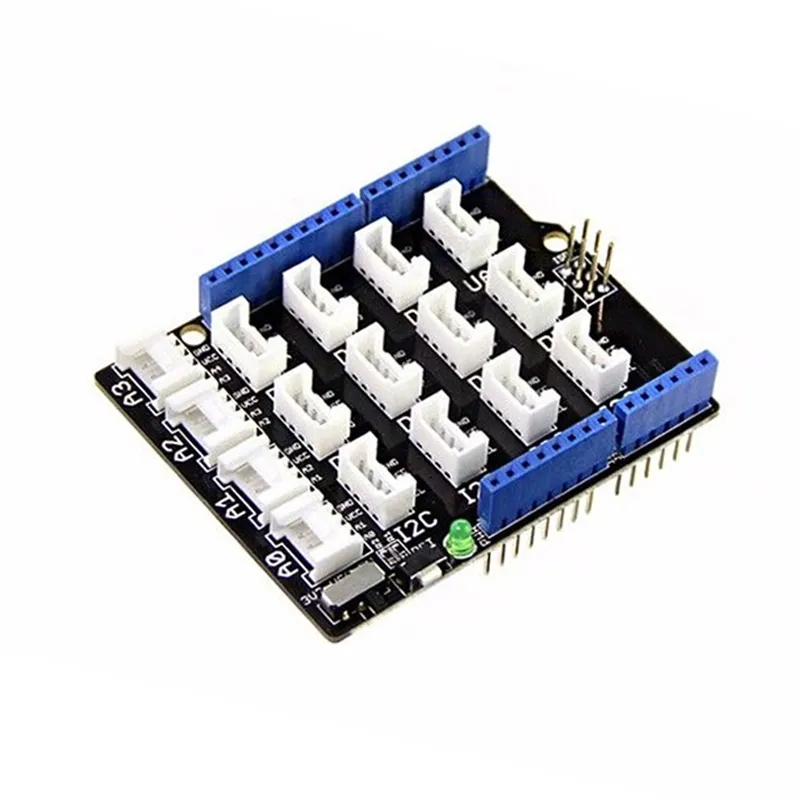

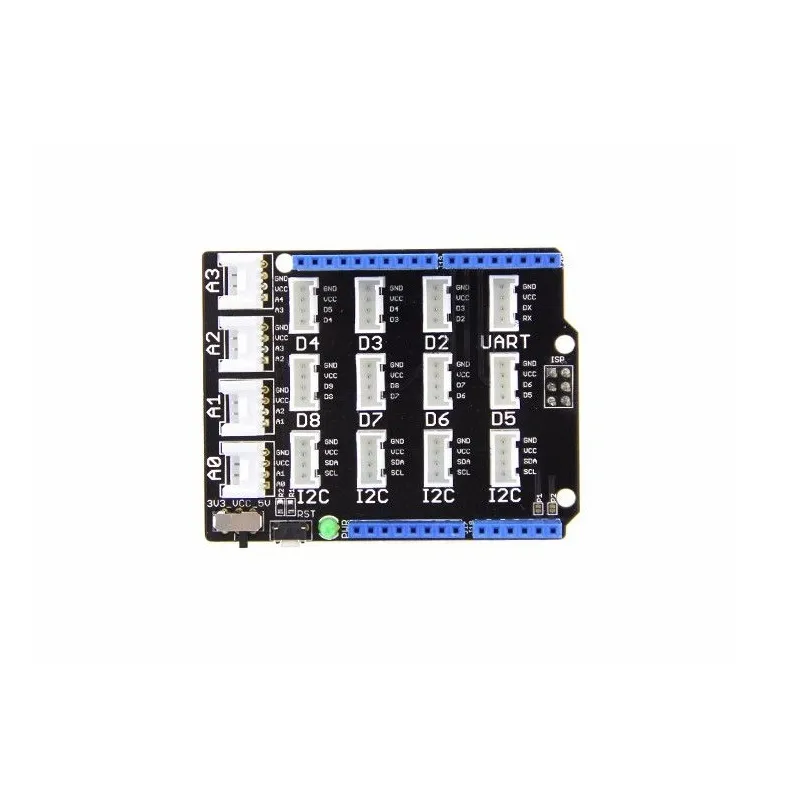

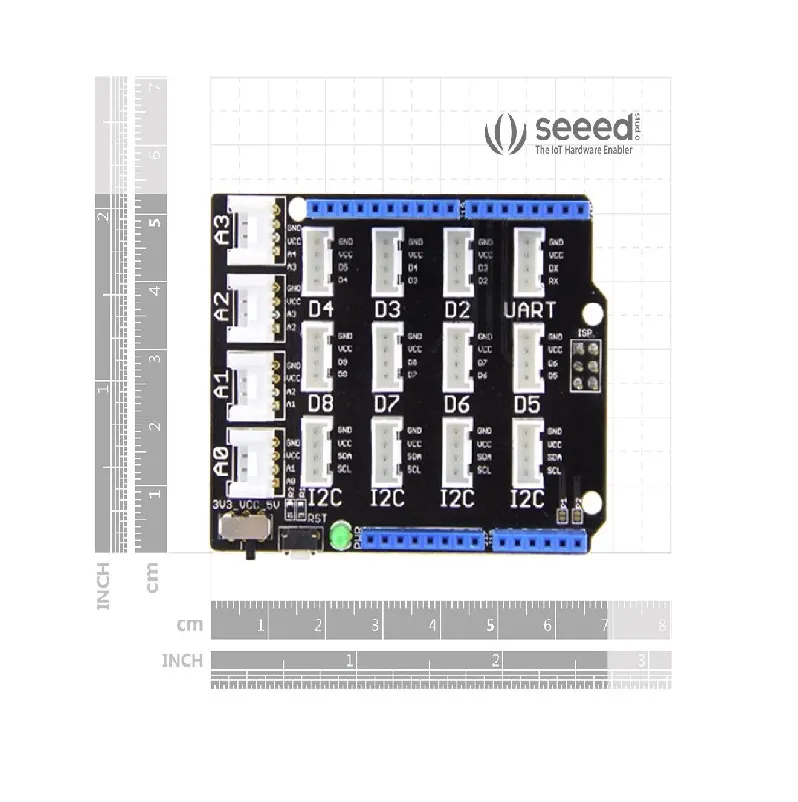

Featuring 16 on-board Grove connectors, the Base Shield V2 offers dedicated interfaces for 4 Analog ports (A0-A3), 7 Digital ports (D2-D8), 1 UART port, and 4 I2C ports. Its pinout mirrors that of the Arduino Uno R3, ensuring direct compatibility and ease of use. A built-in toggle switch allows selection between 5V and 3.3V logic levels, accommodating various Grove modules and host board requirements, such as Seeeduino Arch.
