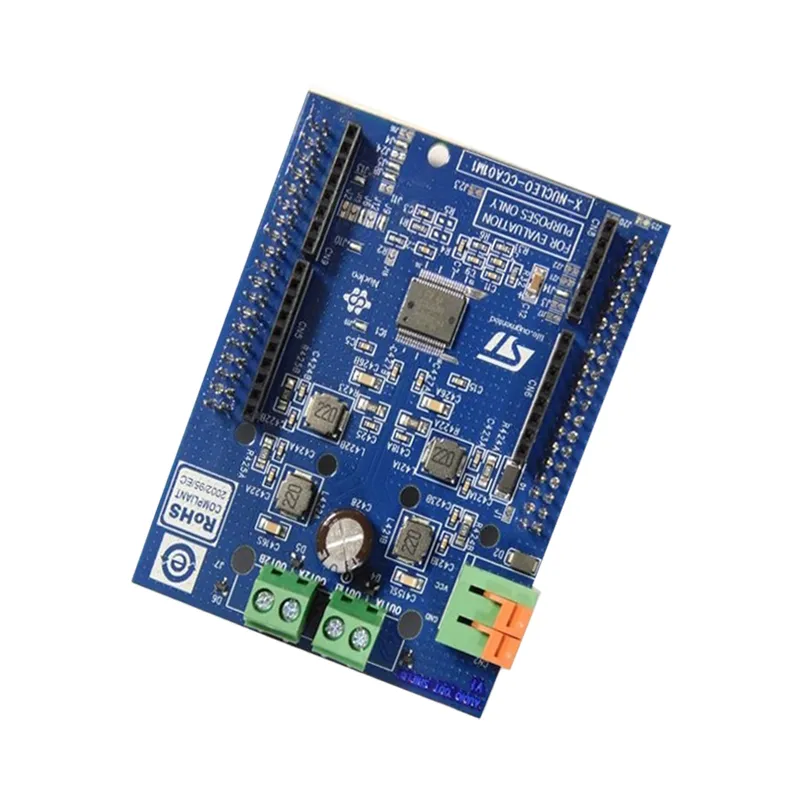

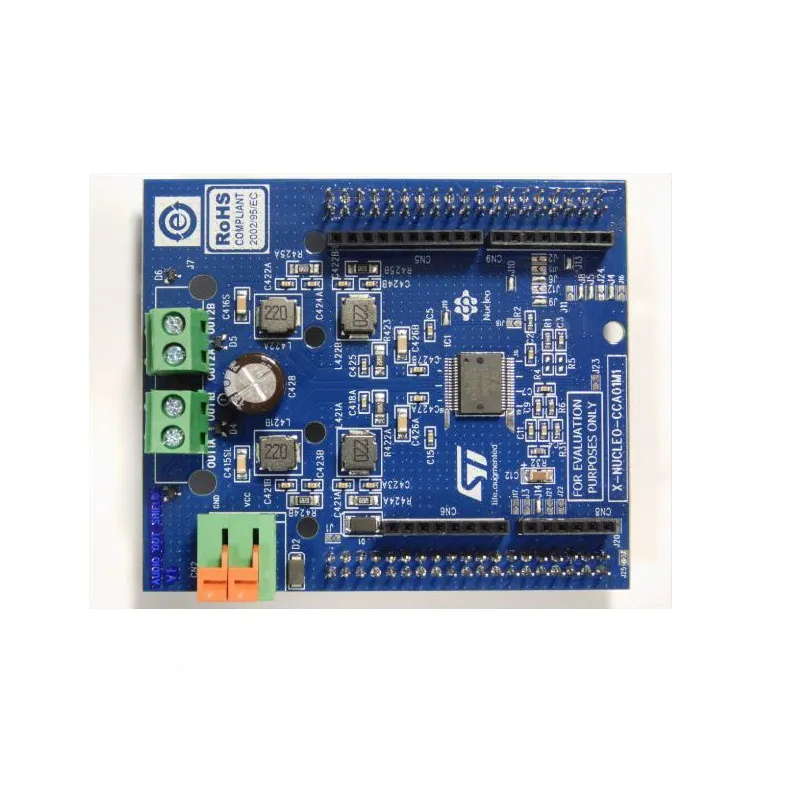

STM X-NUCLEO-CCA01M1 2.1-Ch Audio Expansion w/ STA350BW
The STMicroelectronics X-NUCLEO-CCA01M1 is an audio expansion board designed for STM32 Nucleo platforms, providing a 2.1-channel, 2x50W high-efficiency digital audio output system based on the STA350BW Sound Terminal. It offers robust audio performance and is compatible with Arduino-style headers.
Features
- Integrated STA350BW Sound Terminal for high-fidelity 2.1-channel audio output.
- Delivers 2 x 50W @ 25V into 6 Ω, ideal for robust audio applications.
- Features FFXâ„¢ technology with 100 dB SNR and wide dynamic range.
- I²C control interface for flexible configuration and parameter adjustment.
- Seamlessly integrates with STM32 Nucleo boards, leveraging ST morpho connectors.
Out of stock
The X-NUCLEO-CCA01M1 is a dedicated audio expansion board built around the STA350BW Sound Terminal, a high-efficiency 2.1-channel digital audio output system. It is specifically engineered to interface with STM32 Nucleo boards, utilizing the ST morpho connector layout for direct plug-and-play compatibility. This board facilitates the direct output of digital audio streams to connected speaker pairs, providing an effective platform for evaluating the advanced capabilities of the STMicroelectronics STA350BW digital audio component.
Developers can integrate up to two X-NUCLEO-CCA01M1 expansion boards onto a single STM32 Nucleo host. This modular approach allows for the creation of sophisticated four-channel digital audio output systems, catering to more complex audio design requirements. The board offers robust audio performance and flexible control for a wide range of embedded audio projects.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 12 × 15 × 4 cm |
