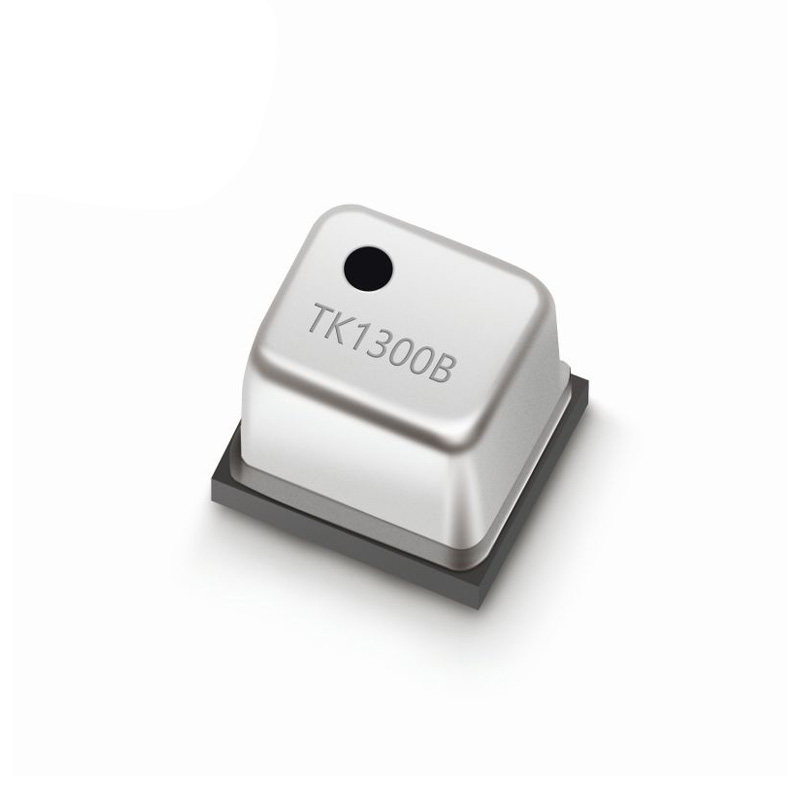

Tiger TK1300B 0-500 kPa Gauge Pressure Sensor - Digital UART Output
The Tiger TK1300B is a high-precision digital gauge pressure sensor with a 0-500 kPa range, featuring a diffused silicon piezoresistive sensing element and digital UART output for direct interfacing with microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
- High-precision diffused silicon piezoresistive sensor with 1% FS accuracy.
- Digital UART serial output for easy microcontroller integration.
- Integrated temperature compensation from -40°C to +85°C.
- Wide 3.3V to 5V DC supply voltage range.
- Fast 5 ms response time for dynamic pressure monitoring.
Out of stock
The Tiger TK1300B is a compact, intelligent pressure sensor module designed for precise gauge pressure measurement up to 500 kPa. It utilizes a diffused silicon piezoresistive sensing element, which provides a stable and linear output signal. An integrated signal conditioning chip performs onboard temperature compensation and calibration, ensuring reliable performance across a wide operating temperature range from -40°C to +85°C.
The module outputs calibrated pressure data via a digital UART interface, eliminating the need for external analog-to-digital conversion and simplifying integration into digital control systems. Its robust design and low power consumption make it suitable for embedded applications in industrial automation, environmental monitoring, and consumer electronics.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 5 × 3 × 2 cm |
