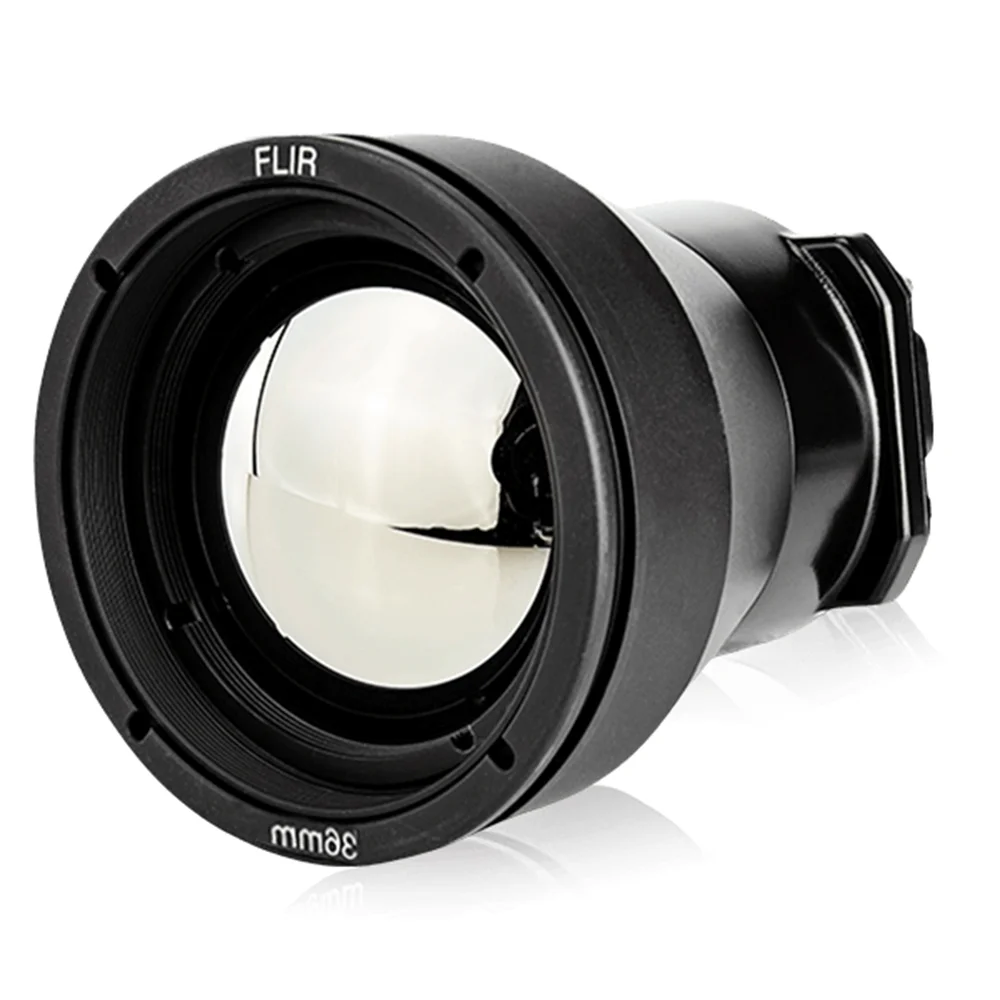

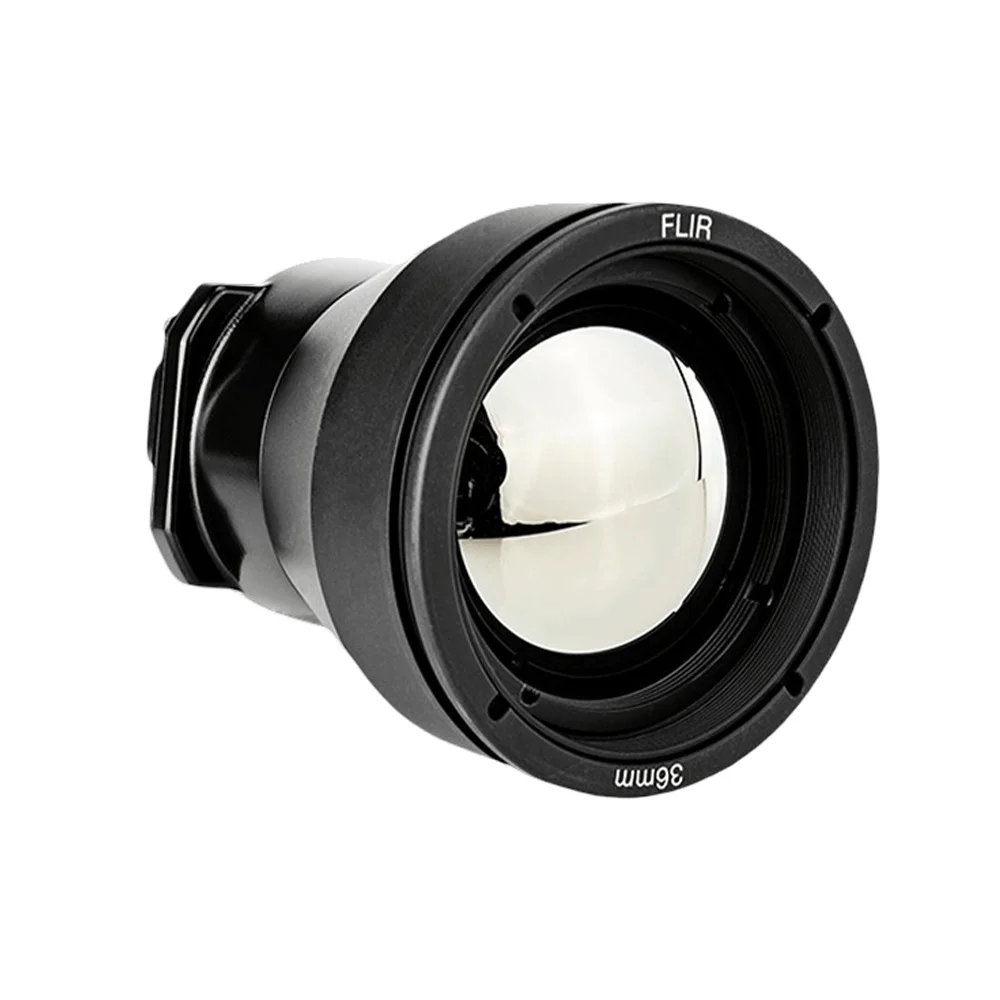

Teledyne Teledyne FLIR Boson+ 22320A006-6PAAX Thermal Camera Module, 320×256 LWIR, 6° HFOV, 36mm Lens

The module provides flexible video output through USB, CMOS, or MIPI interfaces, allowing integration with standard embedded processors and single-board computers. For configuration and control, it offers UART and I2C serial communication protocols, enabling adjustment of parameters like gain, palette, and region-of-interest settings via simple command sets from a host microcontroller.

The module requires a 3.3 VDC power supply. Typical power consumption starts at approximately 500 milliwatts. Ensure your power source can provide stable, clean 3.3V with sufficient current capacity, especially during startup. For optimal performance and to avoid image noise, use a dedicated low-noise LDO regulator and follow the manufacturer's recommended PCB layout guidelines for power and ground planes.

The narrow 6-degree horizontal field of view (HFOV) provided by the 36mm lens is designed for long-range imaging. It concentrates the sensor's 320x256 pixels over a smaller angular area, increasing the effective resolution on distant targets. This makes it ideal for applications like drone-based surveillance, perimeter security on large sites, or industrial inspection where identifying details at hundreds of meters is critical.

Yes, the Boson+ module is engineered for harsh conditions with an operating temperature range of -40°C to +80°C. This allows deployment in freezing cold or hot desert climates without performance degradation. Its robust design is suitable for unmanned aerial vehicles (UAVs), vehicle-mounted systems, and fixed outdoor security installations where environmental resilience is a primary requirement.
