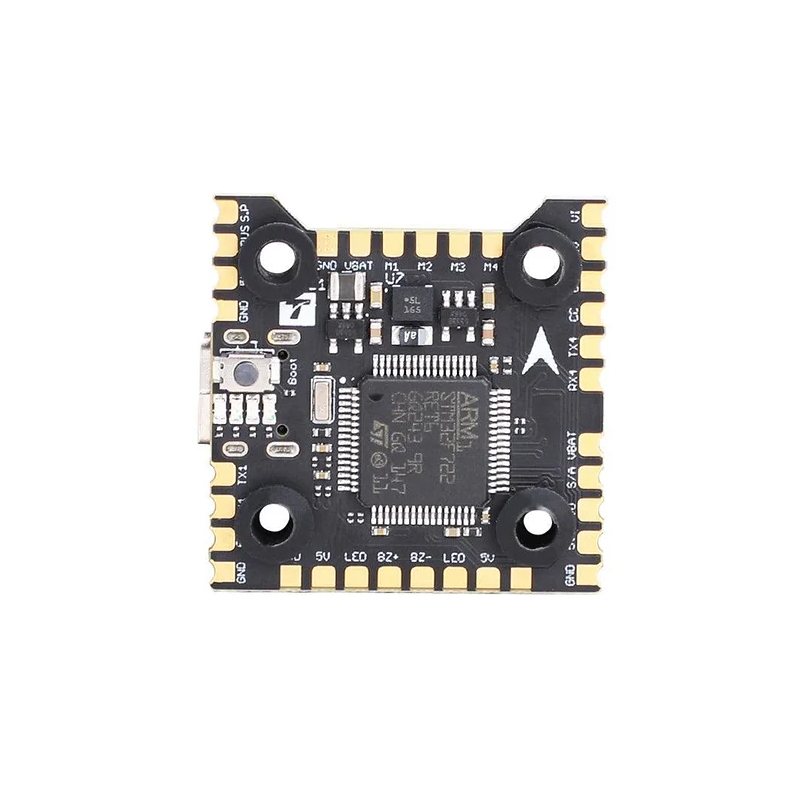

T-Motor MINI Racer F7 Flight Controller

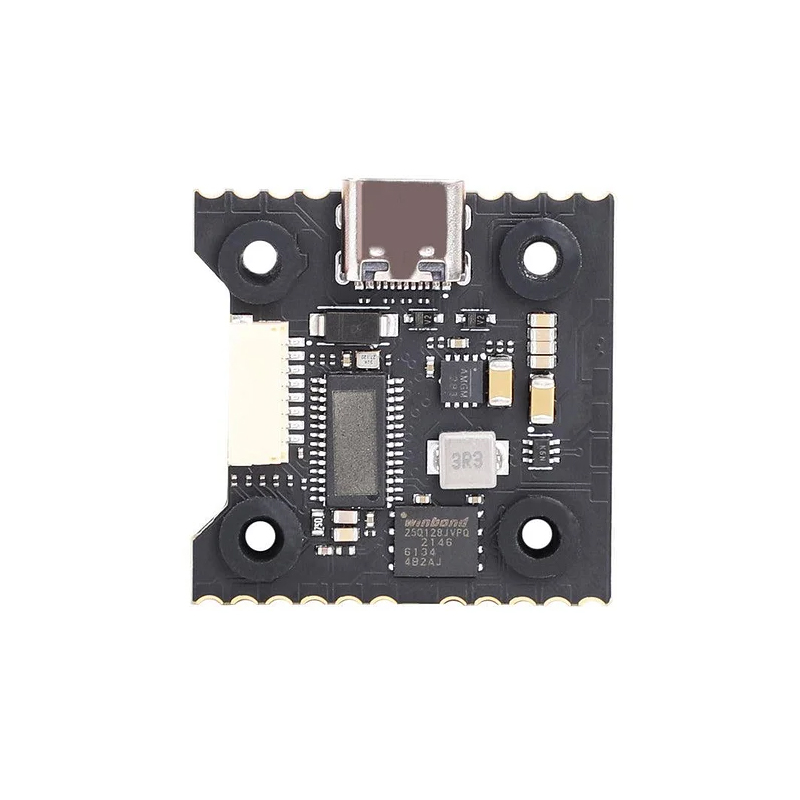

T-Motor MINI Racer F7 Flight Controller - Image 2

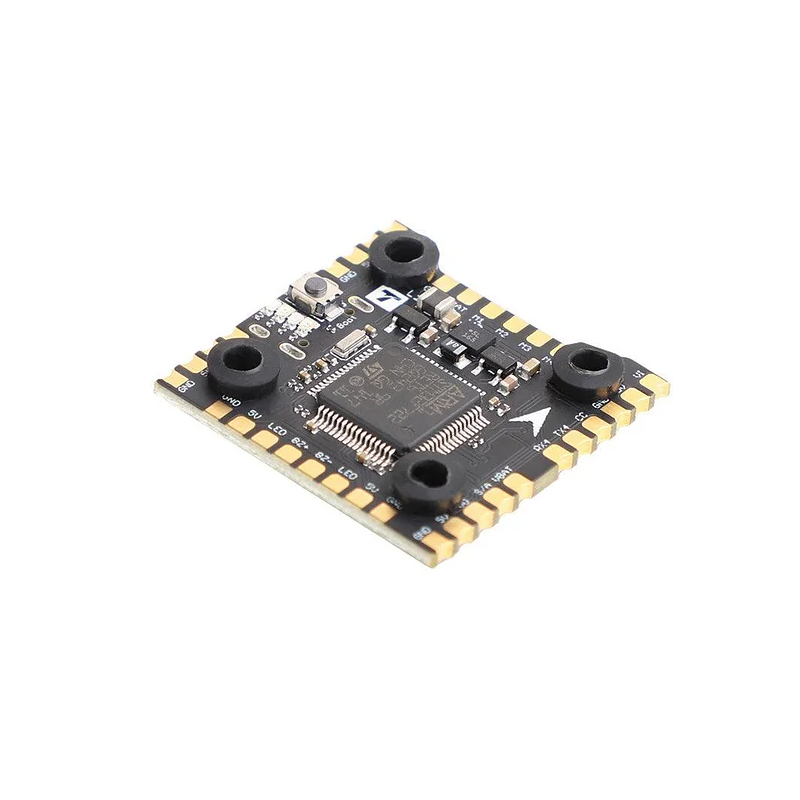

T-Motor MINI Racer F7 Flight Controller - Image 3
SKU: DRFC-1960
📋 GST Invoice Available

T-Motor MINI Racer F7 Flight Controller

₹4,769.00 (Inclusive of all taxes)
Out of Stock

The T-Motor MINI Racer F7 is a compact 20x20mm flight controller designed for high-performance mini racing drones, featuring an STM32F722RET6 MCU, BMI270 gyro, and integrated 16MB Blackbox memory for 3-6S LiPo systems.

Features

  • STM32F722RET6 MCU for high-speed flight processing.
  • BMI270 gyro with low dropout regulator for stable, low-noise performance.
  • Integrated 16MB Blackbox flash memory for detailed flight data logging.
  • Compact 20x20mm (M3) footprint with direct plug-in compatibility for T-Motor F45A/F55A mini ESCs.
  • USB Type-C connectivity supporting configuration and power without a LiPo battery.

Out of stock

Description

The MINI Racer F7 is engineered for demanding mini quadcopter builds where space and weight are at a premium. Its STM32F722RET6 processor provides ample computational headroom for advanced Betaflight filtering and rates, while the dedicated low-dropout regulator for the BMI270 gyro ensures clean sensor data even during aggressive maneuvers.

Built with a robust 6-layer PCB, the controller supports a wide 3-6S LiPo input range and delivers a stable 5V/2A (peak 2.5A) BEC for powering peripherals. The integrated AT7456E OSD chip delivers crisp, customizable on-screen display information directly to your FPV feed.

Key Features

  • High-Performance Core: STM32F722RET6 MCU paired with a high-stability BMI270 IMU for precise flight control.
  • Ample Data Logging: Onboard 16MB flash memory provides extensive storage for Blackbox telemetry and tuning analysis.
  • Robust Power Design: Wide 3-6S LiPo input voltage range with a high-current 5V BEC (2A continuous, 2.5A peak).
  • Optimized Form Factor: Ultra-compact 20x20mm mounting pattern (M3) with a minimal height profile for tight builds.
  • Modern Connectivity: USB Type-C port facilitates easy firmware updates and Betaflight configuration without battery power.
  • Direct ESC Integration: Designed for seamless plug-and-play connection with T-Motor's F45A and F55A mini 4-in-1 ESCs.
  • Professional OSD: Integrated AT7456E OSD chip supports full customization of flight data overlay.

Applications

  • High-performance 2.5-inch to 3.5-inch mini racing drone builds.
  • Compact freestyle and cinewhoop builds requiring a 20x20mm stack format.
  • Ultra-lightweight drone projects where minimal FC weight and size are critical.
  • Builds utilizing T-Motor F45A or F55A 4-in-1 ESCs for a plug-and-play stack solution.

Technical Specifications

Model NameMINI Racer F7 Flight Controller
MCUSTM32F722RET6
GyroBMI270
Blackbox Memory16MB Flash
Input Voltage3-6S LiPo (10.8V - 25.2V)
BEC Output5V @ 2A (2.5A Peak)
OSD ChipAT7456E
USB ConnectorType-C
Mounting Pattern20x20mm (M3 holes)
Dimensions (LxWxH)31mm x 30mm x 5mm
Weight4.7g

Frequently Asked Questions

What is the input voltage range for the MINI Racer F7?

The MINI Racer F7 supports a wide input voltage range from 3S to 6S LiPo batteries, which is approximately 10.8V to 25.2V. This makes it suitable for a broad spectrum of mini drone builds, from lower-power 3S setups to high-performance 6S configurations.

Is this flight controller compatible with Betaflight?

Yes, the T-Motor MINI Racer F7 is fully compatible with Betaflight firmware. Its STM32F722RET6 MCU is a supported target, allowing you to run the latest Betaflight releases and utilize all standard features including advanced filtering, RPM filtering, and the integrated AT7456E OSD.

Does it include a connector for a 4-in-1 ESC?

Yes, the package includes a specific connector wire designed for direct plug-in compatibility with T-Motor's F45A and F55A series mini 4-in-1 ESCs. This allows for a clean, solder-free connection between the flight controller and ESC in a stacked configuration.

Package Includes

  • 1x T-Motor MINI Racer F7 Flight Controller
  • 1x Connector wire (FC to 4-in-1 ESC)
  • 4x Grommets (pre-installed)

Additional Information

Weight 0.0047 kg
Dimensions 3.1 × 3 × 0.5 cm
