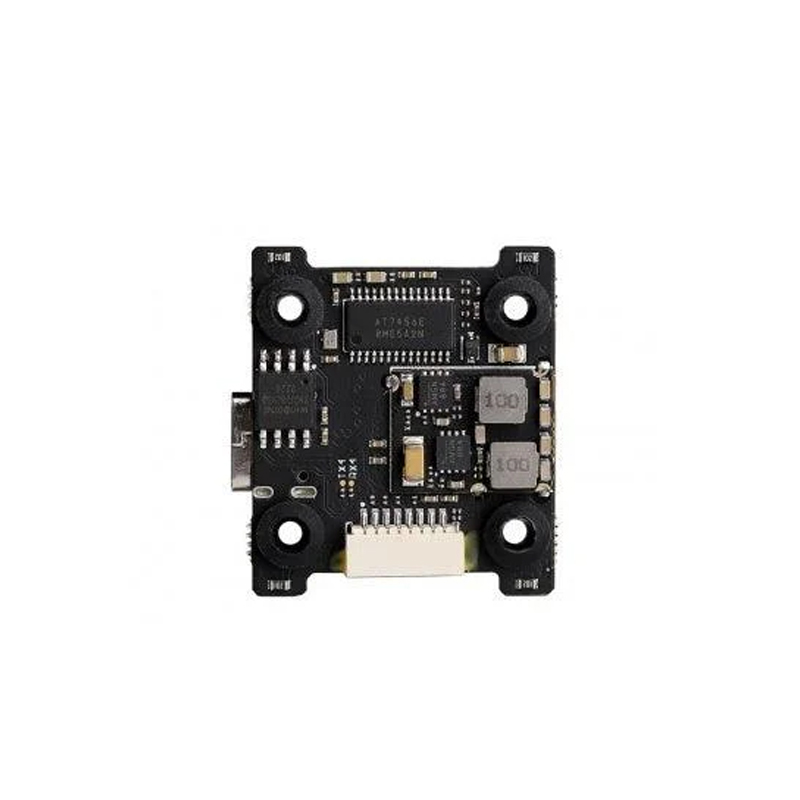

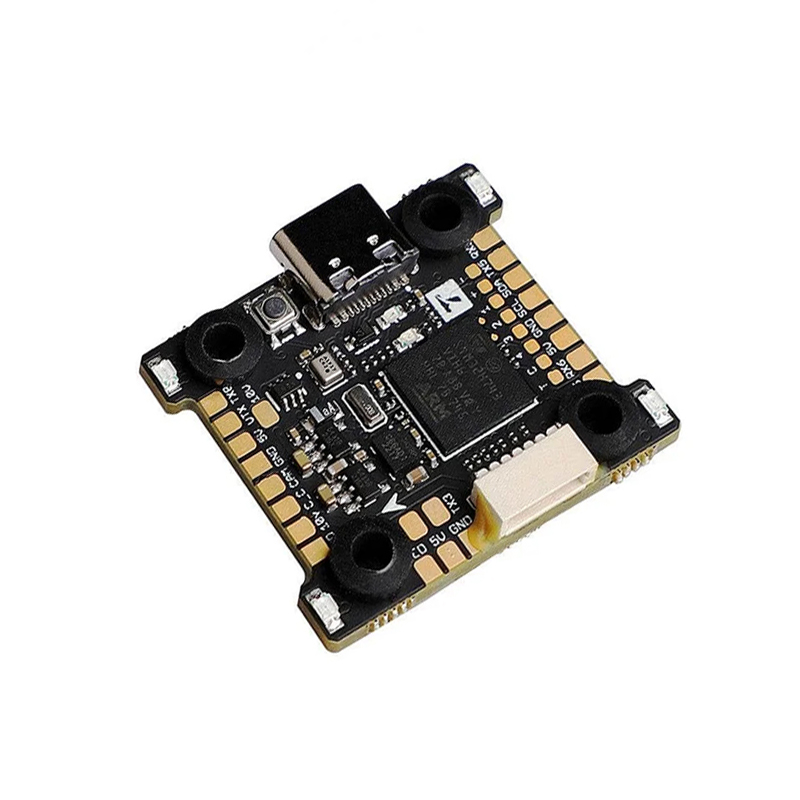

T-Motor H7 MINI Flight Controller BMI270
The T-Motor H7 MINI Flight Controller BMI270 is a compact, high-performance FC built around the STM32H743 MCU and BMI270 gyro for precise control in FPV racing and freestyle drones. It features a DPS310 barometer, 16MB black box, and dual BEC outputs (5V/2A & 10V/1.5A) to support both analog and digital HD video systems on 3-6S LiPo power.
Features
- STM32H743 MCU delivers high-speed, reliable flight control processing.
- BMI270 gyroscope with independent power supply for stable, interference-free sensing.
- Integrated DPS310 barometer provides accurate altitude hold and data.
- 16MB onboard black box storage for detailed flight data logging and analysis.
- Dual BEC outputs: 5V/2A and 10V/1.5A to power HD VTXs, receivers, and peripherals.
Out of stock
The T-Motor H7 MINI Flight Controller is engineered for demanding FPV applications where space and performance are critical. Its compact 27×30.8mm footprint with a 20x20mm/4mm mounting pattern allows seamless integration into tight 3-inch to 5-inch drone frames. The core STM32H743 microcontroller ensures rapid loop times and stable flight characteristics, fully compatible with Betaflight and other open-source firmware.
Advanced sensor integration includes the high-precision BMI270 gyroscope, which is isolated to minimize electrical noise, and a DPS310 barometer for precise altitude data. The board’s robust power design supports a wide 3-6S LiPo input range and provides clean, regulated power via its dual BEC system, making it a versatile foundation for both analog and digital HD FPV builds requiring reliable component power.
Additional Information
| Weight | 0.0051 kg |
|---|---|
| Dimensions | 2.7 × 3.08 cm |
