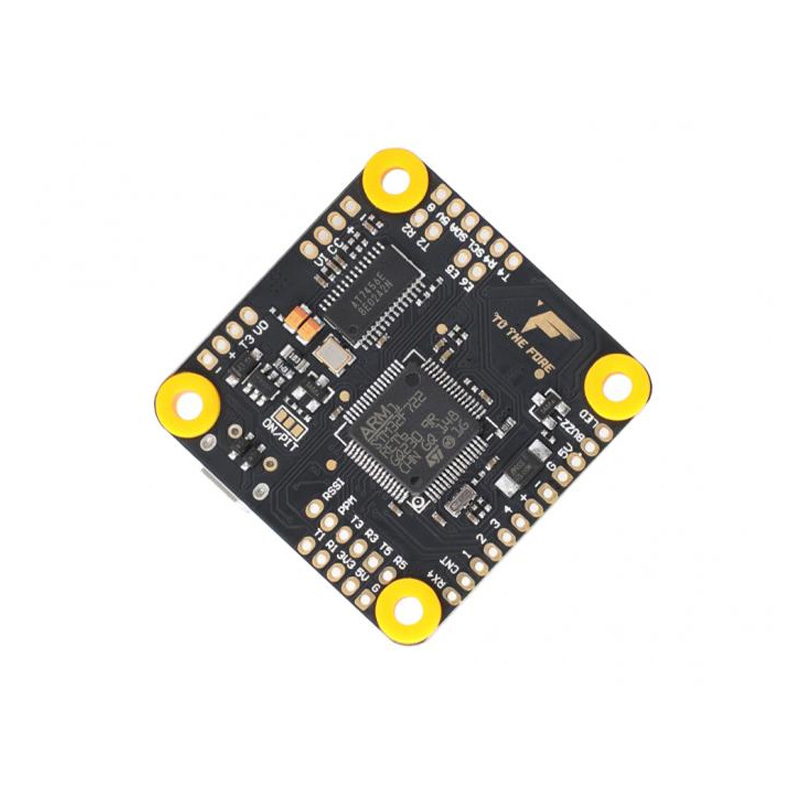

T-Motor F7 Flight Controller F7

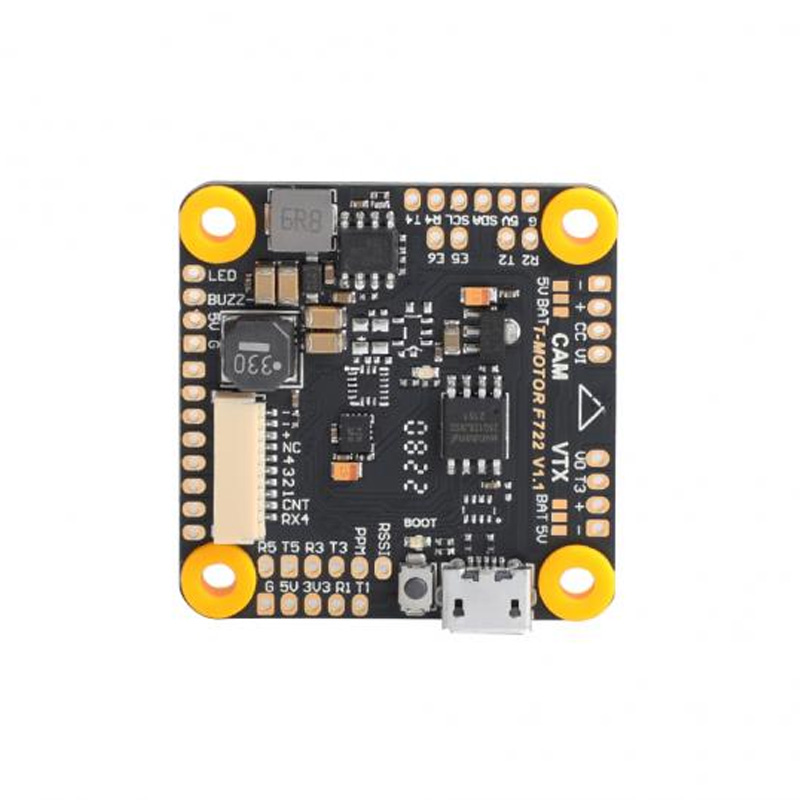

T-Motor F7 Flight Controller F7 - Image 2
SKU: DRFC-1965
📋 GST Invoice Available

T-Motor F7 Flight Controller F7

₹9,019.00 (Inclusive of all taxes)
Out of Stock

The T-Motor F7 Flight Controller is a high-performance F722-based board designed for advanced FPV racing and freestyle drones, offering low-latency processing, seamless DJI Digital FPV system integration, and a logical layout for simplified Betaflight setup on 6S LiPo power systems.

Features

  • Powered by an STM32F722 high-speed processor for superior flight performance and low latency.
  • Integrated 10V 2A BEC provides stable power for DJI Air Units and other peripherals.
  • Designed for seamless integration with T-Motor F45 and F55A ProII ESCs within the T-Motor ecosystem.
  • Analog version optimized for traditional FPV setups with VTX switch function support.
  • Logical, user-friendly component layout simplifies installation and wiring for 30.5×30.5mm mounting.

Out of stock

Description

The T-Motor F7 Flight Controller leverages the computational power of an STM32F722 microcontroller to deliver precise, responsive flight control for demanding FPV applications. Its architecture supports high-speed gyro sampling and advanced filtering algorithms, ensuring smooth handling and stable flight characteristics even in aggressive freestyle or competitive racing scenarios.

Engineered for system-level integration, this controller features dedicated power and signal interfaces for T-Motor’s ESCs and provides plug-and-play compatibility with the DJI Digital FPV system via its onboard 10V regulated BEC. The board’s component placement follows a logical flow, minimizing wire clutter and simplifying the build process for both experienced pilots and those new to high-performance drone assembly.

Key Features

  • F722 Processor Core: Delivers faster calculation speeds and more sensitive response for complex flight algorithms and PID tuning.
  • DJI Digital FPV Ready: Integrated 10V 2A BEC ensures stable, clean power for DJI Air Units and Vista systems without external regulators.
  • T-Motor Ecosystem Compatibility: Designed for optimal performance when paired with T-Motor F45 and F55A ProII ESCs, enabling unified telemetry and control.
  • Analog-Optimized Design: Tailored for traditional analog FPV systems with dedicated VTX control and camera voltage selection.
  • Robust Power Handling: Supports direct input from 6S LiPo batteries (up to 25.2V), with robust filtering for clean board power.
  • Streamlined Build Layout: Intelligent pinout and connector placement facilitate a clean, professional build with minimal wiring complexity.

Applications

  • High-performance 5-inch and 7-inch FPV racing drones requiring precise control and low latency.
  • Freestyle quadcopters utilizing 6S LiPo batteries and DJI Digital HD FPV systems.
  • Custom builds within the T-Motor ecosystem pairing with F45 or F55A ProII ESCs.
  • Analog FPV setups where direct VTX power and control switching are desired.

Technical Specifications

Item TypeFlight Controller
ProcessorSTM32F722
Input Voltage6S LiPo (Up to 25.2V)
Onboard BEC10V 2A
Mounting Pattern30.5x30.5mm
Weight7.7 g
System CompatibilityBetaflight, DJI Digital FPV, Analog VTX
Primary InterfaceUART, I2C, SPI, USB-C

Frequently Asked Questions

What is the input voltage range for the T-Motor F7 Flight Controller?

The T-Motor F7 Flight Controller is designed for 6S LiPo battery input, supporting a voltage range up to 25.2V. It features robust onboard power filtering to ensure stable operation for the processor and peripherals under high-current loads typical in FPV racing and freestyle applications.

Is this flight controller compatible with the DJI Digital FPV System?

Yes, this analog version of the T-Motor F7 FC includes an integrated 10V 2A BEC specifically designed to provide clean, stable power for DJI Air Units and CaddxFPV Vista systems. It offers plug-and-play connectivity, eliminating the need for an external voltage regulator.

What ESCs is this flight controller designed to work with?

This controller is engineered for seamless integration within the T-Motor ecosystem. It is optimized to pair with T-Motor's F45 and F55A ProII ESCs, supporting unified telemetry and streamlined wiring for a cohesive high-performance powertrain in your FPV build.

What mounting pattern does the T-Motor F7 FC use?

The flight controller uses the standard 30.5x30.5mm mounting hole pattern, compatible with the vast majority of FPV drone frames. It is secured using M3 standoffs, allowing for easy installation and integration with standard stack components.

Package Includes

  • 1 x T-Motor F7 Flight Controller

Additional Information

Weight 0.0077 kg
Dimensions 7 × 7 × 3 cm
