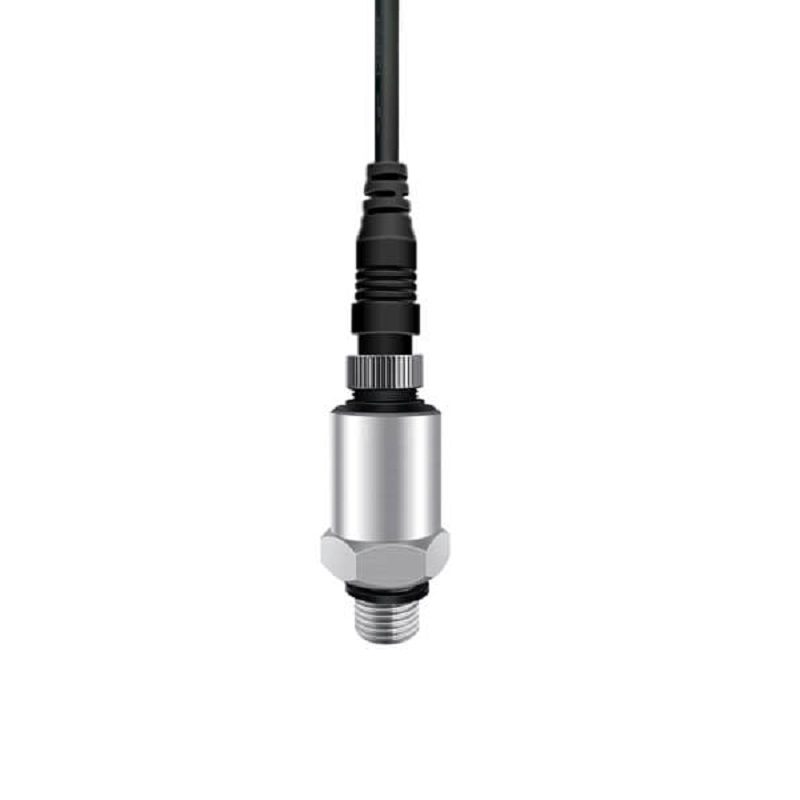

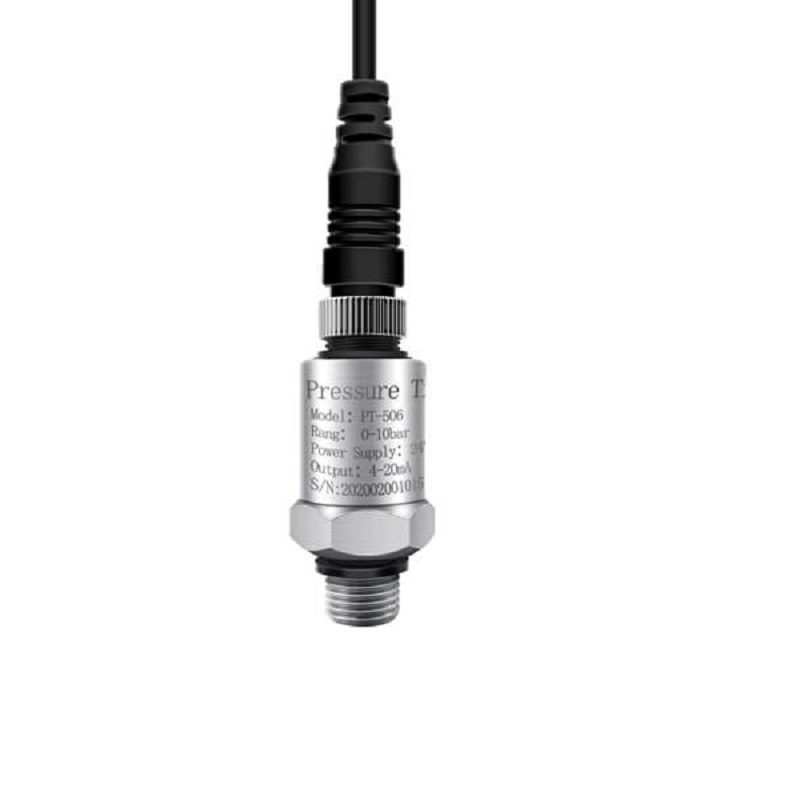

OULD PT-506 Water Pressure Transmitter (0-1.6MPa) - 4-20mA Output
The OULD PT-506 is a 4-20mA output pressure transmitter designed for industrial water system monitoring, compatible with PLCs, SCADA, and data acquisition systems. It provides reliable measurement of water pressure up to 1.6 MPa with robust water hammer resistance.
Features
- 4-20mA two-wire current loop output for robust long-distance signal transmission.
- 0-1.6 MPa pressure measurement range with 0.5-1% FS accuracy.
- 24VDC supply voltage standard for industrial control panel integration.
- Water hammer resistant and waterproof design for harsh hydraulic environments.
- Compact, low-profile form factor (90mm length) for space-constrained installations.
Out of stock
The OULD PT-506 Water Pressure Transmitter employs a high-stability piezoresistive sensing element paired with an advanced signal conditioning ASIC. This integration provides precise conversion of mechanical pressure into a standardized 4-20mA analog signal, ensuring high immunity to electrical noise and voltage drop over extended cable runs. The transmitter’s internal MCU and EEPROM allow for programmable calibration and configuration, supporting field adjustments.
Engineered for demanding water and HVAC applications, the PT-506 features a robust housing and sealing design that protects against water ingress and mitigates the damaging effects of pressure spikes and water hammer. Its wide operating temperature range from -40°C to 85°C ensures reliable performance in both outdoor and industrial environments, delivering long-term stability and a high performance-to-cost ratio.
Additional Information
| Weight | 0.117 kg |
|---|---|
| Dimensions | 9 × 2.15 cm |
