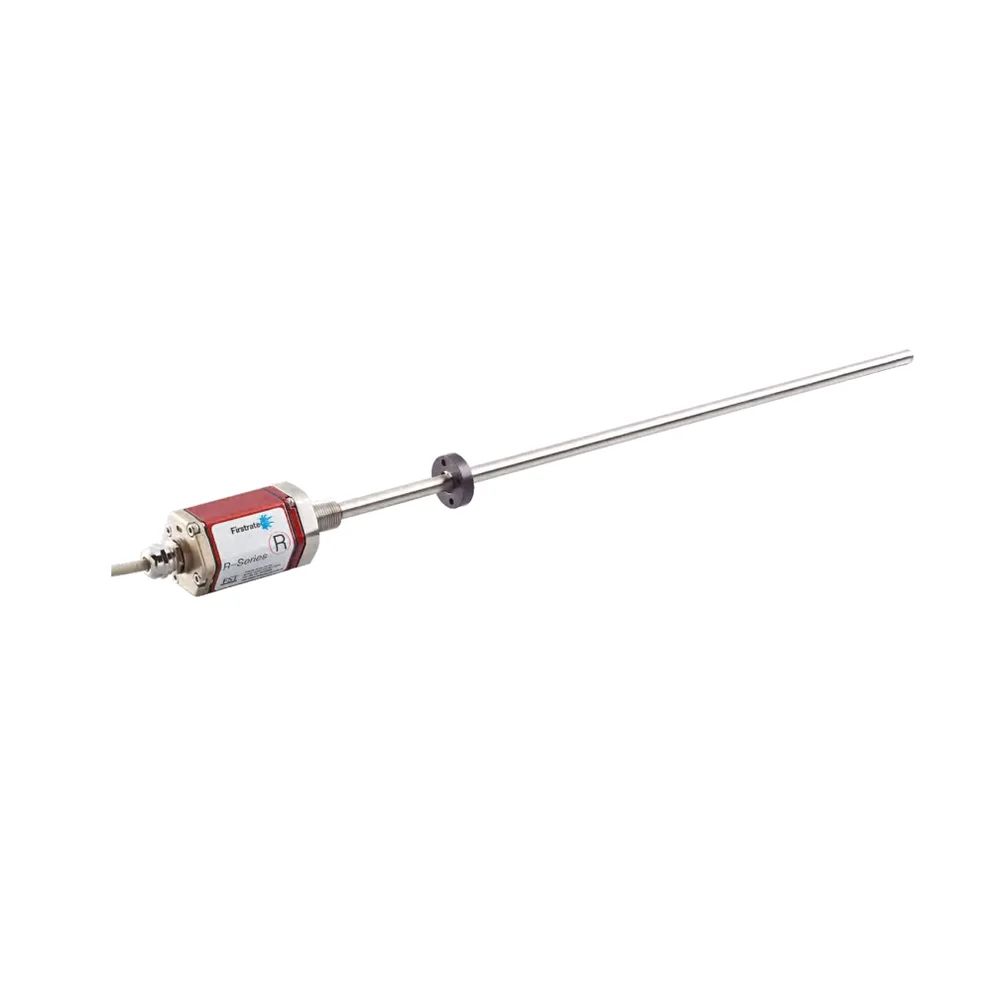

FirstRate FST400-1000 Magnetostrictive Displacement Sensor, 950-1000mm Range, 4-20mA Output, M18x1.5 Port, IP67

The FST400-1000 uses a standard two-wire 4-20mA loop. Connect the positive supply terminal (24VDC+) to the sensor's power input, and connect the sensor's output terminal to the positive input of your PLC or receiver's analog input module. The negative input of your receiver and the sensor's ground/common terminal are then connected back to the 24VDC- supply to complete the loop. The current draw corresponds directly to the measured position.

The included ring magnet must be mounted securely onto the moving target (e.g., a piston rod) using the provided fastening screw and non-magnetic gasket. Ensure the magnet's orientation is correct and that it moves axially along the sensor's rod without physical contact. The magnet should be positioned within the sensor's 950-1000mm stroke range, and all mounting hardware should be tightened to the specified torque to prevent slippage.

Yes, the FST400-1000 is specifically designed with a pressure-resistant outer tube and an M18x1.5 threaded port for direct integration into hydraulic or pneumatic manifolds. Its robust construction and IP67 rating make it suitable for environments with oil, water spray, and high pressure. Always verify the sensor's maximum pressure rating against your specific system requirements before installation.

The accuracy specification defines the maximum permissible error relative to the full scale (FS) of the 950-1000mm range. The ±0.1%FS version offers higher precision (error within ±1mm), ideal for critical control applications. The ±0.3%FS version (error within ±3mm) provides a high-value build for applications where ultimate precision is less critical. The specific accuracy of your unit will be indicated on its product certification.
