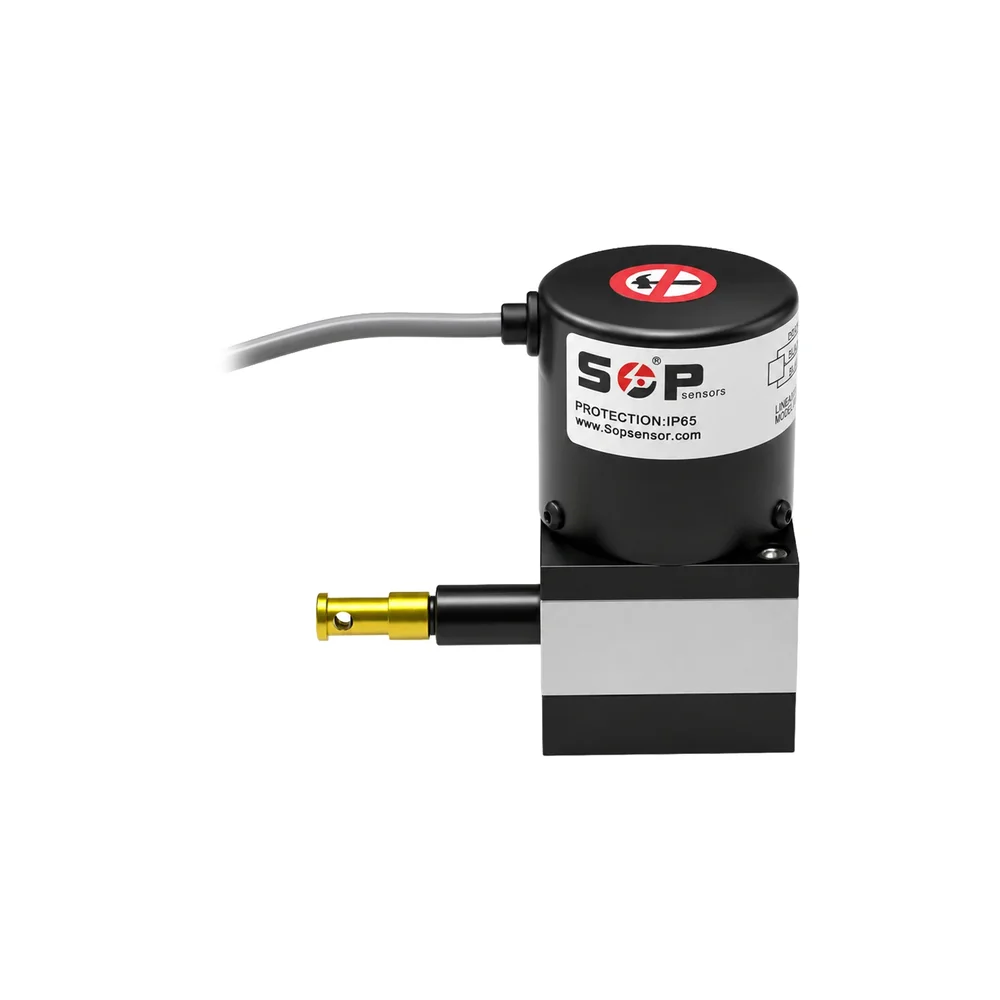

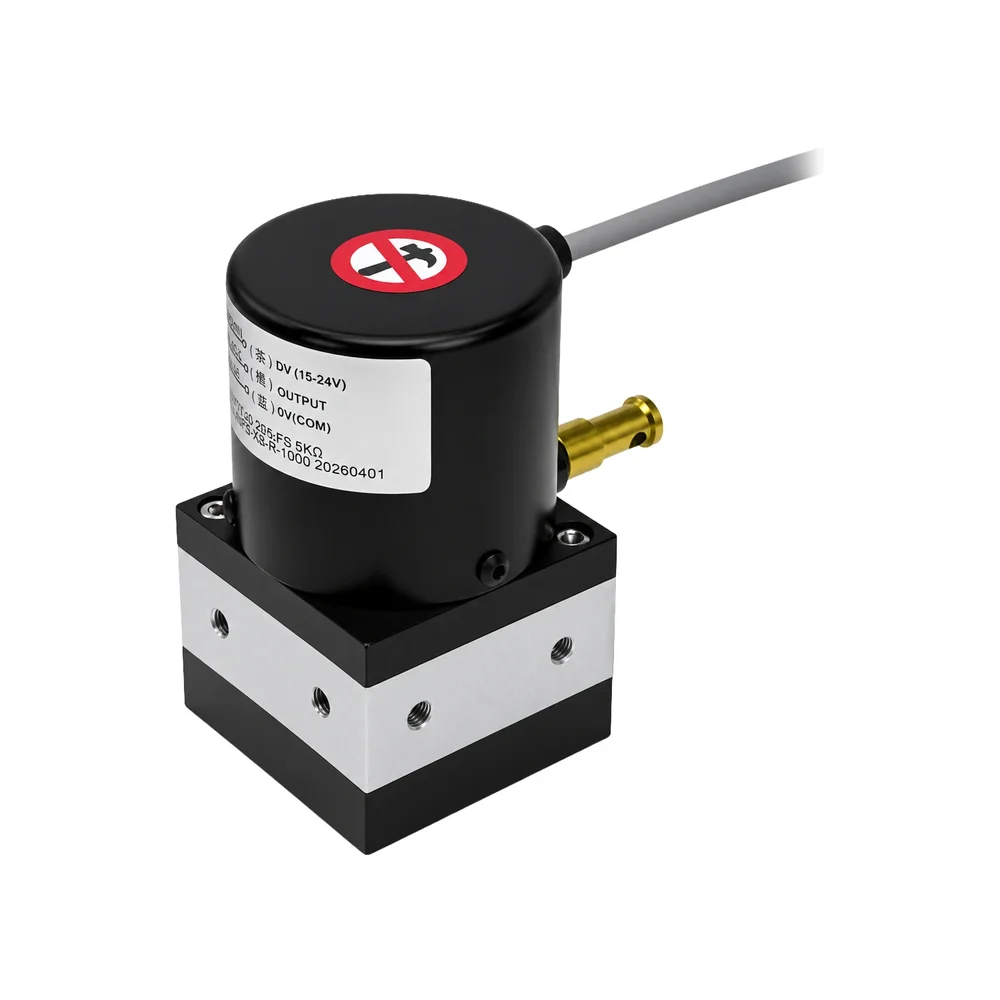

SOP WPS-XS-R-1000 Draw Wire Linear Displacement Sensor, 1000mm Stroke, 5KΩ Analog Output, 24VDC, 1m Cable
The SOP WPS-XS-R-1000 is a high-precision draw-wire displacement sensor with a 1000mm stroke, delivering a 5KΩ analog resistive output for seamless integration with PLCs, industrial controllers, and data acquisition systems operating on a 24VDC supply.
Features
- 1000mm stroke length for long-range linear displacement measurement.
- 5KΩ analog resistive output ensures stable, noise-resistant signal transmission.
- High precision with linearity of ±0.05%–0.08% and repeatability of 0.005%.
- Rugged IP65-rated aluminum alloy housing for reliable operation in industrial environments.
- Supplied with a 1-meter cable and mounting hardware for flexible installation.
Out of stock
The SOP WPS-XS-R-1000 operates on a precision resistive potentiometer principle, where the draw-wire extension directly alters the internal wiper position, providing a proportional resistance change. This robust sensor is engineered for stable performance across an extensive operating temperature range from -40°C to +80°C, making it suitable for harsh industrial settings.
Its IP65 protection rating safeguards against dust ingress and water jets, while the durable aluminum alloy construction and stainless steel draw-wire ensure long-term mechanical reliability. The sensor outputs a clean 5KΩ analog signal, compatible with standard analog input modules, facilitating straightforward integration into automation and motion control architectures.
Additional Information
| Weight | 0.368 kg |
|---|---|
| Dimensions | 9 × 8.5 × 4.8 cm |
