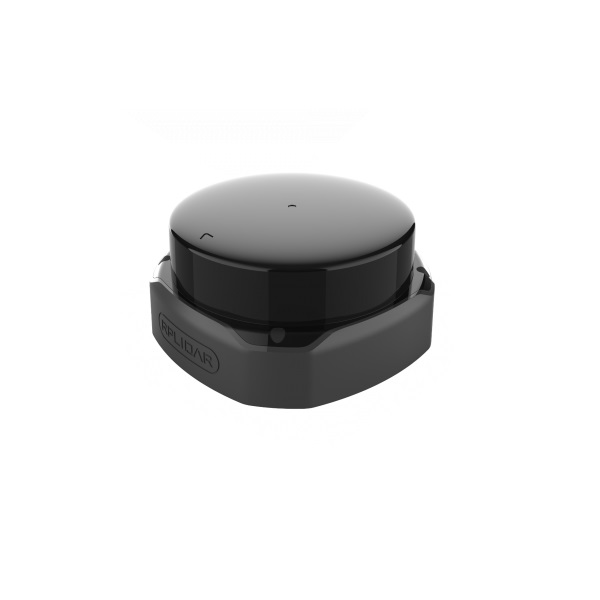

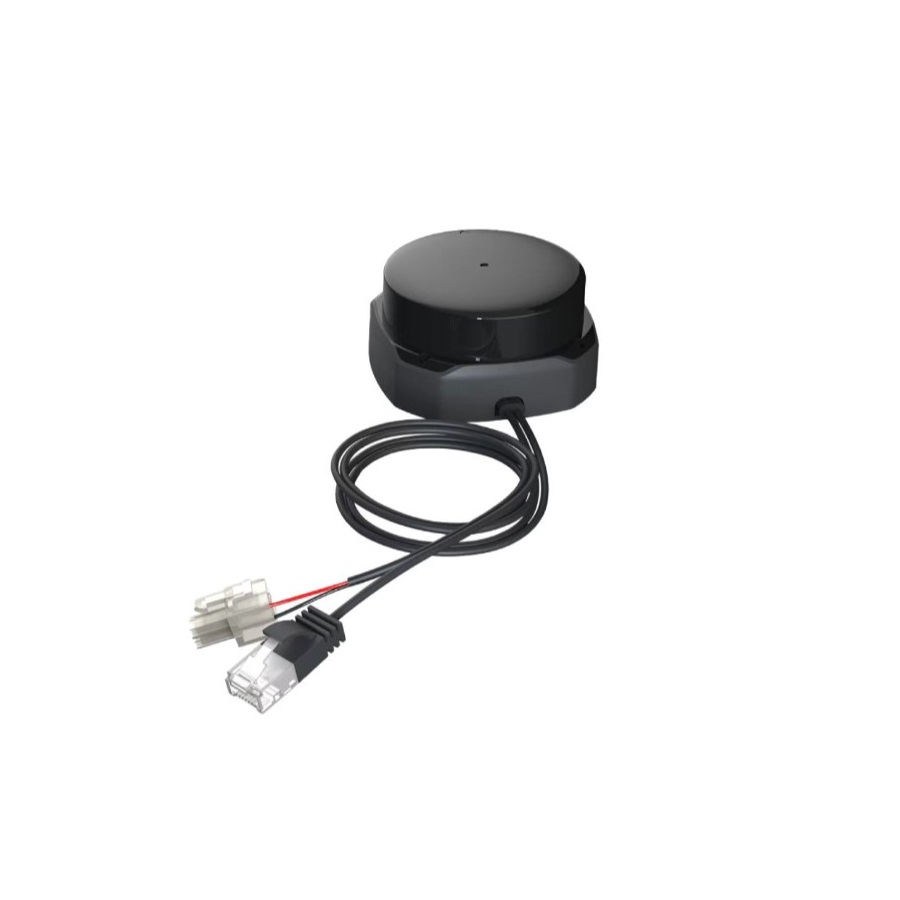

Slamtec RPLiDAR S2E S2M1-R2E 360° Laser Range Scanner - 30m Range, 2D Point Cloud, IP65, Ethernet UDP
The Slamtec RPLiDAR S2E (S2M1-R2E) is a 360° Direct Time-of-Flight (DToF) laser scanner delivering 2D point cloud data up to 30m with ≤30mm accuracy. Featuring Ethernet UDP connectivity, IP65 ingress protection, and IEC-60825 Class 1 eye-safe laser power, it is engineered for integration into autonomous robots, AGVs, and industrial mapping systems.
Features
- 360° DToF Laser Scanning: Generates 2D point cloud maps with a 30m radius and ≤30mm accuracy.
- High-Speed Data Acquisition: Operates at a 32KHz sampling frequency and 10Hz rotational speed.
- Robust Environmental Performance: IP65-rated housing withstands dust and water jets, with operation from -10°C to 50°C.
- High Ambient Light Immunity: Maintains reliable performance under ambient light up to 80,000 lux.
- Ethernet UDP Interface: Simplifies system integration with direct network connectivity for real-time data streaming.
Out of stock
The RPLiDAR S2E employs a Direct Time-of-Flight (DToF) laser measurement principle, emitting and timing the return of laser pulses for highly precise distance calculation. This method provides superior performance over triangulation-based sensors, offering greater precision, longer range, and higher sampling rates in varied lighting conditions.
Engineered for durability, the scanner utilizes OPTMAG light magnetic fusion technology in its brushless motor, designed to support over five years of continuous operation. Its compact, IP65-sealed aluminum housing ensures reliable performance in both indoor and outdoor industrial environments, from warehouse logistics to autonomous navigation.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 7.7 × 7.7 × 3.85 cm |
