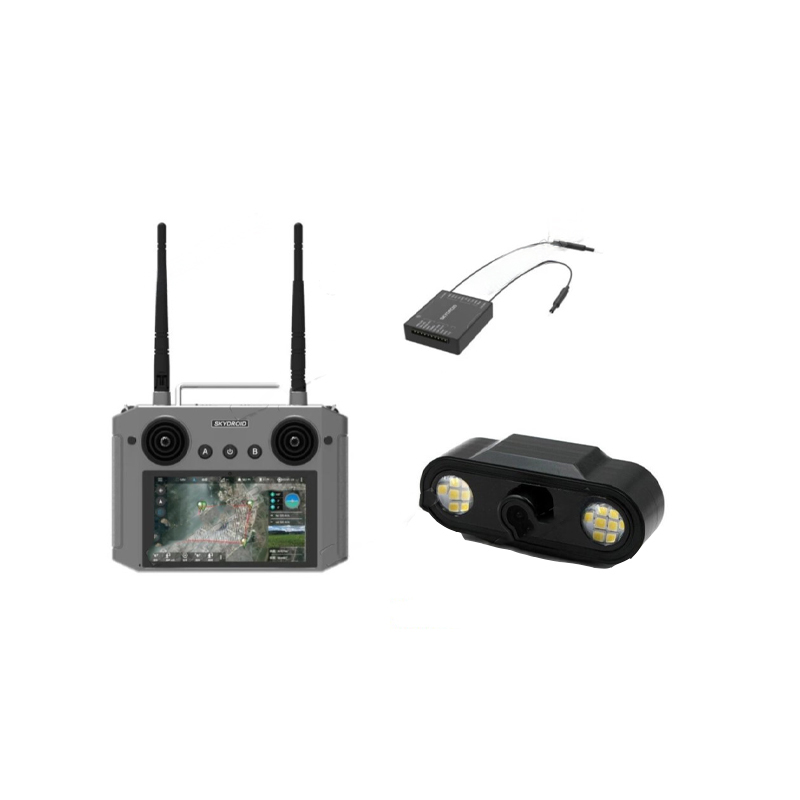

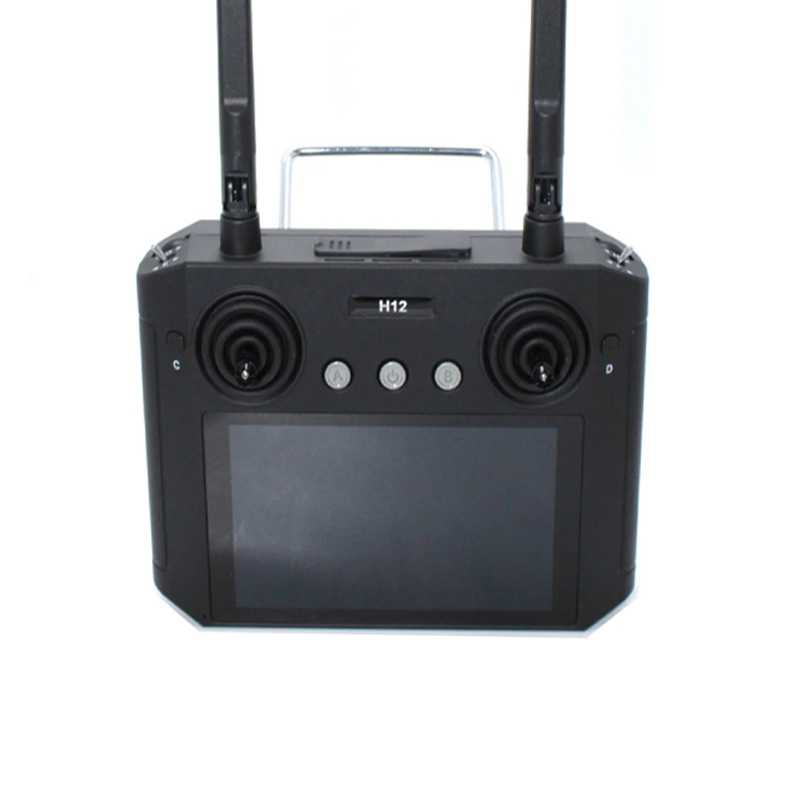

Skydroid H12 Inbuild Display Remote Control with 3 in 1 Camera
The Skydroid H12 is an industrial-grade Android-based ground control station integrating a 5.5-inch touchscreen display, a 30 km long-range radio, and a Snapdragon 625 processor. Designed for professional UAV and UGV operations, it provides a rugged, all-in-one solution for controlling platforms running Pixhawk, CUAV, Ardupilot, and PX4 autopilots.
Features
- 5.5-inch Android HD touchscreen with Qualcomm Snapdragon 625 processor for on-device mission planning and video decoding.
- 30 km long-range transmission using FHSS and SDR technology across the 2.400–2.483GHz band.
- 12-channel control with multi-interface support including PPM, SBUS, UART, USB, and a SIM slot for cellular connectivity.
- Rugged, weather-resistant build rated for operation from -10°C to +55°C and up to 85% humidity.
- Integrated 10,000mAh Li-ion battery providing 6–20 hours of operational endurance.
Out of stock
The Skydroid H12 Display Remote Control consolidates the functions of a transmitter, telemetry display, and video monitor into a single, hardened unit. Its industrial design prioritizes reliability in harsh field conditions, such as agricultural spraying and mapping, eliminating the need for separate tablets or external ground stations. The integrated Android OS allows for direct installation of mission planning apps and provides a responsive interface for real-time control and data visualization.
Engineered for seamless integration, the H12 communicates via standard protocols (PPM, SBUS) and serial interfaces (UART) compatible with major open-source flight controllers. The built-in high-capacity battery and efficient processor ensure extended mission times without external power, making it a dedicated command center for professional drone and robotic vehicle fleets.
Additional Information
| Weight | 0.65 kg |
|---|---|
| Dimensions | 18 × 16 cm |
