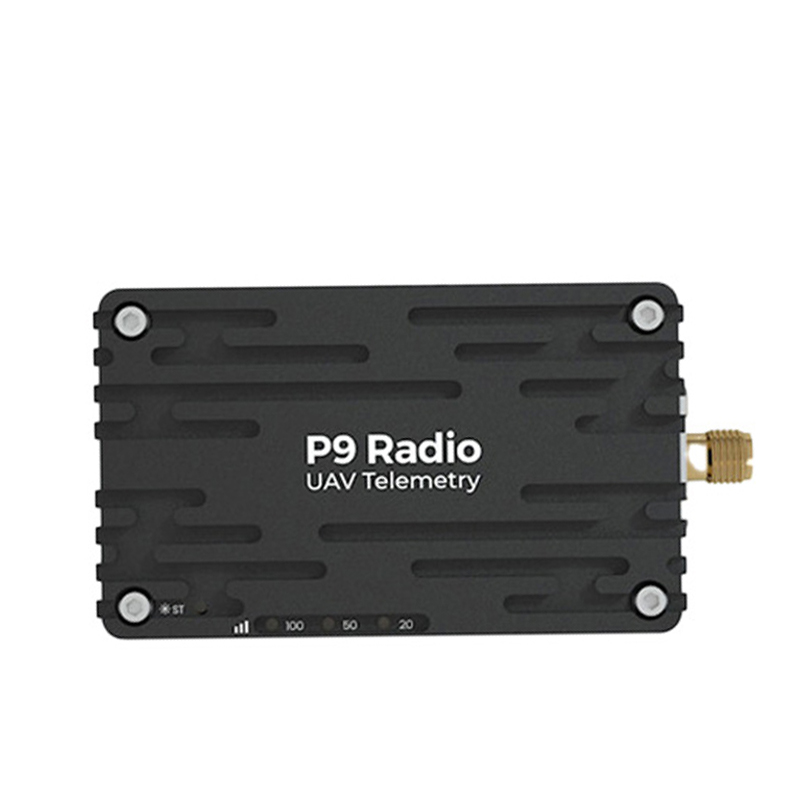

CUAV P9 Radio Telemetry Module - Sky and Base Unit
CUAV P9 Radio Telemetry Module - Sky and Base Unit - Image 2

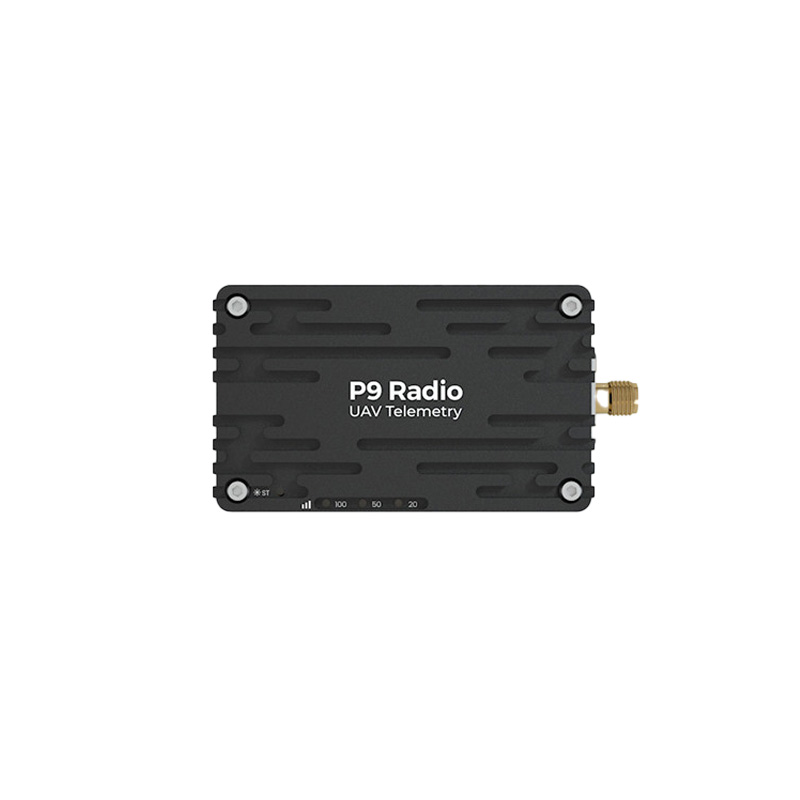

CUAV P9 Radio Telemetry Module - Sky and Base Unit - Image 3

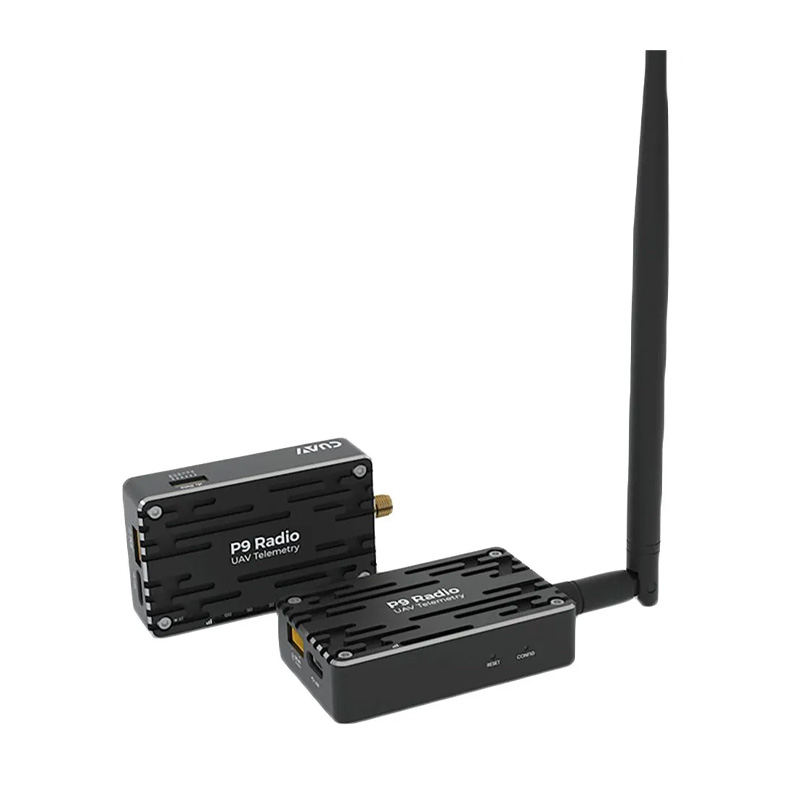

CUAV P9 Radio Telemetry Module - Sky and Base Unit - Image 4
SKU: DRFC-2111
📋 GST Invoice Available

CUAV P9 Radio Telemetry Module - Sky and Base Unit

₹59,049.00 (Inclusive of all taxes)
Out of Stock

The CUAV P9 is a professional-grade 902-928MHz radio telemetry module designed for long-range UAV communication, supporting up to 40 km range and a 276 Kbps data rate. It features a wide 12-60V input voltage range compatible with 3S-12S LiPo batteries and integrates seamlessly with Pixhawk and other flight controllers via TTL and USB interfaces.

Features

  • Ultra-long-range telemetry with up to 40 km communication distance in the 902-928MHz band.
  • High-speed data transmission at 276 Kbps for real-time telemetry and MAVLink data exchange.

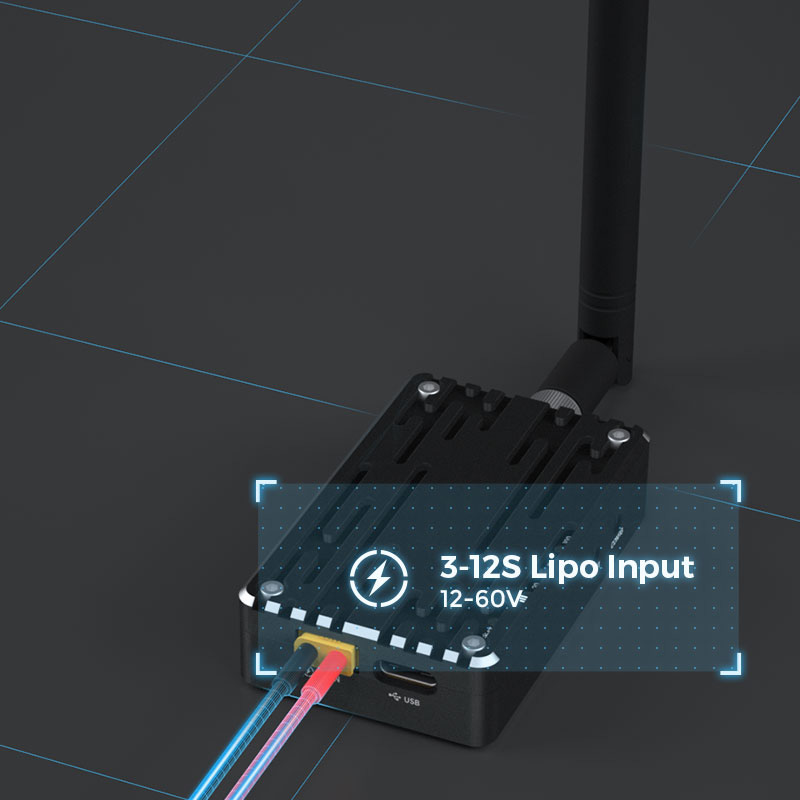

  • Wide 12-60V input voltage range (3S-12S LiPo) eliminates the need for an external BEC.
  • Supports point-to-point, point-to-multiple, and relay communication modes for flexible deployment.
  • Robust error correction and low power consumption with sleep, idle, RX, and TX modes.

Out of stock

Description

The CUAV P9 Radio Telemetry Module is engineered for demanding unmanned systems requiring reliable, long-distance data links. Operating in the 902-928MHz ISM band, it provides a robust communication channel for telemetry, command, and control, with advanced error-correction protocols ensuring data integrity over extended ranges. Its high sensitivity and configurable transmit power up to 1000mW adapt to various operational environments and regulatory requirements.

Built for integration, the module features dual TTL and USB Type-C interfaces, allowing easy switchover between the airborne (Sky) and ground station (Base) units. The efficient thermal design and wide operating temperature range from -40°C to 85°C ensure stable performance in extreme conditions, making it suitable for commercial, industrial, and advanced hobbyist UAV applications.

Key Features

  • Long-Range 902-928MHz RF Link: Provides up to 40 km line-of-sight range for reliable telemetry and control.
  • High Data Rate & Low Latency: Delivers 276 Kbps throughput for real-time MAVLink data transmission.
  • Wide Voltage Input & High Efficiency: Accepts 12-60V directly from flight packs, with optimized power states for extended flight times.
  • Robust Error Correction: Implements Hamming, BCH, Golay, Reed-Solomon, and Viterbi codes with 32-bit CRC and ARQ for data integrity.
  • Dual Interface Flexibility: Integrated TTL serial and USB Type-C ports enable seamless switching between air and ground units.
  • Configurable RF Power: Adjustable transmit power from 100mW to 1000mW (20-30dBm) to balance range and regulatory compliance.
  • Industrial Temperature Rated: Operates reliably from -40°C to +85°C for missions in harsh environments.
  • SMA Antenna Interface: Standard SMA inner needle connector compatible with a wide range of 915MHz antennas.

Applications

  • Long-range mapping and surveying drones requiring stable telemetry links beyond visual line of sight (BVLOS).
  • Industrial inspection and monitoring UAVs for infrastructure, agriculture, or energy sectors.
  • Heavy-lift cargo and delivery drones needing reliable command and control over extended distances.
  • Advanced FPV and autonomous research platforms utilizing MAVLink for ground station communication.
  • Search and rescue (SAR) and public safety drones where robust, long-range data transmission is critical.

Technical Specifications

ModelCUAV P9
Frequency Band902-928MHz
Max Transmission DistanceUp to 40 km
Data RateUp to 276 Kbps
Error Detection/ControlHamming, BCH, Golay, Reed-Solomon, Viterbi, 32-bit CRC, ARQ
RF Sensitivity-109 dBm @ 115.2kbps, -108 dBm @ 172.8kbps, -106 dBm @ 230.4kbps
Max Transmit Power100mW - 1000mW (20-30 dBm), Default: 1000mW
Antenna Gain3 dBi
Baud Rate Range300 bps to 230 kbps (57600 default)
Operating ModesPoint-to-Point, Repeat (Relay) Mode
Input Voltage12V - 60V (3S-12S LiPo)
Input Current2.5A max
Current ConsumptionSleep: < 1 mA, Idle: < 20 mA, RX: 45-98 mA, TX (peak): 2A
Antenna InterfaceSMA (inner needle)
Power ConnectorXT30PW-M
USB InterfaceUSB Type-C
Serial InterfaceGHR-06V-S (TTL)
Operating Temperature-40°C to +85°C

Frequently Asked Questions

What is the maximum operational range of the CUAV P9 telemetry module?

The CUAV P9 is rated for communication distances up to 40 kilometers under ideal line-of-sight conditions. Actual range can be influenced by antenna selection, transmit power settings, local RF interference, and physical obstacles. The module's configurable RF power output from 100mW to 1000mW allows you to optimize for range or regulatory compliance.

What flight controllers and ground control stations is the CUAV P9 compatible with?

The P9 is designed for seamless integration with Pixhawk-series flight controllers (using the included Pixhawk data cable) and other autopilots via its TTL serial (GHR-06V-S) interface. It communicates using the standard MAVLink protocol, making it compatible with ground control software like QGroundControl, Mission Planner, and MAVProxy when connected via its USB Type-C port.

How do I power the CUAV P9 modules, and do they need a separate BEC?

The P9 modules accept a wide input voltage range of 12V to 60V, corresponding to 3S to 12S LiPo batteries. This eliminates the need for an external BEC. You can power the airborne (Sky) unit directly from your drone's main flight pack via the provided XT30 cables and power the ground (Base) unit using a suitable battery or bench power supply within the voltage range.

What are the different communication modes supported by the P9?

The CUAV P9 supports two primary operating modes: Point-to-Point for direct communication between one air and one ground unit, and Repeat (Relay) Mode. In Relay Mode, multiple P9 modules can be configured to extend the network range or create a communication bridge, which is useful for complex missions or non-line-of-sight operations.

Package Includes

  • 1 x CUAV P9 Radio Telemetry Module (Sky/Air Unit)
  • 1 x CUAV P9 Radio Telemetry Module (Base/Ground Unit)
  • 2 x 915 MHz Antenna
  • 1 x V5/X7 Series Data Cable (25 cm)
  • 1 x Pixhawk Data Cable (25 cm)
  • 1 x XT30 Single-End Power Cable (25 cm)
  • 1 x XT30 to XT60 Power Cable (25 cm)
  • 1 x Type-C Cable

Additional Information

Weight 0.22 kg
Dimensions 18 × 12 × 6 cm
