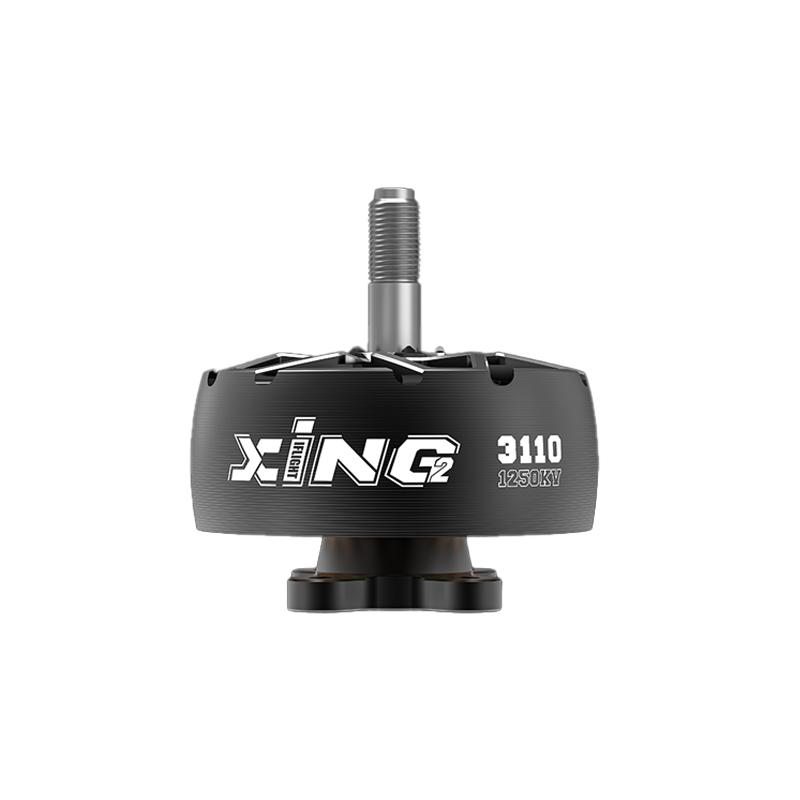

iFlight XING2 3110 FPV Motor Unibell - 1250KV

Name: iFlight XING2 3110 FPV Motor Unibell - 1250KV
Brand: iFlight
SKU: DRFC-2763
Price: 6029.00 INR
Availability: OutOfStock

₹6,029.00 (Inclusive of all taxes)

Out of Stock

The iFlight XING2 3110 is a high-performance 1250KV brushless motor engineered for 7-9 inch Cinelifter and long-range FPV drones, featuring a 5mm titanium shaft, 7075 aluminum unibell, and N52H curved arc magnets for rapid throttle response and high efficiency.

Features

1250KV rating optimized for 6S-8S LiPo power on large propellers.
5mm titanium alloy shaft for maximum crash resistance and durability.
7075 aluminum unibell construction with dynamic balancing for smooth operation.
Center-slotted N52H curved arc magnets for drastically reduced motor response time.
High-quality NSK 11x5x5 bearings with O-ring gap protection against debris.

Out of stock

Get Notified When Available

Description

The XING2 3110 motor represents a significant evolution in iFlight’s motor lineup, designed to address the translational delay inherent in brushless motors. By implementing center-slotted N52H curved arc magnets, the motor achieves a faster magnetic response, translating PID loop corrections more quickly for a locked-in flight feel. This is critical for the precise control demanded by heavy-lift cinematography drones.

Engineering advancements include a minimized magnet air gap and stator lamination, which reduces magnetic reluctance and increases flux density. This results in higher electrical efficiency and greater power output from the same input. The robust 5mm titanium shaft is press-fitted into the 7075 aluminum bell, creating a crash-resistant unibell structure that maintains integrity under high stress.

Key Features

High-Response Magnet System: Center-slotted N52H curved arc magnets drastically reduce acceleration and braking latency for precise control.
Durable Unibell Construction: 7075 aluminum bell press-fitted onto a 5mm titanium shaft provides exceptional impact resistance.
Premium Bearing Assembly: NSK 11x5x5 bearings ensure smooth, long-lasting rotation, protected by an integrated O-ring seal.
Optimized Magnetic Circuit: Reduced air gap between stator and magnets maximizes magnetic flux for improved efficiency and power.
Motor Wire Protector: Reinforced exit point for phase wires prevents damage from vibration and crashes.
Dynamically Balanced: Factory-balanced rotor minimizes vibrations for smoother video footage and reduced frame stress.
Heavy-Duty Mounting: 19x19mm M3 mounting pattern with 10mm screws included for secure installation on large frames.

Applications

7-inch and 8-inch Cinelifter drones for professional cinema camera payloads.
Long-range endurance FPV drones requiring efficient, high-torque propulsion.
Heavy-lift industrial or agricultural UAV platforms.
Large-scale freestyle or racing quads where smooth, powerful throttle response is critical.

Technical Specifications

Motor Model	XING2 3110
KV Rating	1250 KV
Stator Size	31mm x 10mm
Configuration	12N14P (12 Stator Teeth, 14 Magnet Poles)
Shaft Diameter	5mm Titanium Alloy
Max Power	1976.4 Watts
Peak Current	84.68 Amps
Bearing Type	NSK 11x5x5
Mounting Pattern	19x19mm (M3 holes)
Recommended Prop Size	7-inch to 9-inch
Recommended Voltage	6S-8S LiPo (22.2V-29.6V)

Frequently Asked Questions

What size propellers and battery are recommended for the XING2 3110 1250KV motor?

This motor is engineered for 7-inch to 9-inch propellers on 6S to 8S LiPo battery systems (22.2V-29.6V). The high torque and 1250KV rating provide optimal thrust and efficiency for heavy-lift applications like Cinelifter drones carrying cinema cameras.

How does the curved arc magnet design improve performance?

The center-slotted N52H curved arc magnets create a more focused magnetic field with lower inductance. This reduces the motor's electrical time constant, allowing it to accelerate and decelerate faster. This translates to quicker response to FC PID commands and a more locked-in flight feel.

What is the mounting hole pattern and what hardware is included?

The motor features a standard 19x19mm mounting pattern with M3 threaded holes. The package includes four M3x10mm screws for installation. The 5mm shaft uses an M5 flange nut, which is also included, to secure propellers.

Is this motor suitable for high-performance freestyle or racing?

While its primary design is for heavy-lift and long-range efficiency, the XING2 3110's fast magnetic response and high power output (nearly 2000W) make it a capable choice for large-scale 7-inch or 8-inch freestyle and racing quads where smooth, powerful control is desired over extreme agility.
