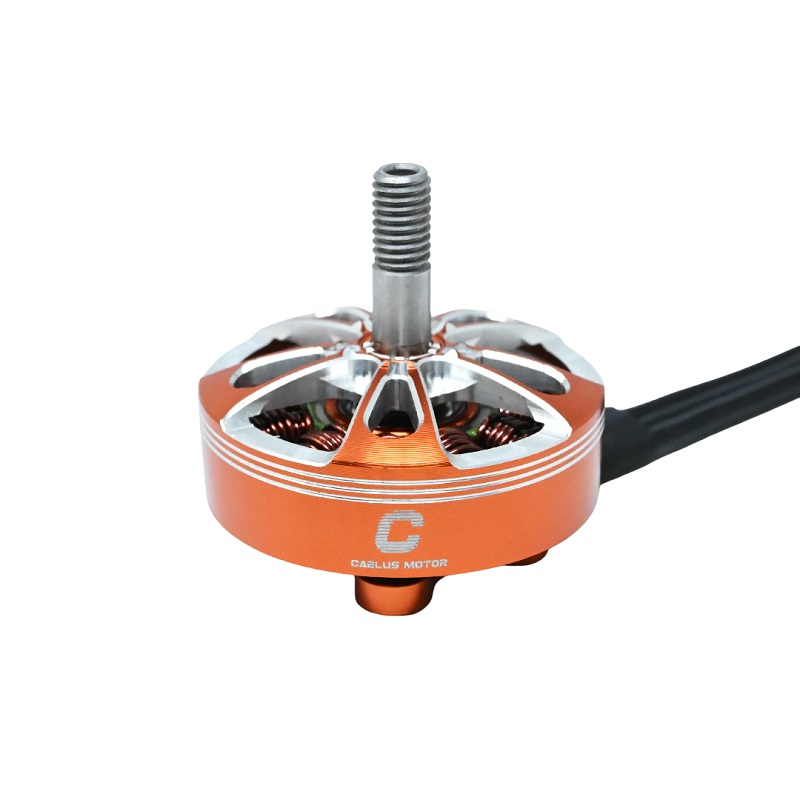

CAELUS FA2807 1300KV Brushless Motor - OrangeRX

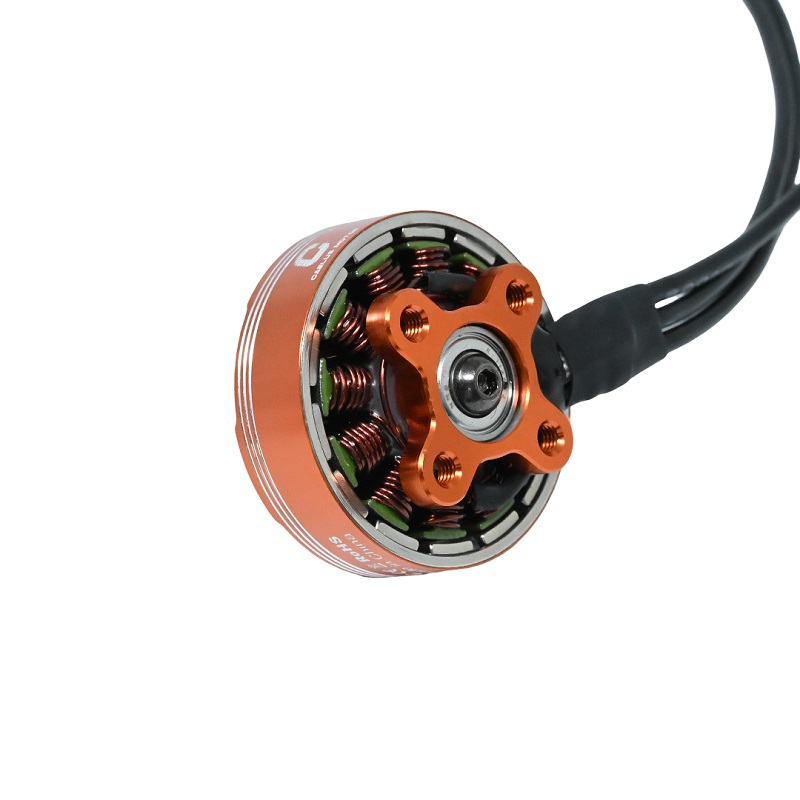

CAELUS FA2807 1300KV Brushless Motor - OrangeRX - Image 2
CAELUS FA2807 1300KV Brushless Motor - OrangeRX - Image 3
SKU: DRFC-2722
📋 GST Invoice Available

CAELUS FA2807 1300KV Brushless Motor - OrangeRX

₹2,259.00 (Inclusive of all taxes)
Out of Stock

The CAELUS FA2807 1300KV brushless motor is engineered for 6S-powered FPV drones, delivering high thrust and smooth performance for long-range and freestyle applications. Its 12N14P stator configuration and precision-balanced rotor ensure efficient power delivery and low vibration.

Features

  • 1300KV rating optimized for 6S LiPo battery operation.
  • Generates up to 2.21 kg of thrust with a 7045-3 propeller.
  • Lightweight 49g design with a durable 34.2mm aluminum housing.
  • 12N14P stator configuration for smooth, stable rotation.
  • Pre-soldered 18AWG silicone wires (250mm length) for easy installation.

Out of stock

Description

The CAELUS FA2807 1300KV brushless motor is a high-performance power unit designed for demanding FPV pilots. Its 28×7 mm stator and 12N14P magnetic structure are optimized to deliver a potent combination of thrust and efficiency on 6S voltage, making it a prime choice for long-range cruising and dynamic freestyle maneuvers.

Engineered for durability, the motor features a robust aluminum shell with an integrated cooling design to manage thermal loads during sustained high-power operation. The precision-balanced rotor assembly minimizes vibrations, contributing to smoother flight characteristics and reduced wear on other drone components.

Key Features

  • High-Thrust 6S Design: Optimized stator and KV rating deliver up to 826W peak power and 2.21kg of thrust for aggressive flight profiles.
  • Precision Engineering: 12N14P configuration and balanced rotor provide exceptionally smooth rotation and consistent RPM response.
  • Robust Thermal Management: Aluminum housing with optimized fin design promotes efficient heat dissipation during prolonged high-load use.
  • Installation-Ready: Comes with pre-soldered, high-grade 18AWG silicone wires measuring 250mm in length for flexible routing and connection.
  • Universal Mounting: Features a standard 19mm PCD (Pattern Circle Diameter) with four M3 mounting holes for compatibility with a wide range of 7-inch drone frames.
  • Lightweight Construction: Weighing only 49 grams, the motor offers an excellent thrust-to-weight ratio for enhanced flight performance and efficiency.

Applications

  • 7-inch long-range FPV drone builds requiring efficient 6S power and extended flight times.
  • Freestyle and cinematic FPV quads where smooth throttle response and high burst thrust are critical.
  • Heavy-lift or payload-carrying multirotor platforms that benefit from the motor's high torque output.
  • Upgrading existing 6S builds to improve power efficiency and reduce vibration for cleaner video footage.

Technical Specifications

ModelFA2807
KV Rating1300 KV
Stator Size28x7 mm
Configuration12N14P
Max Voltage6S LiPo
Max Power826W
Max Thrust2210 g (with 7045-3 prop)
Max Efficiency Current22A
Shaft Diameter5 mm
Motor Diameter34.2 mm
Mounting Hole Pattern4 x M3
Mounting Hole PCD19 mm
Wire Gauge & Length18AWG, 250 mm
Weight49 g

Frequently Asked Questions

What is the recommended propeller size for the CAELUS FA2807 1300KV motor?

The motor is optimized for 7-inch propellers, such as a 7045-3 blade, to achieve its rated maximum thrust of 2.21 kg. Using the correct propeller size is crucial for balancing thrust, efficiency, and current draw on 6S batteries.

Is this motor compatible with 4S or 5S LiPo batteries?

While primarily engineered for 6S operation, the motor can run on lower voltages like 4S or 5S. However, this will result in proportionally lower RPM and thrust. For optimal performance as designed, a 6S LiPo battery pack is recommended.

What Electronic Speed Controller (ESC) is required for this motor?

A 6S-capable ESC rated for at least 50A continuous current per motor is recommended to handle the FA2807's peak power draw. Ensure the ESC firmware (e.g., BLHeli_S, BLHeli_32) is configured for the motor's 12N14P pole count for smooth operation.

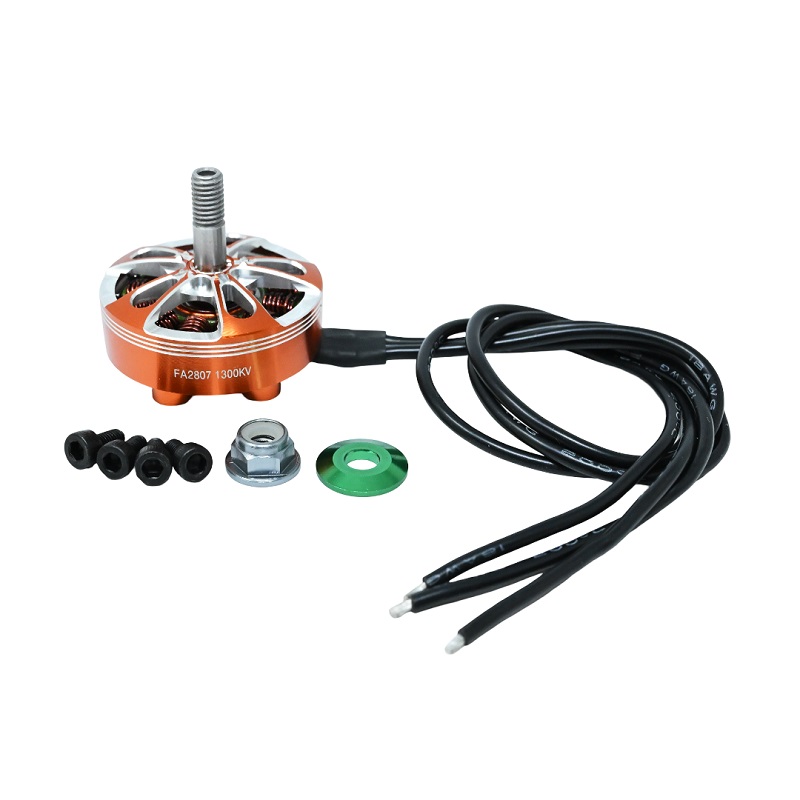

Package Includes

  • 1 x CAELUS FA2807 1300KV Brushless Motor (OrangeRX)
  • 1 x Fitting Accessory Set (mounting hardware)

Additional Information

Weight 0.1 kg
Dimensions 5 × 5 × 5 cm
