SKU: DRFC-2737
📋 GST Invoice Available

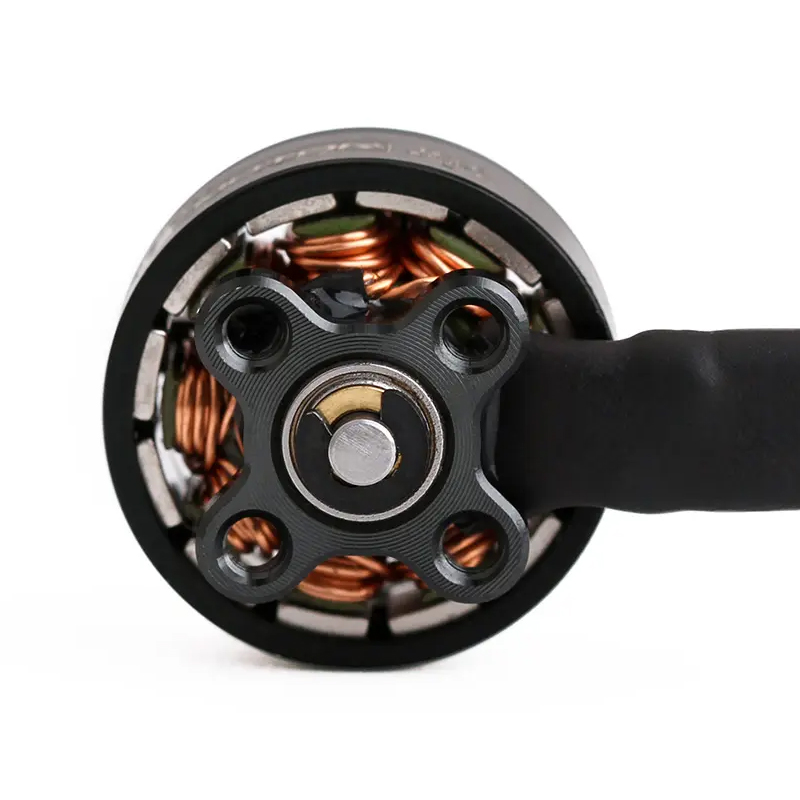

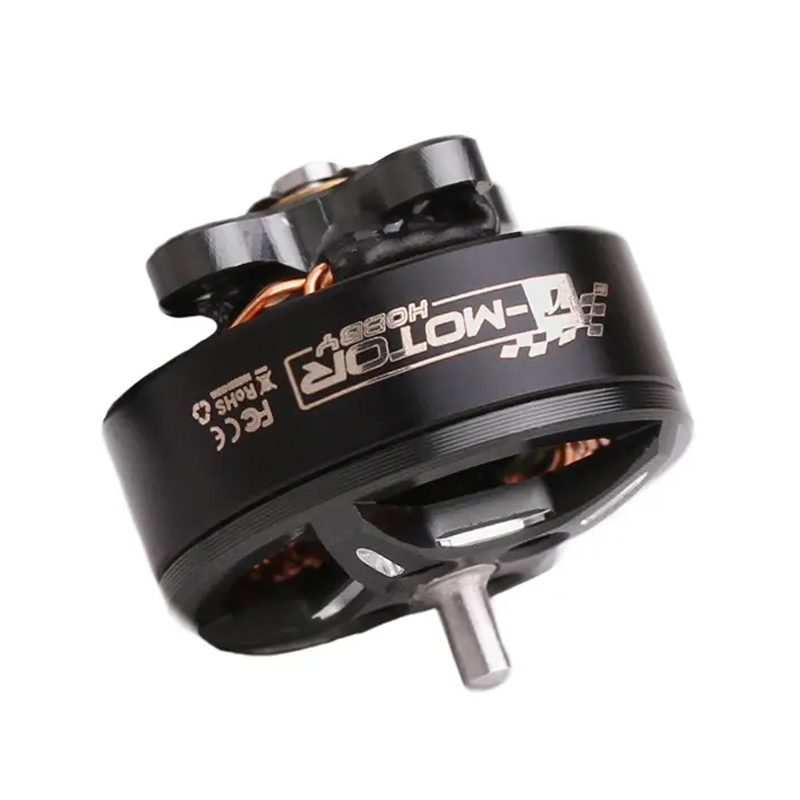

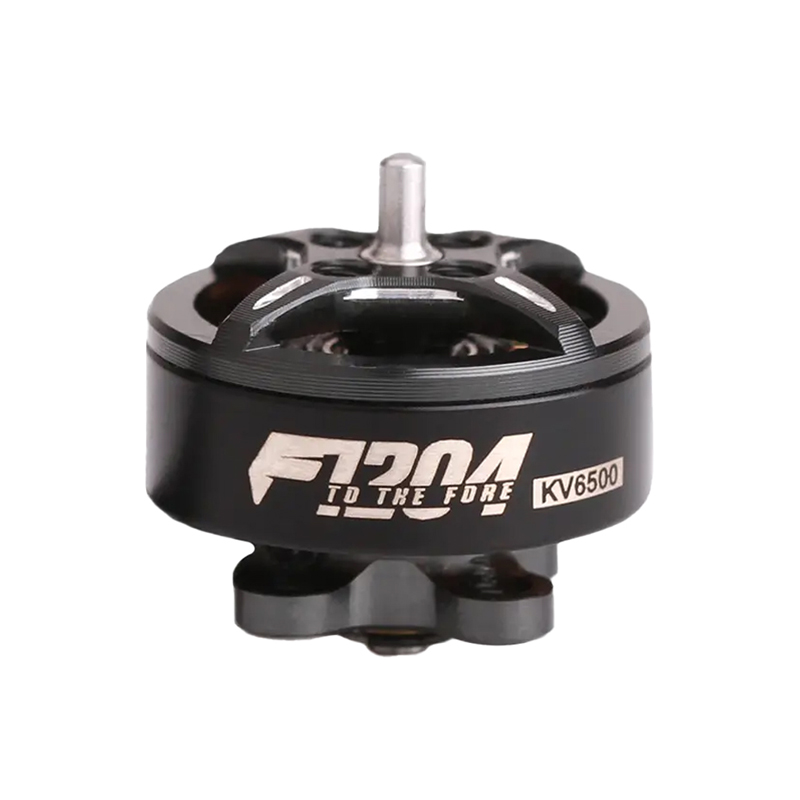

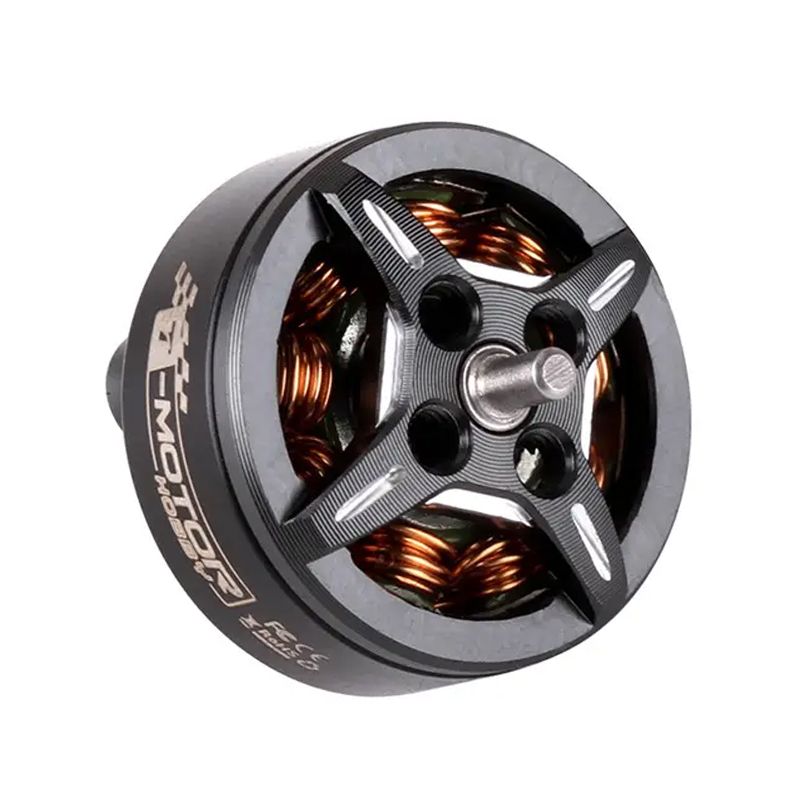

T-Motor F1204 KV6500 Drone Motor

₹1,729.00 (Inclusive of all taxes)
Out of Stock

The T-Motor F1204 KV6500 is a high-performance brushless motor engineered for 7-8″ cinematic and long-range drone platforms, delivering up to 2467g of thrust per motor with smooth throttle response for professional aerial filming.

Features

  • Engineered for 7-8″ cinematic and long-range drone platforms.
  • Delivers a peak thrust of 2467g per motor for lifting heavy camera payloads.
  • Features an upgraded Unibell structure for enhanced durability and aesthetics.
  • Hand-wound stator wires ensure high efficiency and stable performance.
  • Optimized for smooth low-throttle control and powerful high-throttle bursts.

Out of stock

Description

The T-Motor F1204 KV6500 motor is designed for demanding cinematic and long-range drone applications, where smooth, controlled flight and the ability to carry professional camera gear are paramount. Its high KV rating provides the rapid throttle response needed for dynamic shots while maintaining stability.

Constructed with a robust Unibell design, the motor offers improved structural integrity and heat dissipation, ensuring reliable operation during extended flight sessions. The precision engineering results in a motor that balances high power output with the refined control necessary for professional-grade aerial cinematography.

Key Features

  • High-performance design optimized for 7-8" cinelifter and long-range drone frames.
  • Upgraded Unibell construction enhances durability and provides a clean, integrated appearance.
  • Pure hand-wound stator wires maximize electrical efficiency and operational stability.
  • Excellent heat dissipation properties prevent thermal throttling during demanding use.
  • Delivers a powerful peak thrust of 2467g for lifting heavy camera payloads like full-frame mirrorless systems.
  • Smooth, linear throttle response across the entire range, ideal for precise cinematic maneuvers.

Applications

  • 7-8" cinematic FPV drones (Cinelifters) for professional aerial filming.
  • Long-range exploration drones requiring efficient, high-thrust motors.
  • Heavy-lift platforms designed to carry full-frame mirrorless cameras and gimbals.
  • Freestyle and tracking drones where smooth throttle control is critical for dynamic shots.

Technical Specifications

ModelT-Motor F1204
KV Rating6500 KV
Motor TypeBrushless Outrunner
Stator Size12mm x 04mm (1204)
Shaft Diameter1.5 mm
Recommended Battery2S to 3S LiPo
Max Power60 W
Peak Current7 A
Internal Resistance140 mΩ
Motor Length15.5 mm
Motor Weight6.65 g

Frequently Asked Questions

What size drone is the T-Motor F1204 KV6500 motor designed for?

The F1204 KV6500 is specifically engineered for 7-inch to 8-inch cinematic and long-range drone frames. Its high thrust output makes it ideal for platforms that need to carry heavier camera payloads while maintaining smooth flight characteristics.

What is the maximum battery voltage supported by this motor?

This motor is rated for use with 2S to 3S LiPo batteries. Exceeding the 3S (12.6V) maximum voltage can lead to excessive heat, reduced lifespan, or immediate failure of the motor windings.

What is the benefit of the Unibell design on the F1204 motor?

The upgraded Unibell structure integrates the bell and other components into a more robust single unit. This enhances overall durability, improves heat dissipation, and provides a cleaner, more aerodynamic profile compared to traditional multi-part motor designs.

Can this motor be used for high-speed freestyle FPV flying?

While it offers high thrust, its KV6500 rating and design are optimized for smooth control and efficiency in cinematic and long-range applications. For aggressive, high-RPM freestyle on smaller frames, a lower KV motor on higher voltage (e.g., 4-6S) is typically more suitable.

Package Includes

  • 1 x T-Motor F1204 KV6500 Drone Motor
  • 1 x Screw set

Additional Information

Weight 0.00665 kg
