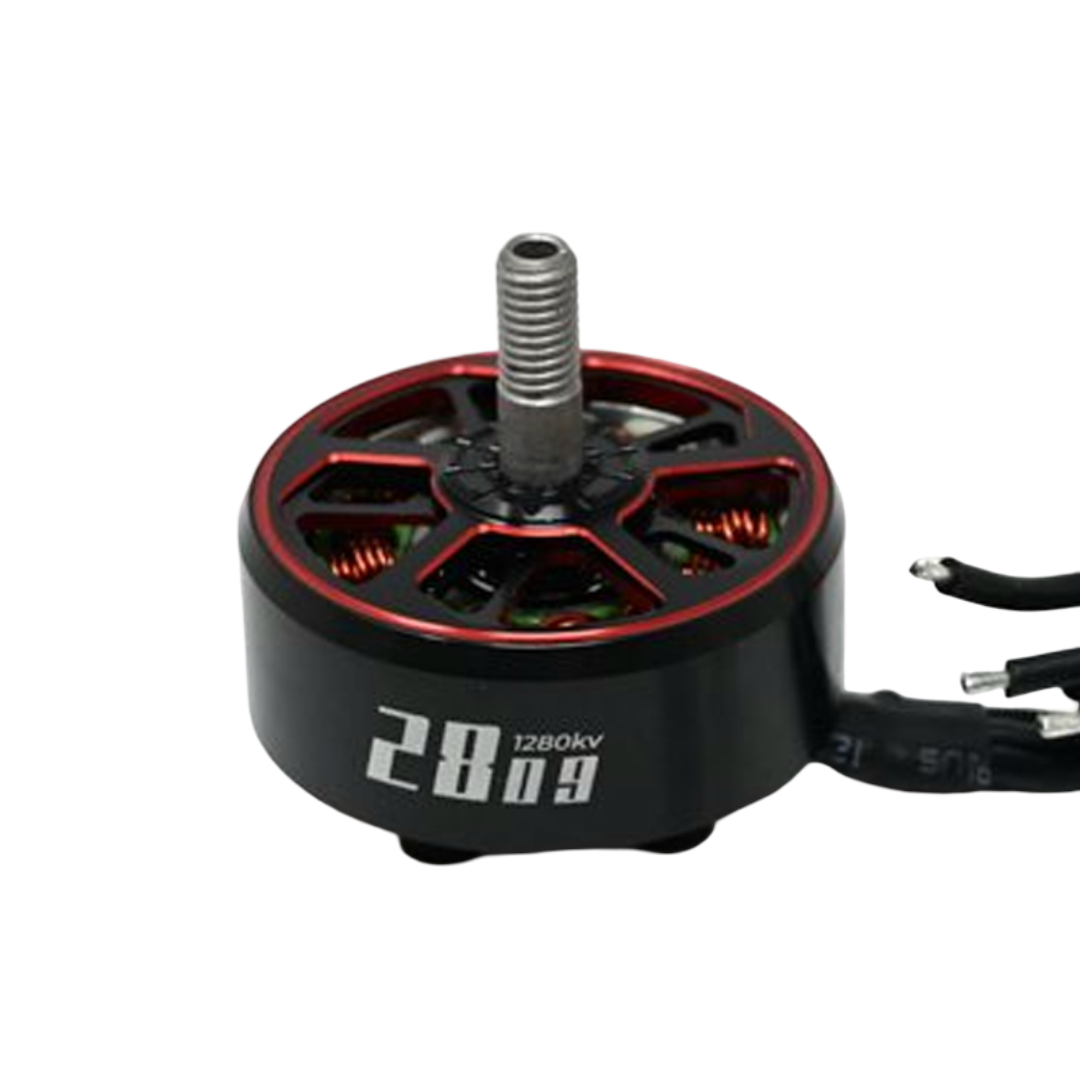

GEPRC SPEEDX2 2809 1280KV Motor
GEPRC SPEEDX2 2809 1280KV Motor - Image 2
SKU: DRFC-2751
📋 GST Invoice Available

GEPRC SPEEDX2 2809 1280KV Motor

₹3,169.00 (Inclusive of all taxes)
Out of Stock

The GEPRC SPEEDX2 2809 1280KV brushless motor is engineered for high-power 7–8 inch long-range and X8 FPV drone builds, optimized for 6S LiPo operation with a focus on durability and thermal performance.

Features

  • 1280KV rating optimized for 6S LiPo voltage on 7–8 inch propellers.
  • Constructed from high-strength 7075-T6 aviation-grade aluminum alloy.
  • Features high-temperature resistant N52SH ARC magnets for sustained power output.
  • Delivers up to 1148.9W maximum power with a 49.35A current rating.
  • Includes M3*9 mounting screws and an M5 anti-slip prop nut.

Out of stock

Description

The GEPRC SPEEDX2 2809 motor is a precision-CNC machined power unit designed for demanding long-range FPV and heavy-lift X8 configurations. Its 1280KV winding is specifically tuned for efficient operation on 6S battery packs, providing the high torque necessary for large-diameter propellers while maintaining manageable current draw.

The motor’s core utilizes a robust 7075-T6 aluminum alloy structure paired with N52SH ARC magnets, offering exceptional resistance to demagnetization under high thermal loads. This combination ensures consistent performance and longevity during extended flight sessions, making it a reliable choice for endurance-focused builds.

Key Features

  • High-Torque Design: 1280KV winding optimized for 6S voltage and large 7–8 inch propellers, delivering robust thrust for long-range flight.
  • Premium Material Construction: Housing machined from 7075-T6 aviation aluminum for an optimal strength-to-weight ratio and impact resistance.
  • Advanced Thermal Management: Equipped with N52SH ARC magnets rated for high-temperature operation, preventing power fade during sustained high-load use.
  • Precision Engineering: CNC-machined components ensure tight tolerances for smooth rotation, minimal vibration, and enhanced efficiency.
  • High Power Output: Capable of delivering up to 1148.9W of power, supporting aggressive flight maneuvers and heavy payloads.
  • Secure Mounting: Features a standard 19x19mm M3 mounting pattern and includes a dedicated M5 anti-slip prop nut for secure propeller attachment.

Applications

  • 7-inch and 8-inch long-range FPV quadcopters requiring efficient, high-torque propulsion.
  • Heavy-lift X8 (octocopter) drone platforms for cinematic or payload-carrying duties.
  • Endurance-focused freestyle or mapping drones operating on 6S LiPo batteries.
  • Custom heavy-duty multirotor builds where thermal resilience and durability are critical.

Technical Specifications

Model NumberSPEEDX2 2809
Motor KV1280 KV
Compatible Battery6S LiPo
Shaft Diameter5 mm
Max Power1148.9 W
Max Current49.35 A
Mounting Hole Pattern19x19 mm (M3)
Magnet GradeN52SH ARC
Housing Material7075-T6 Aluminum

Frequently Asked Questions

What size propellers and drone frame is this GEPRC SPEEDX2 2809 1280KV motor designed for?

This motor is engineered for 7-inch to 8-inch propeller diameters, making it ideal for corresponding frame sizes. Its 1280KV rating and torque profile are optimized for these larger props on 6S voltage, providing efficient thrust for long-range and heavy-lift X8 drone configurations.

What is the maximum power and current rating for this motor?

The GEPRC SPEEDX2 2809 motor has a maximum power rating of 1148.9 Watts and a maximum current draw of 49.35 Amps. It is crucial to pair it with ESCs rated for at least 50A continuous current, preferably with overhead, to handle peak loads during aggressive maneuvers or heavy lift scenarios.

What are the benefits of the N52SH ARC magnets and 7075-T6 aluminum construction?

The N52SH ARC magnets offer superior resistance to demagnetization at high temperatures, ensuring consistent magnetic field strength and power output during prolonged, high-load operation. The 7075-T6 aluminum housing provides exceptional structural rigidity and impact resistance, contributing to the motor's overall durability and longevity in demanding flight environments.

What mounting hardware and propeller nut does this motor use?

This motor uses a standard 19x19mm M3 mounting hole pattern. The package includes four M3*9 round head screws for installation. For propeller attachment, it utilizes a 5mm shaft diameter and includes a dedicated M5 anti-slip nut to securely fasten propellers without loosening during flight.

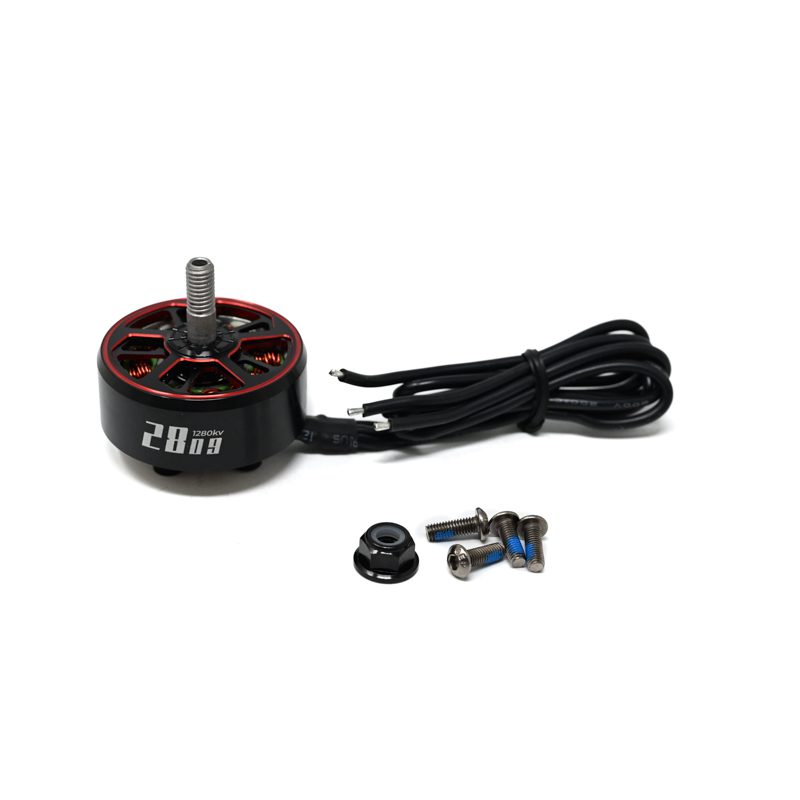

Package Includes

  • 1 x SPEEDX2 2809 1280KV Motor
  • 4 x M3*9 Round Head Screws
  • 1 x M5 Anti-Slip Nut

Additional Information

Weight 0.2 kg
Dimensions 8 × 7 × 5 cm
