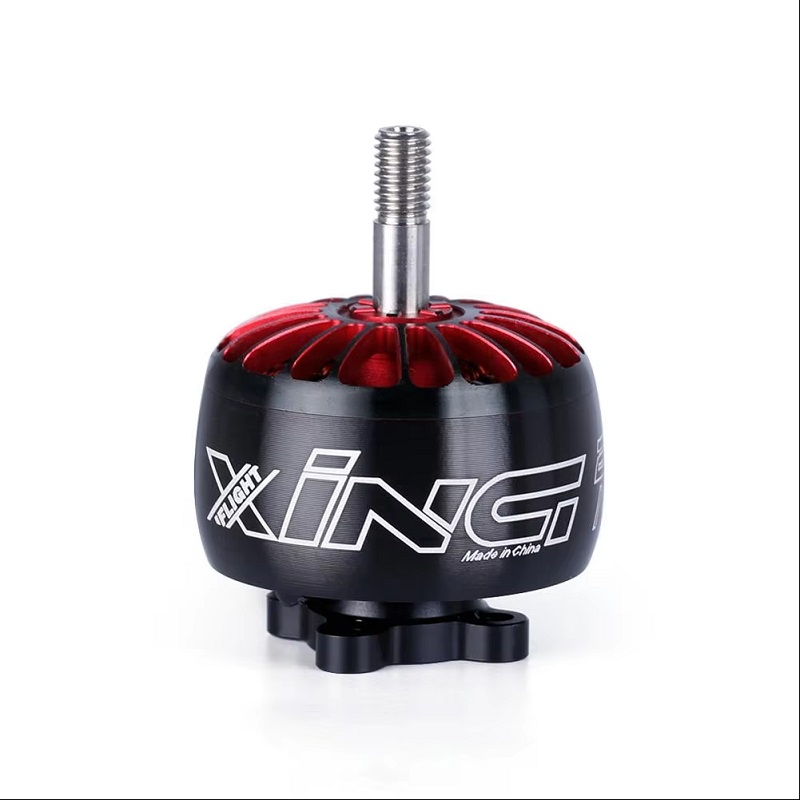

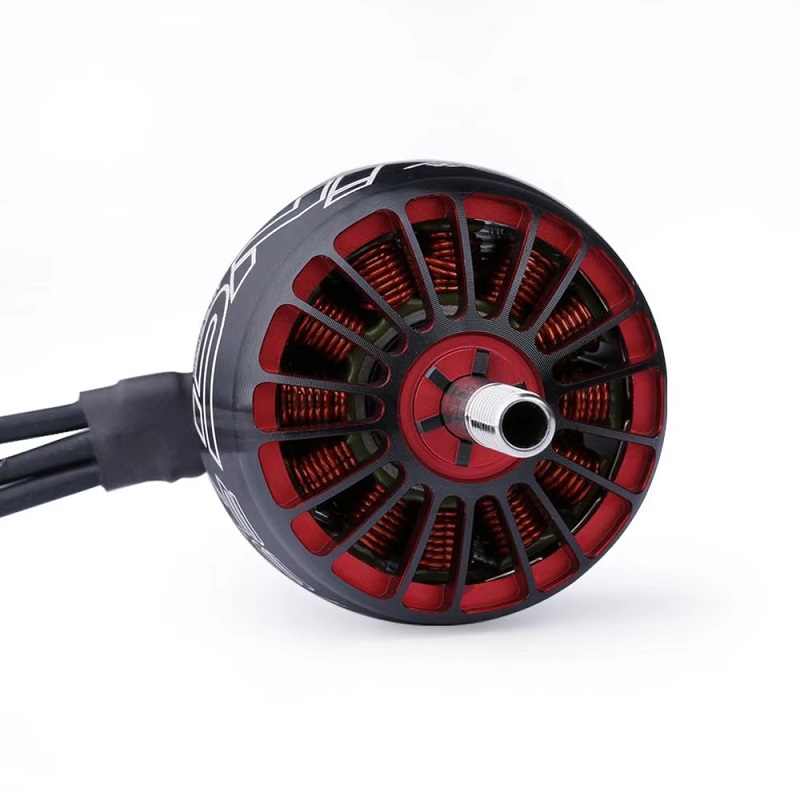

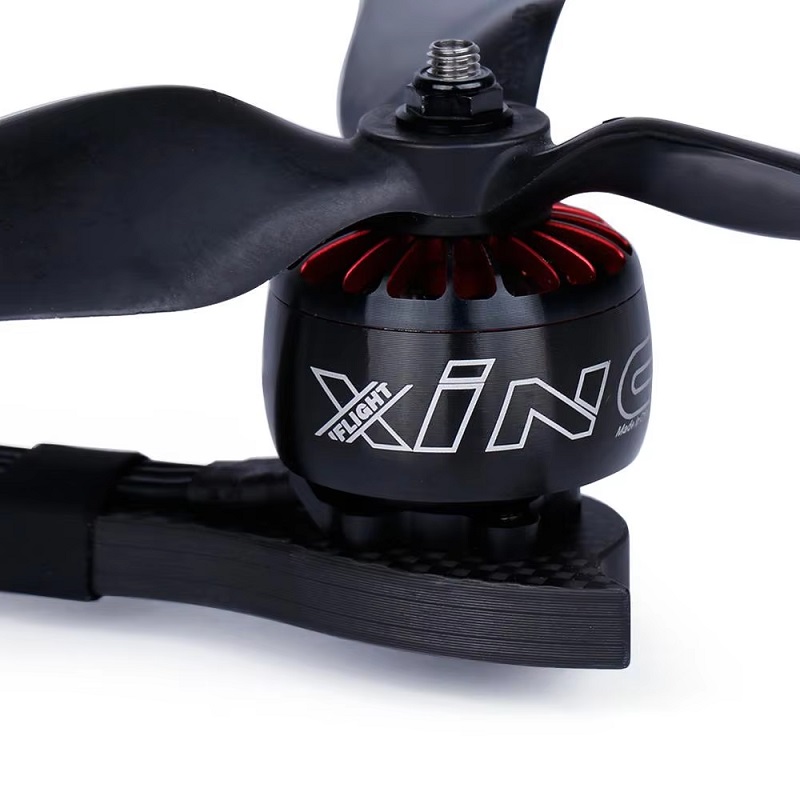

iFlight XING 2814 Race Motor - 1100KV
The iFlight XING 2814 is a 1100KV brushless motor engineered for high-efficiency, long-range, and heavy-lift applications on 9-10 inch multirotor frames. It features a robust 7075 aluminum construction, N52H arc magnets, and precision NSK bearings for smooth, reliable power delivery.
Features
- 1100KV rating optimized for 4S-6S LiPo batteries and efficient long-range flight.
- 2814 stator size (28mm diameter, 14mm height) delivers high torque and thrust for larger propellers.
- Constructed with 7075-T6 aluminum alloy bell and base for maximum durability.
- Equipped with high-grade Japanese NSK 11x5x5mm bearings and N52H arc-curve magnets.

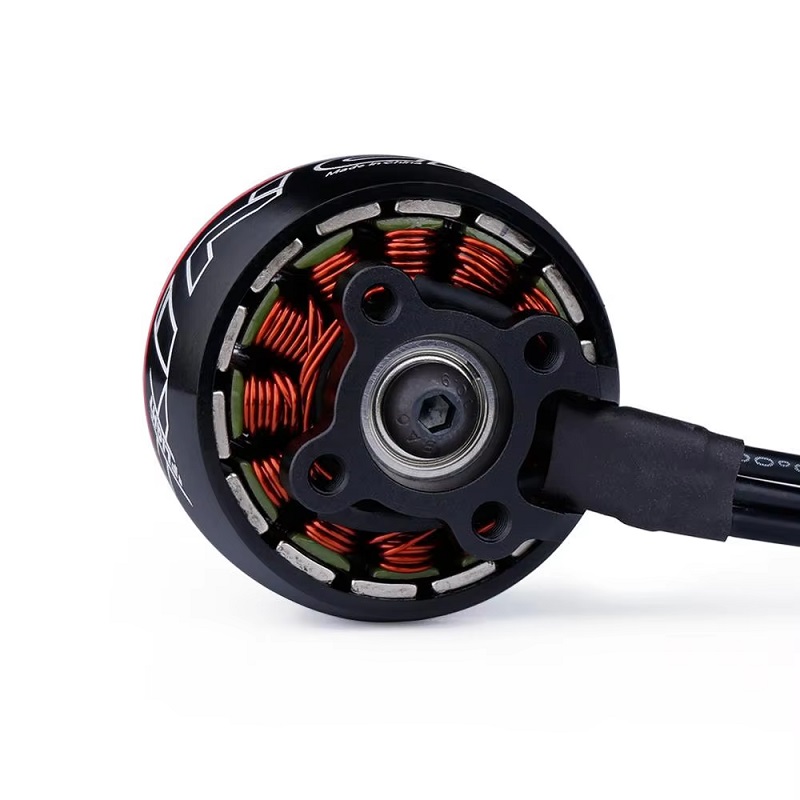

- Features a 5mm shaft diameter with a 16x16mm M3 mounting pattern for broad frame compatibility.
Out of stock
The XING 2814 Race Motor is engineered for pilots requiring exceptional efficiency and power for larger multirotor platforms. Its substantial 2814 stator size provides the instant torque necessary to handle heavy payloads and recover from aggressive maneuvers, making it ideal for long-range FPV, aerial photography rigs, and heavy-lift applications.
Built around a core of premium materials, including 7075 aluminum and high-temperature N52H magnets, the motor maintains consistent performance under thermal stress. The integration of precision NSK bearings ensures minimal mechanical loss and vibration, contributing to smoother flight characteristics and extended operational life.
Additional Information
| Weight | 0.0883 kg |
|---|
