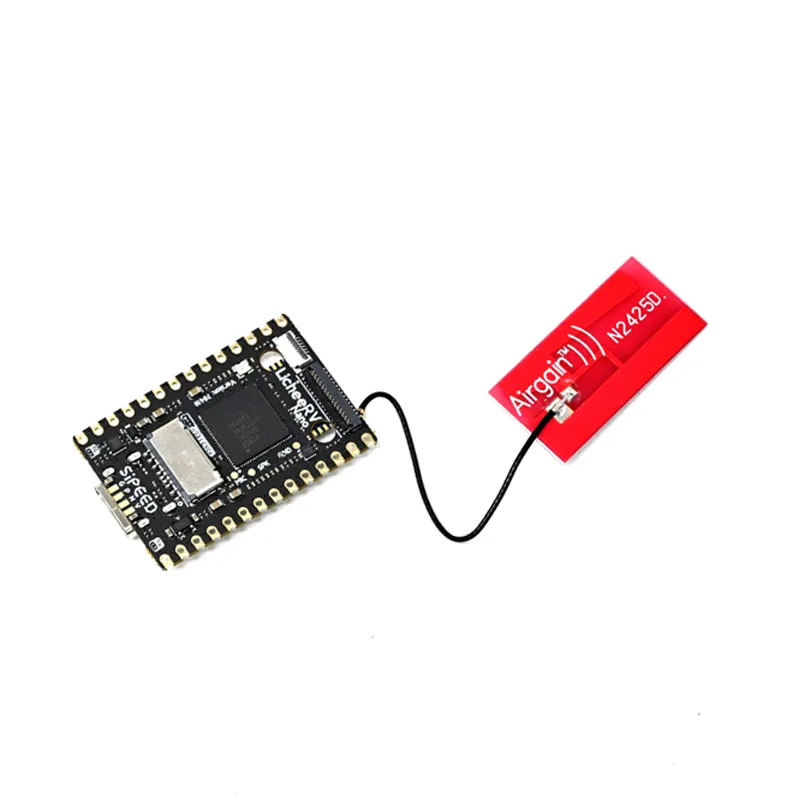

Sipeed LicheeRV Nano (W) SG2002 RISC-V AI Linux Board
The Sipeed LicheeRV Nano (W) SG2002 is a compact RISC-V/ARM development board integrating 256MB DDR3, dual-band WiFi6, and BLE5.4, making it ideal for Linux embedded systems and AI vision applications. Its powerful NPU and MIPI interfaces support sophisticated camera and display projects.
Features
- Features SOPHGO SG2002 SoC with 1GHz RISC-V C906 or ARM A53, plus an 8051 low-power core.
- Integrated 2Gbit (256MB) DDR3 RAM and powerful ITOPS@INT8 NPU for AI vision tasks.
- Built-in dual-band 2.4G/5.8G WiFi6 and BLE5.4 for robust wireless connectivity.
- Equipped with 4-lane MIPI CSI for camera input and 2-lane MIPI DSI for display output.
- Supports Buildroot Linux, Debian, and Fedora, facilitating diverse embedded Linux projects.
Out of stock
The Sipeed LicheeRV Nano (W) is a versatile development board centered around the SOPHGO SG2002 processor, offering a flexible architecture with a 1GHz RISC-V C906 or ARM A53 core, alongside a dedicated 8051 low-power core for efficient system management. It integrates 2Gbit (256MB) of DDR3 RAM directly into the SoC, providing a streamlined solution for embedded Linux development. This board excels in applications requiring local processing capabilities, particularly for AI vision tasks, thanks to its powerful NPU supporting ITOPS@INT8 and BF16 formats.
Designed for robust connectivity, the LicheeRV Nano (W) includes dual-band 2.4G/5.8G WiFi6 and BLE5.4, enabling high-speed wireless data transfer and low-energy peripheral integration. Its comprehensive I/O features a 4-lane MIPI CSI for high-resolution camera input and a 2-lane MIPI DSI for display output, alongside a USB2.0 OTG Type-C port, a 100Mbps Ethernet interface, and breadboard-compatible GPIO headers. Audio capabilities are also integrated with an onboard MEMS microphone and a 1W speaker amplifier, making it suitable for multimedia-rich applications.
With extensive operating system support including Buildroot Linux, Debian, and porting efforts for Fedora, the LicheeRV Nano (W) provides a solid foundation for developers to build advanced embedded systems. Its compact form factor, combined with rich features and robust processing power, positions it as an excellent choice for projects ranging from smart cameras and edge AI devices to robotics and industrial control systems that benefit from Linux flexibility and integrated AI acceleration.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 6 × 5 × 3 cm |
