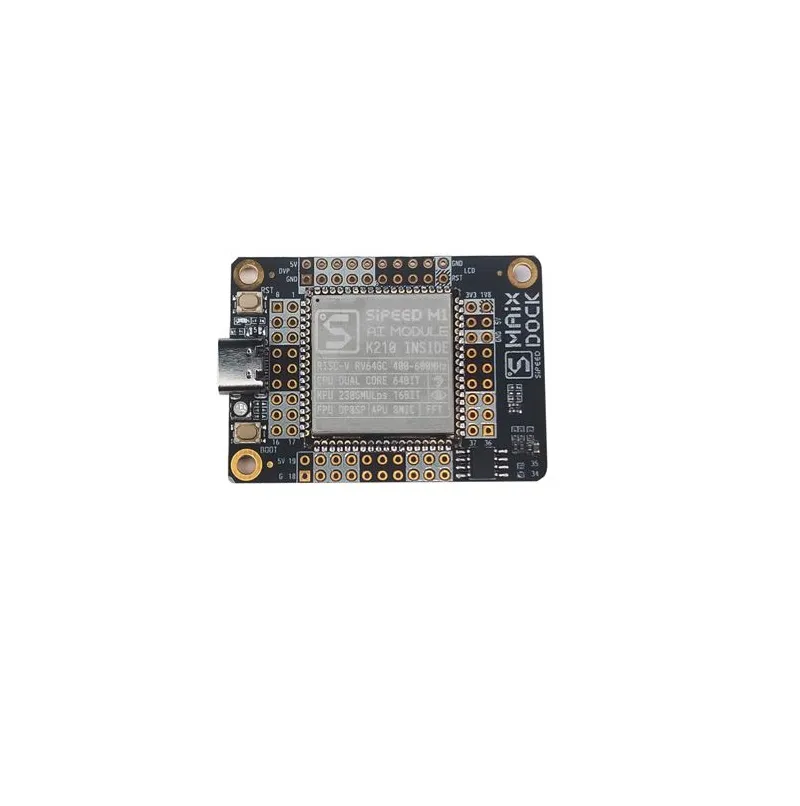

Sipeed M1 Dock Suite K210 AI Development Kit w/ LCD & OV2640
The Sipeed M1 Dock Suite leverages the dual-core RISC-V K210 processor with an integrated Neural Network Processor (KPU) and Audio Processor (APU) for high-performance edge AI applications. This development board is ideal for computer vision and audio processing tasks, offering robust capabilities for embedded machine learning.
Features
- Dual-core RISC-V 64-bit K210 processor, clocked up to 800MHz.
- Integrated KPU (Neural Network Processor) for high-efficiency edge AI inference.
- On-chip 8MB high-speed SRAM for rapid data access and processing.
- Dedicated APU (Audio Processor) with FFT unit for 8-microphone array support.

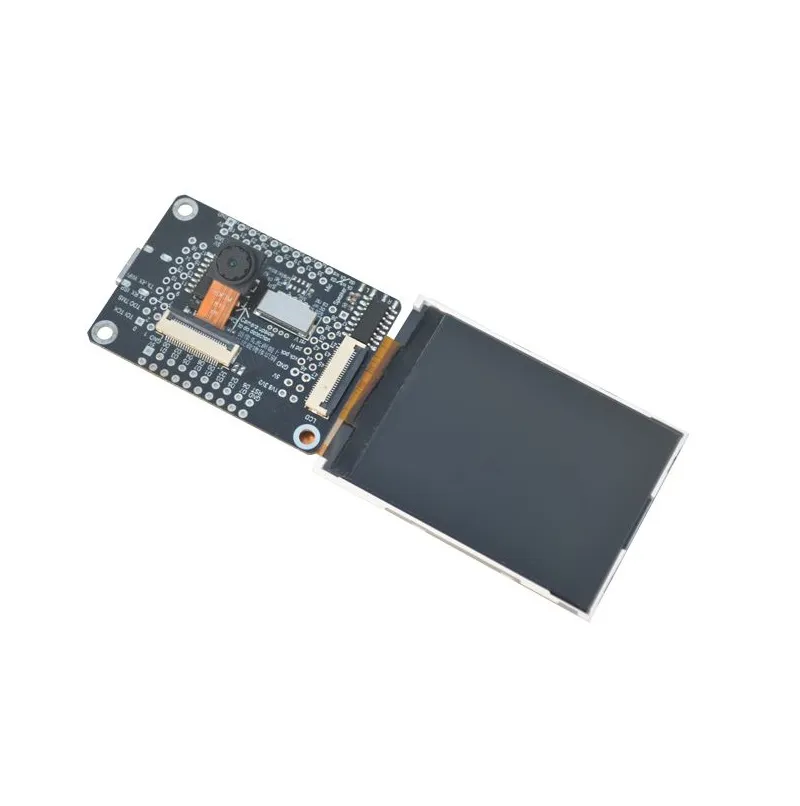

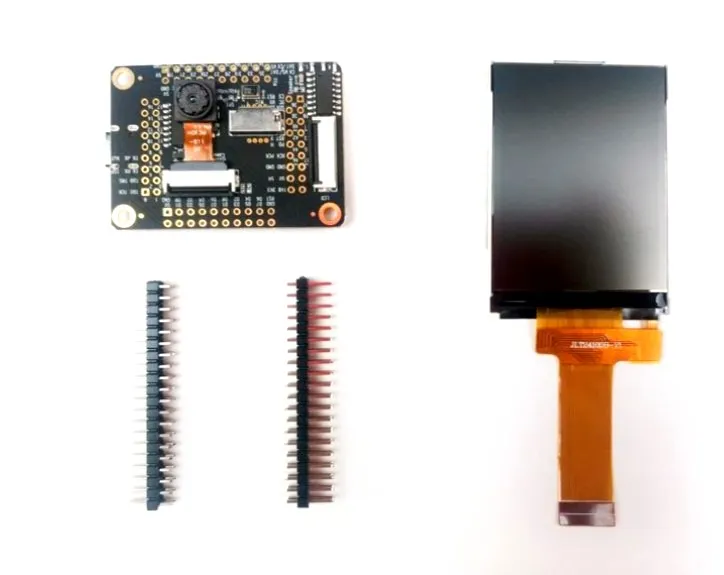

- Includes a 2.4-inch LCD and OV2640 camera for immediate visual AI projects.
Out of stock
The Sipeed MAIX platform brings AI to the edge, addressing the growing demand for privacy, low latency, and bandwidth efficiency by enabling AI models to run directly on devices. The Sipeed M1 Dock Suite, built around the powerful Sipeed M1 AI module, provides a comprehensive development platform for creating, testing, and deploying AI solutions in embedded systems. Positioned as a master controller rather than just an accelerator, the M1 Dock Suite offers a cost-effective and low-power alternative for AIoT applications, facilitating high-accuracy AI deployment in a compact footprint.
At its core, the Sipeed M1 Dock Suite features the Kendryte K210 chip, a pioneering dual-core RISC-V 64-bit processor. This 28nm chip boasts an on-chip 8MB high-speed SRAM, a KPU (Neural Network Processor) capable of 0.5 TOPS at 800MHz for demanding computer vision tasks like 60fps VGA object recognition, and an APU (Audio Processor) supporting 8 microphones with a 192KHz sample rate and hardware FFT. Its Flexible FPIOA allows dynamic mapping of 255 functions to 48 GPIOs, while integrated DVP camera and MCU LCD interfaces ensure direct connectivity for vision and display components, along with a suite of other accelerators and peripherals like AES, SHA256, FFT, UART, I2C, SPI, and I2S.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 6 × 4.3 × 0.5 cm |
