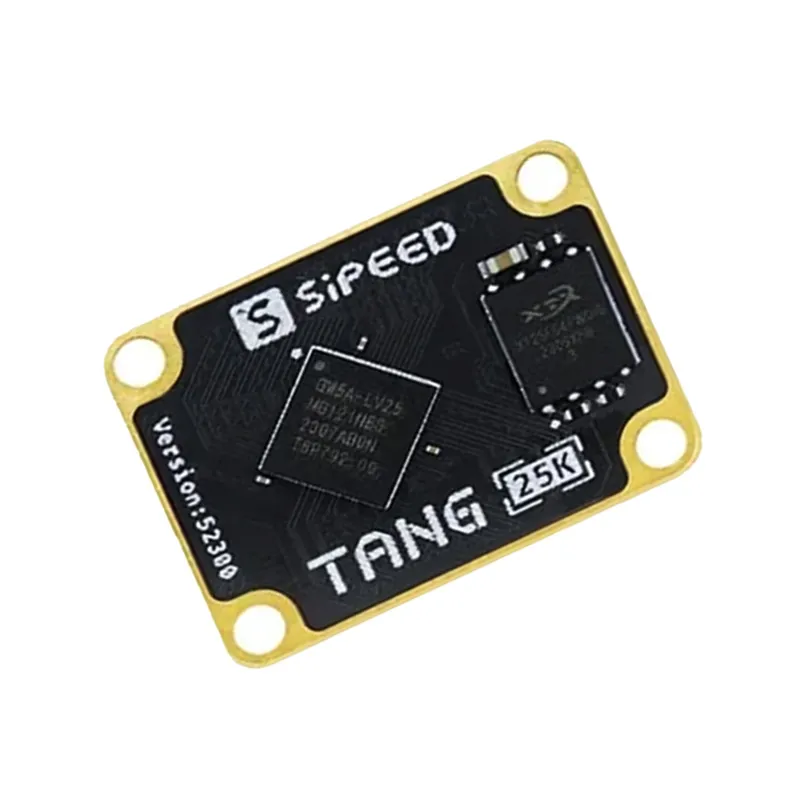

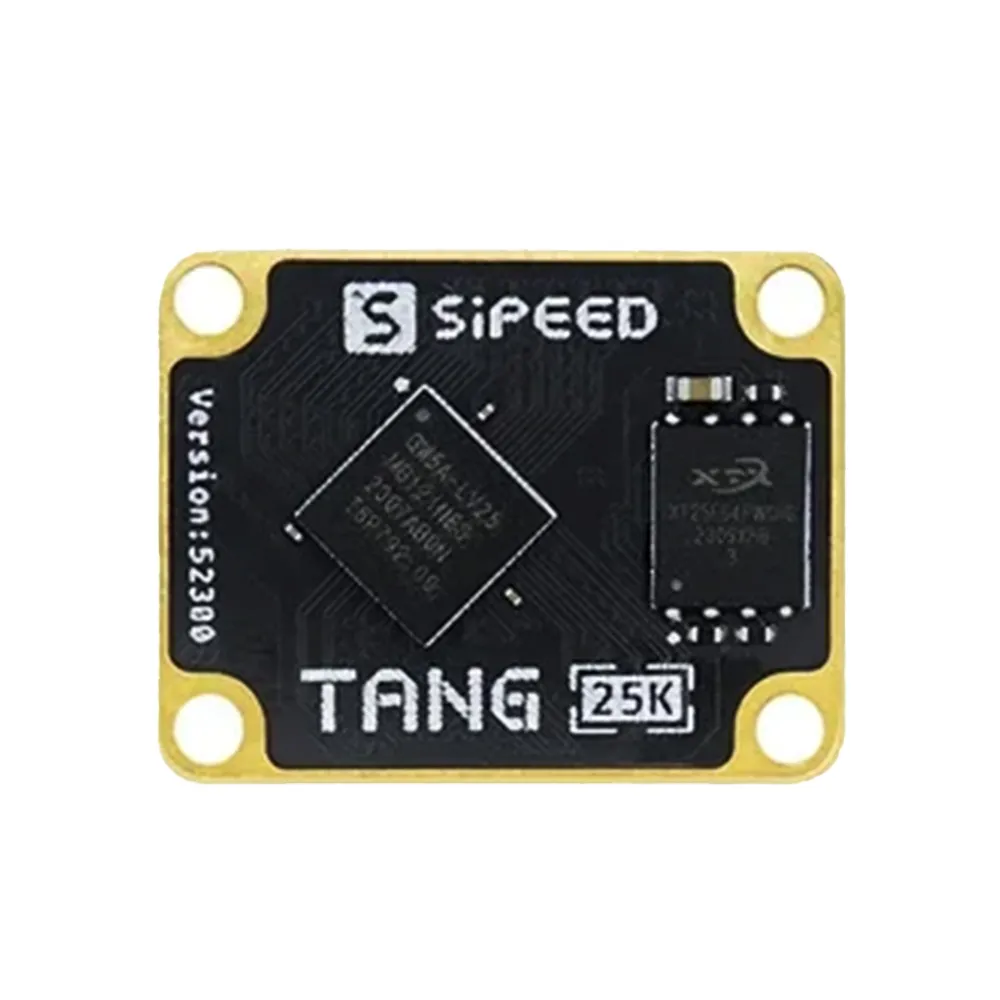

Sipeed Tang Primer 25K Core Board GW5A RISC-V FPGA
The Sipeed Tang Primer 25K Core Board is a compact, highly integrated FPGA module featuring the Gowin GW5A-LV25MG121 FPGA with 64Mbit SPI Flash. It provides 76 GPIOs and a hard-core 4-lane MIPI D-PHY, making it ideal for embedded vision and high-performance digital logic applications.
Features
- Features the Gowin GW5A-LV25MG121 FPGA with integrated RISC-V capabilities.
- Equipped with 64Mbit SPI Flash for configuration and data storage.
- Offers 76 General Purpose Input/Outputs for extensive peripheral connectivity.
- Includes a hard-core 4-lane MIPI D-PHY for high-speed display and camera interfaces.
- Compact System-on-Module (SoM) design with integrated DC-DC power supply.
Out of stock
The Sipeed Tang Primer 25K Core Board is an ultra-compact and highly integrated FPGA System-on-Module (SoM) designed for embedded applications requiring robust digital logic and high-speed interfaces. It incorporates the powerful Gowin GW5A-LV25MG121 FPGA, alongside 64Mbit of SPI Flash and an integrated DC-DC power supply, all within a footprint smaller than a typical coin.
This versatile SoM provides developers with 76 accessible General Purpose Input/Outputs (GPIOs) for flexible expansion and integration with various sensors and actuators. Crucially, it features a hard-core 4-lane MIPI D-PHY, enabling direct interfacing with high-resolution cameras and displays, making it particularly suitable for vision-centric projects. With three distinct power outputs and a simple 5V power input requirement, the Tang Primer 25K simplifies complex embedded system development.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 7 × 5 × 2 cm |
