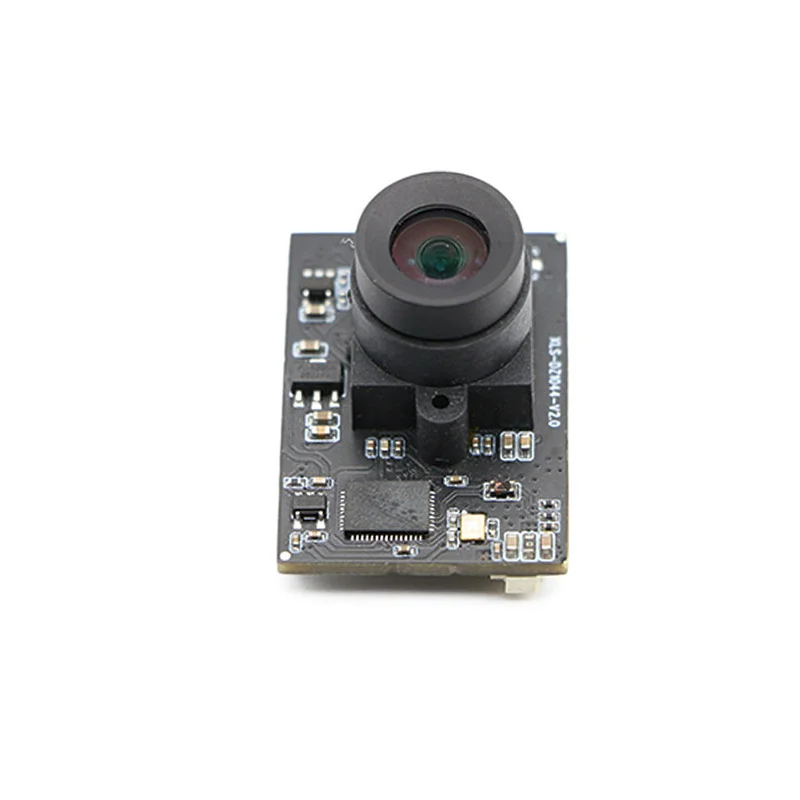

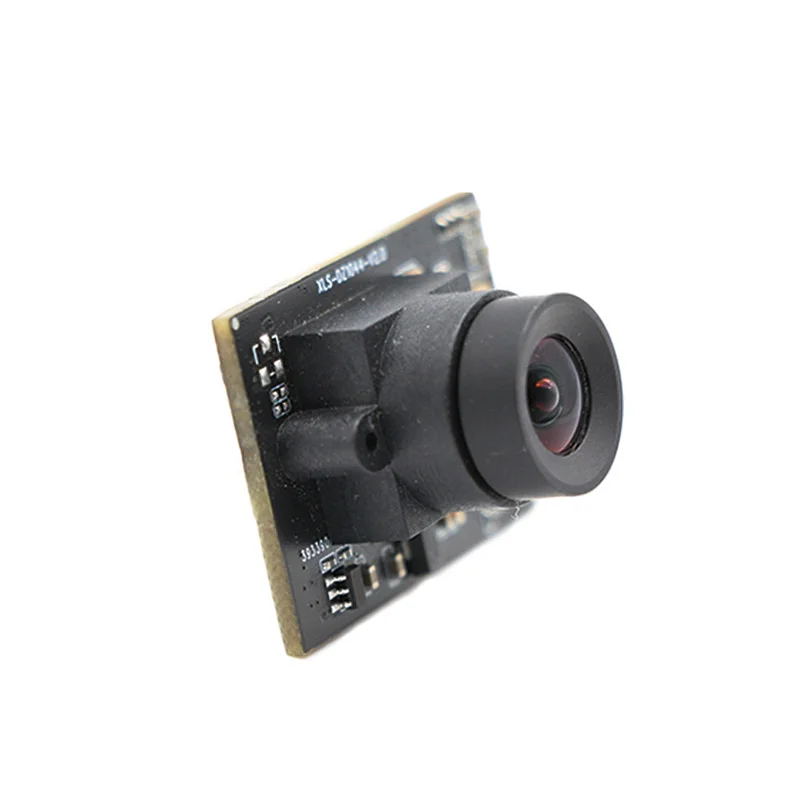

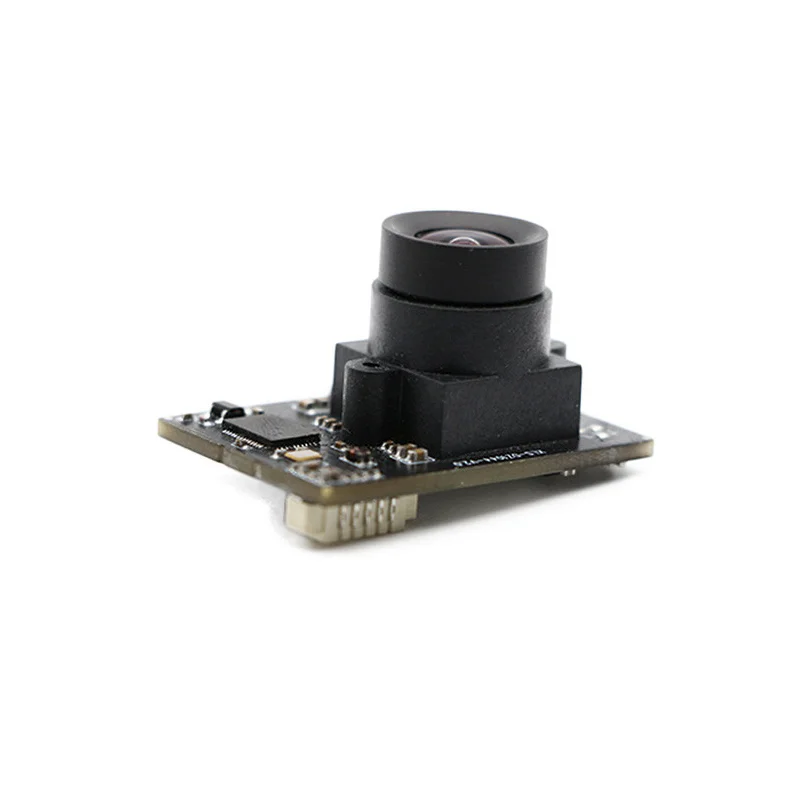

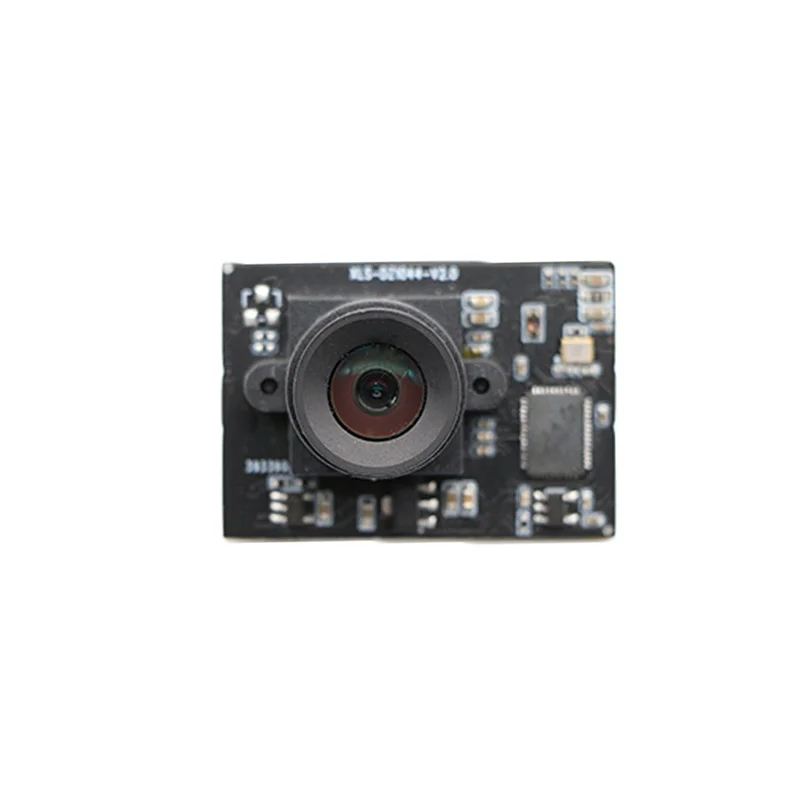

SinoSeen IMX291 1080P HD USB Camera Module w/ WDR & Night Vision
The SinoSeen 1080P HD USB Camera Module integrates the Sony IMX291 CMOS sensor for industrial-grade imaging, featuring Wide Dynamic Range (WDR) and Starvis night vision for low-light environments. It offers plug-and-play USB 2.0 connectivity and is compatible with Windows, Linux, macOS, and Android platforms for automation, surveillance, and machine vision applications.
Features
- Sony IMX291 2MP CMOS sensor delivers Full HD 1080P resolution (1945×1109) with 2.9µm pixels for sharp, detailed images.
- Enhanced 72dB Wide Dynamic Range (WDR) balances lighting in high-contrast scenes, while Starvis technology enables clear night vision.
- Plug-and-play USB 2.0 interface ensures easy integration with Windows, Linux, macOS, and Android systems.
- Fixed-focus 3.6mm lens provides a 90° field of view, ideal for industrial automation, robotics, and surveillance setups.
- Compact 38x38mm industrial-grade design operates reliably from 0°C to 60°C for demanding environments.
Out of stock
Engineered for critical imaging applications, the SinoSeen USB Camera Module leverages the Sony IMX291 CMOS sensor, a 1/2.8-inch Starvis sensor renowned for its superior low-light sensitivity. The module captures Full HD 1080P video at 1945×1109 resolution, utilizing 2.9µm pixel size to enhance light capture and detail retention. Its integrated Wide Dynamic Range (WDR) circuitry achieves a 72dB dynamic range, effectively managing scenes with extreme lighting variations to prevent overexposure and loss of shadow detail.
The module features a fixed-focus 3.6mm lens with an M12xP0.5 thread mount, offering a 90-degree field of view suitable for monitoring and machine vision. Connectivity is handled via a high-speed USB 2.0 interface, supporting MJPEG and YUY2 video formats for flexible streaming and processing. Built for industrial durability, it operates within a 0°C to 60°C temperature range, ensuring stable performance in automation, robotics, security, and visual inspection systems where reliability is paramount.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
