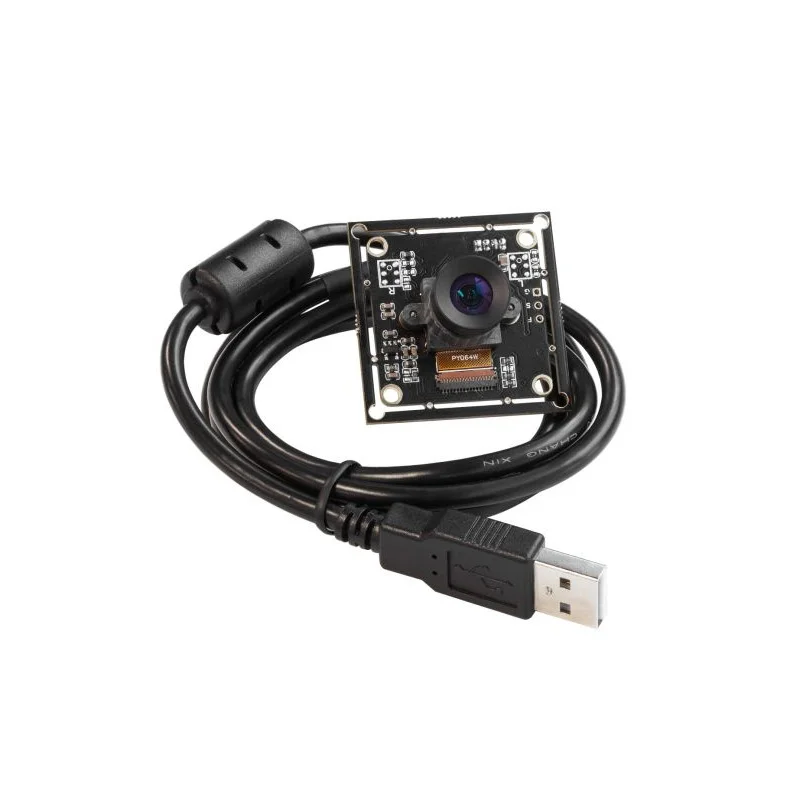

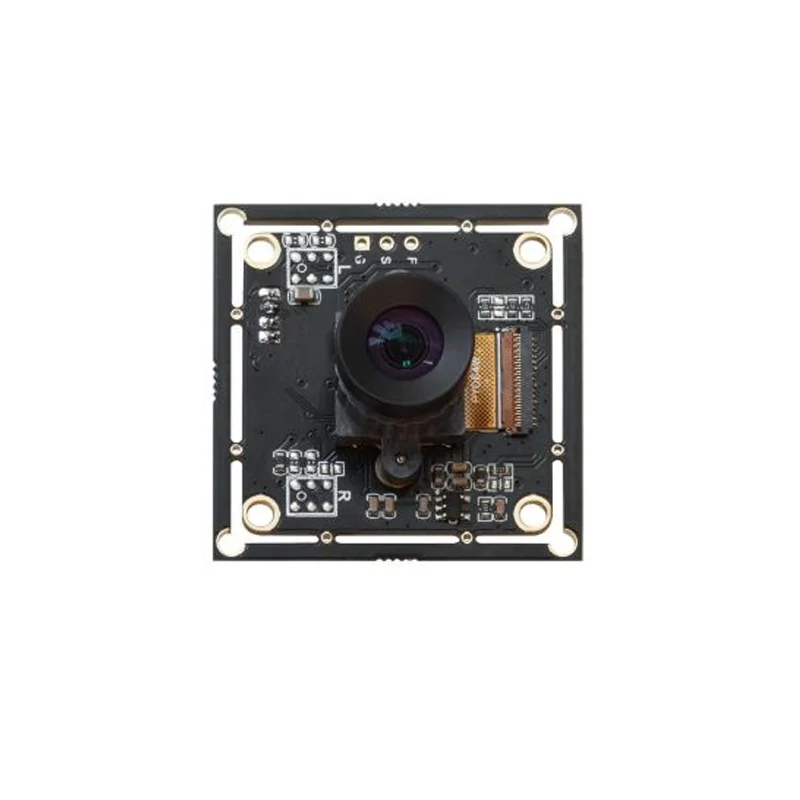

Arducam B0322 OV2311 2MP Global Shutter Monochrome USB Camera w/ M12 Lens
The Arducam B0322 is a USB-powered 2MP monochrome camera featuring an OV2311 global shutter sensor and a low-distortion M12 lens, designed for high-speed, distortion-free imaging in computer vision applications on Windows, Linux, macOS, Android, and Raspberry Pi.
Features
- Global Shutter Sensor: OV2311 2MP monochrome sensor eliminates motion blur for accurate high-speed capture.
- Low-Distortion M12 Lens: Provides a 75° field of view for precise imaging in machine vision tasks.
- Plug-and-Play USB 2.0: UVC compliant for driverless operation across PCs, SBCs, and Android devices.
- External Trigger & Strobe: Supports hardware triggering and strobe signal output for synchronized imaging.
- IR-Sensitive Monochrome: Enhanced sensitivity for low-light and near-infrared (NIR) vision applications.
Out of stock
The Arducam B0322 integrates a 2-megapixel OV2311 CMOS sensor with a true global shutter, a critical feature for capturing fast-moving objects without the rolling shutter artifacts common in consumer cameras. Its monochrome pixel array offers higher sensitivity and improved signal-to-noise ratio compared to color sensors, making it particularly effective for IR-enhanced machine perception, barcode reading, and optical tracking.

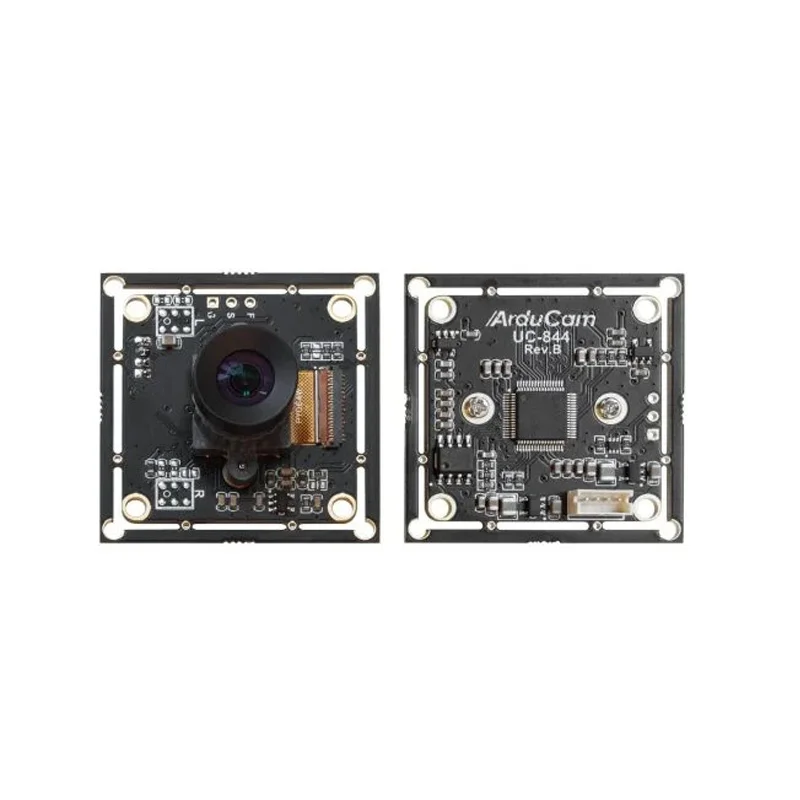

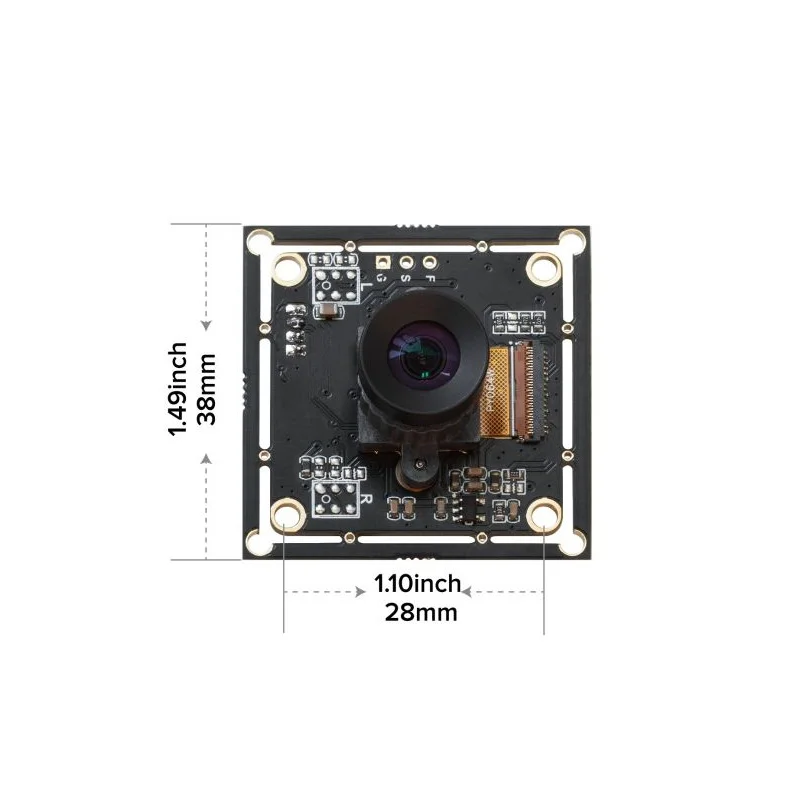

Housed in a compact 28mm x 38mm board, the module connects via a standard USB 2.0 interface, drawing under 200mA for easy integration into portable and embedded systems. The included low-distortion M12 lens ensures geometric accuracy, which is essential for measurement and 3D reconstruction algorithms. The camera’s UVC compliance guarantees broad OS support, while programmable exposure and external trigger pins enable precise timing control for automated inspection and robotics.
Additional Information
| Weight | 0.059 kg |
|---|---|
| Dimensions | 3.8 × 2.8 cm |
