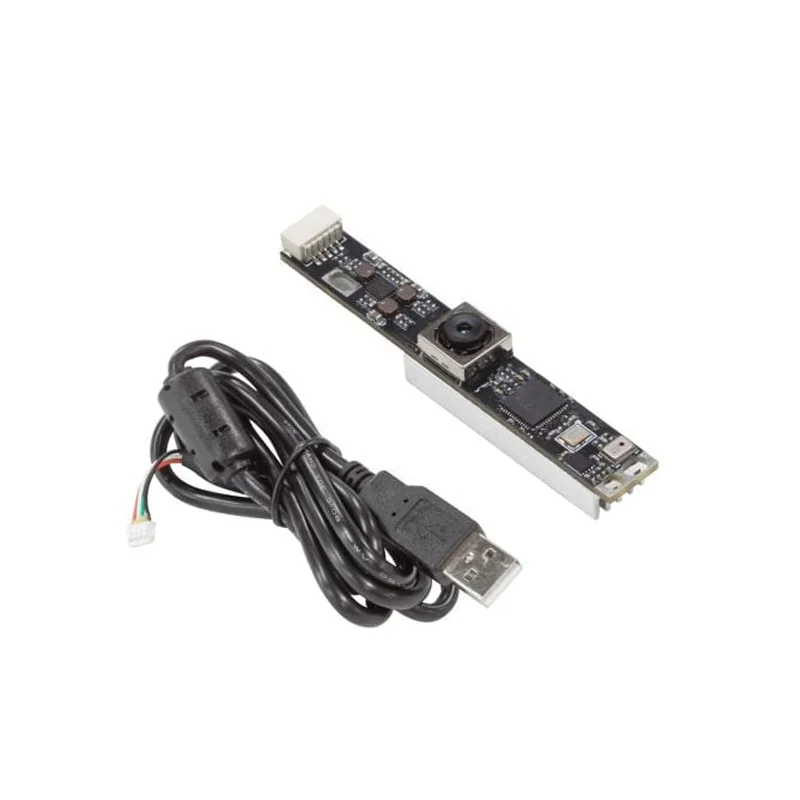

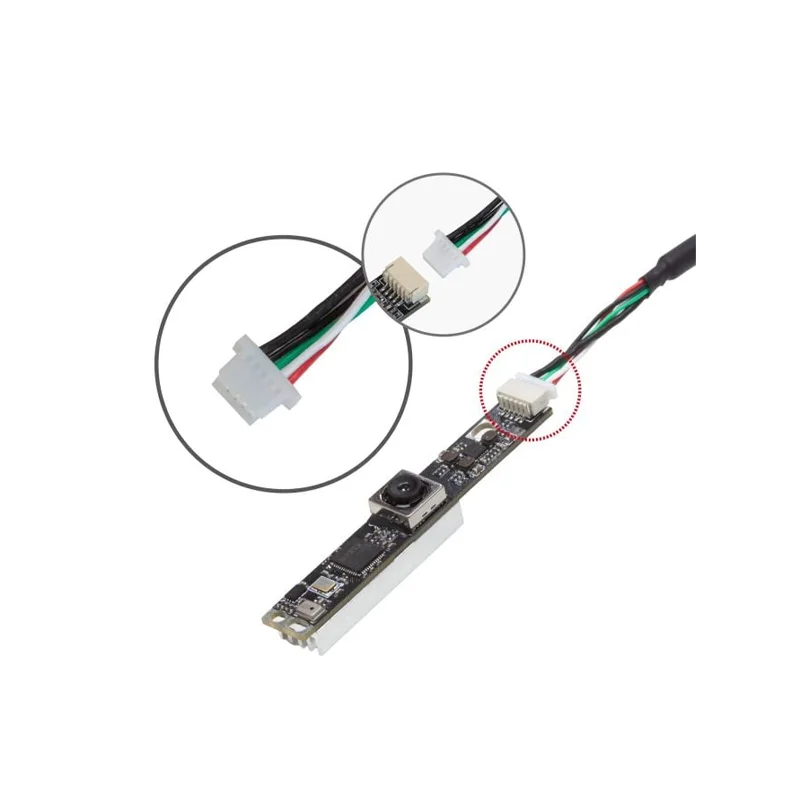

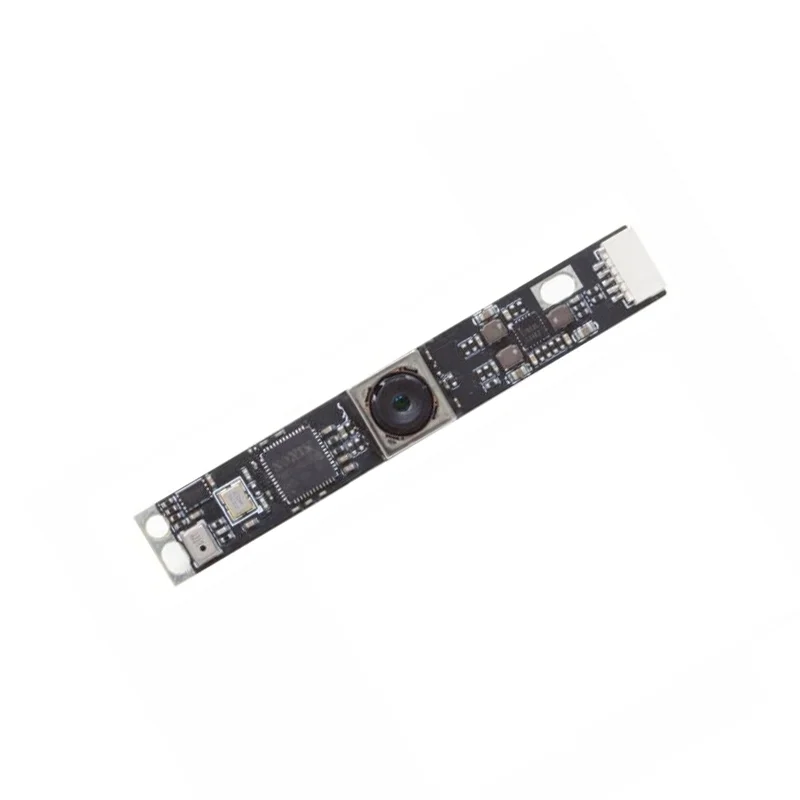

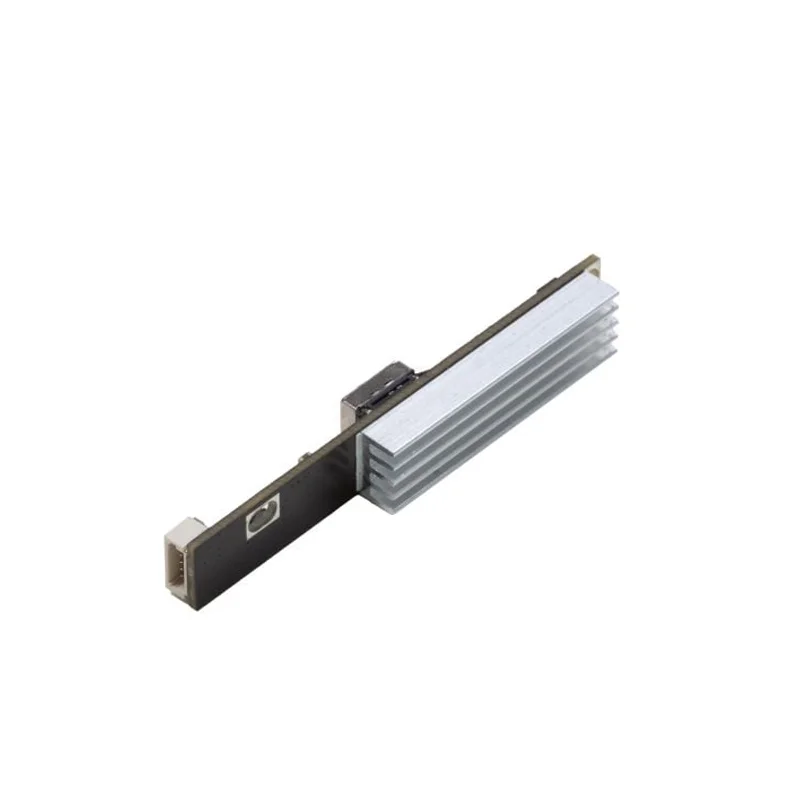

Arducam B0522 16MP IMX298 USB Camera Module with Autofocus
The Arducam B0522 is a plug-and-play USB 2.0 UVC camera module featuring a 16MP Sony IMX298 sensor and an autofocus lens. It delivers high-resolution stills and 1080P30 video with a built-in microphone, offering seamless compatibility with Windows, Linux, Android, and macOS for machine vision and streaming applications.
Features
- 16MP Sony IMX298 sensor captures high-resolution 4656×3496 still images for detailed machine vision and scanning.
- Integrated autofocus lens with an 85° field of view ensures crisp focus from 10cm to infinity.
- Supports 1080P video at 30fps with a built-in digital microphone for streaming and conferencing.
- Plug-and-play USB 2.0 UVC interface ensures broad compatibility with Windows, Linux, Android, and macOS.
- Compact and lightweight design (62mm length, 4g weight) is ideal for embedded and portable applications.
Out of stock
The Arducam B0522 USB Camera Module is engineered around the high-performance Sony IMX298 CMOS sensor, providing a 16-megapixel imaging solution in a compact, integrated package. Its rolling shutter sensor and 1.12µm pixel size deliver sharp, vivid visuals suitable for precision applications. The module’s advanced autofocus mechanism maintains image clarity across a wide 85-degree diagonal field of view with minimal distortion.
Operating as a standard USB Video Class (UVC) device, it requires no additional drivers for most modern operating systems, enabling rapid deployment. With a maximum power draw of 1.2W at 5V, it is designed for low-power, always-on scenarios. The inclusion of a built-in microphone makes it a complete audio-visual input device for video streaming, teleconferencing, and content creation.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 6.2 × 0.9 cm |
