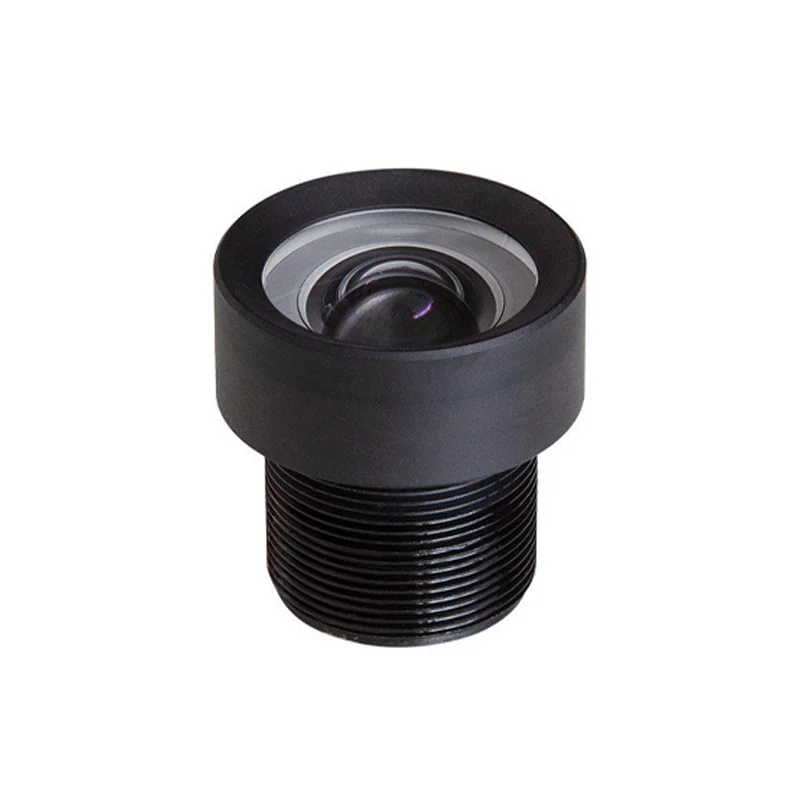

Arducam LB024 50° F2.0 6mm M12 Lens for Raspberry Pi HQ Camera
The Arducam LB024 is a 6mm focal length M12-mount lens with a 50° horizontal field of view, designed for the Raspberry Pi High Quality Camera. It features an F2.0 aperture and a built-in 650nm IR cut filter for clear visible-light imaging in photography, machine vision, and surveillance applications.
Features
- 6mm focal length with 50° horizontal FOV on Raspberry Pi HQ Camera for wide-angle capture.

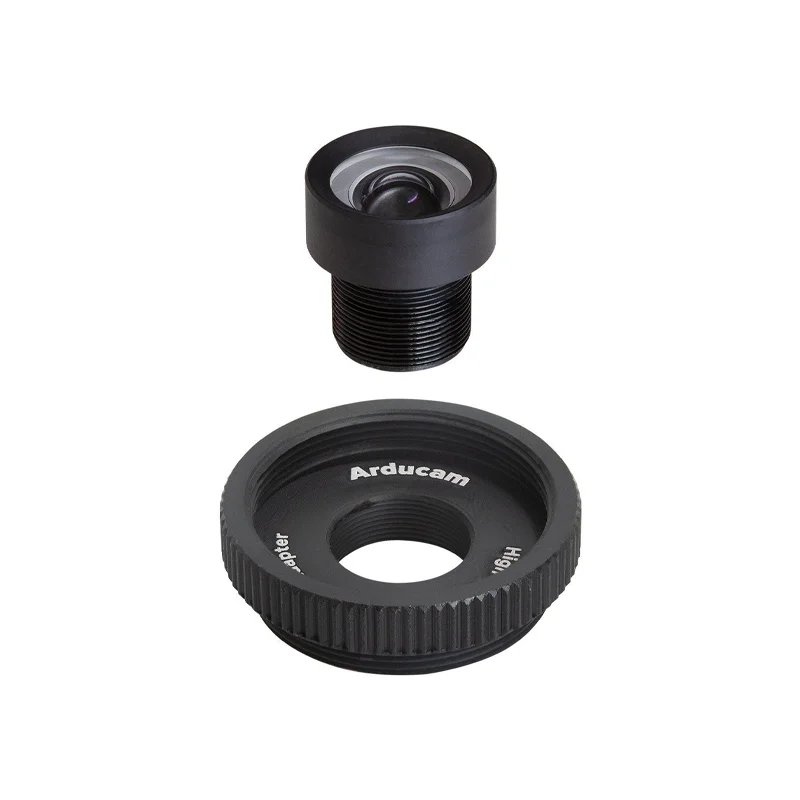

- M12 mount with included adapter ensures secure, tool-free attachment to the Pi HQ Camera module.
- F2.0 aperture provides good low-light performance and depth-of-field control.
- Built-in 650nm IR cut filter delivers accurate color reproduction for daylight imaging.
- Compact 16mm diameter design is ideal for space-constrained projects like drones or robotics.
Out of stock
The Arducam LB024 M12 lens is a precision optical component engineered to unlock the full imaging potential of the Raspberry Pi High Quality Camera. Its 6mm focal length and 50-degree horizontal field of view provide a balanced perspective suitable for a wide range of computer vision and photography tasks, from environmental monitoring to product inspection.
Constructed with a standard M12 thread mount and a matching 1/2.3-inch optical format, this lens ensures sharp corner-to-corner image coverage on the camera’s 12.3-megapixel sensor. The integrated 650nm infrared cut filter effectively blocks near-IR wavelengths, which is critical for achieving true-to-life color accuracy in visible light applications without the need for external filtering.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 3 × 3 cm |
