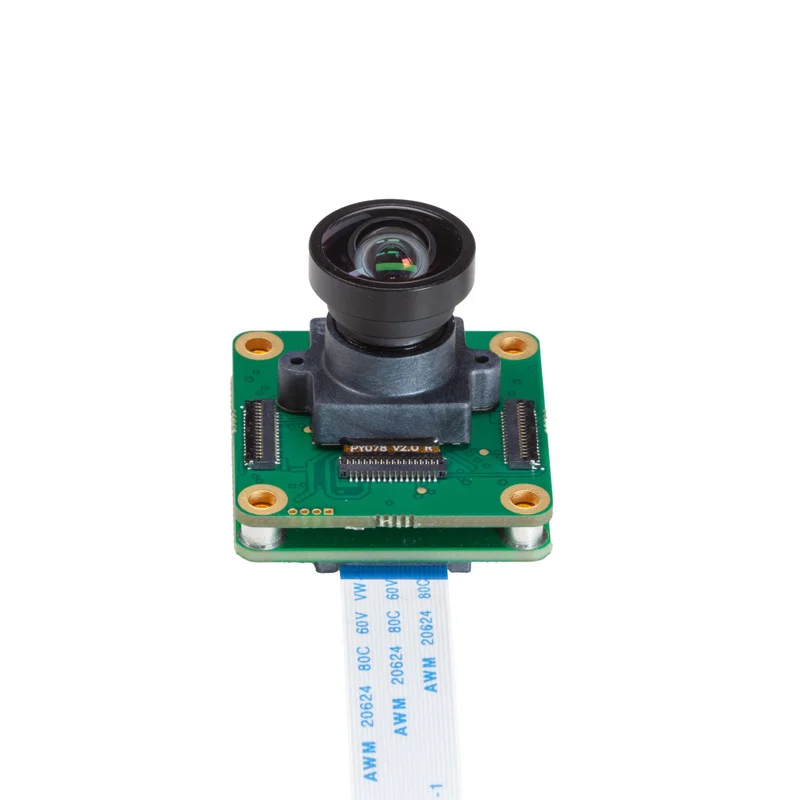

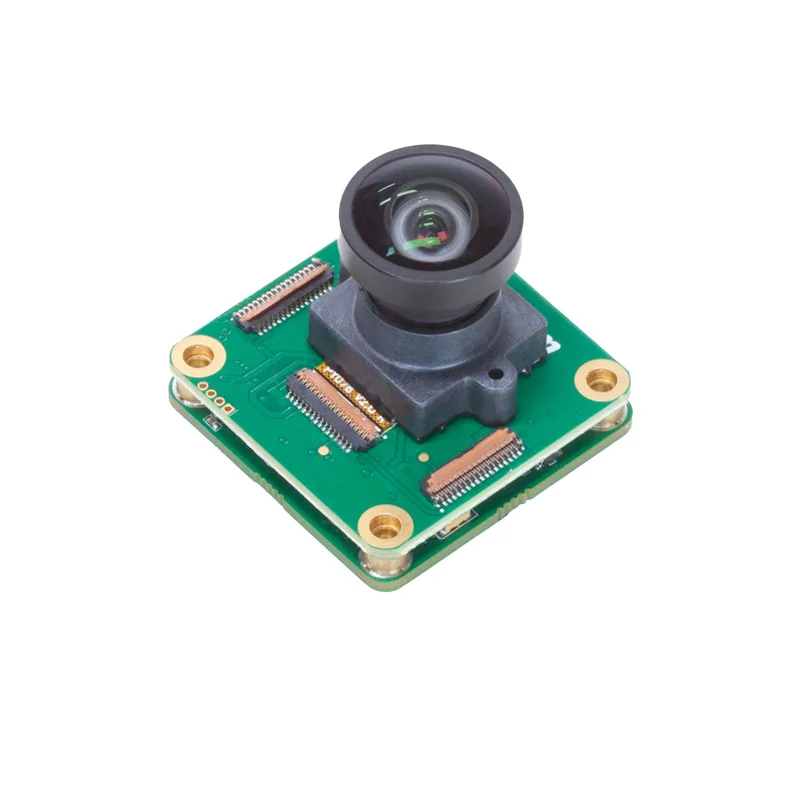

Arducam 2.3MP Global Shutter Camera Module for Jetson Orin Nano/NX
This 2.3MP global shutter camera module connects via MIPI CSI-2 to NVIDIA Jetson Orin Nano/NX platforms, delivering motion-blur-free imaging at up to 30fps for robotics and industrial vision applications.
Features
- 2.3MP Global Shutter Sensor: Captures 1920×1200 resolution images without motion blur, ideal for high-speed robotics and automated inspection.
- Jetson-Optimized Integration: Pre-validated with NVIDIA V4L2 drivers for seamless setup on Jetson Orin Nano and NX developer kits.
- Onboard ISP for Image Tuning: Provides real-time control over exposure, gain, white balance, and saturation for precise image adjustments.
- Wide 110° Field of View: Features a fixed-focus 2.8mm M12 lens for broad scene coverage in navigation and monitoring tasks.
- Low-Power Edge Deployment: Operates at 3.3V with ~1W power consumption, suitable for embedded and mobile AI vision systems.
Out of stock
Engineered for demanding edge AI applications, the Arducam 2.3MP Global Shutter Camera Module delivers consistent exposure and high-fidelity imaging for NVIDIA Jetson platforms. Its global shutter sensor eliminates rolling shutter distortion, ensuring pixel-accurate capture of fast-moving objects—a critical requirement for robotic navigation, pick-and-place systems, and automated optical inspection.

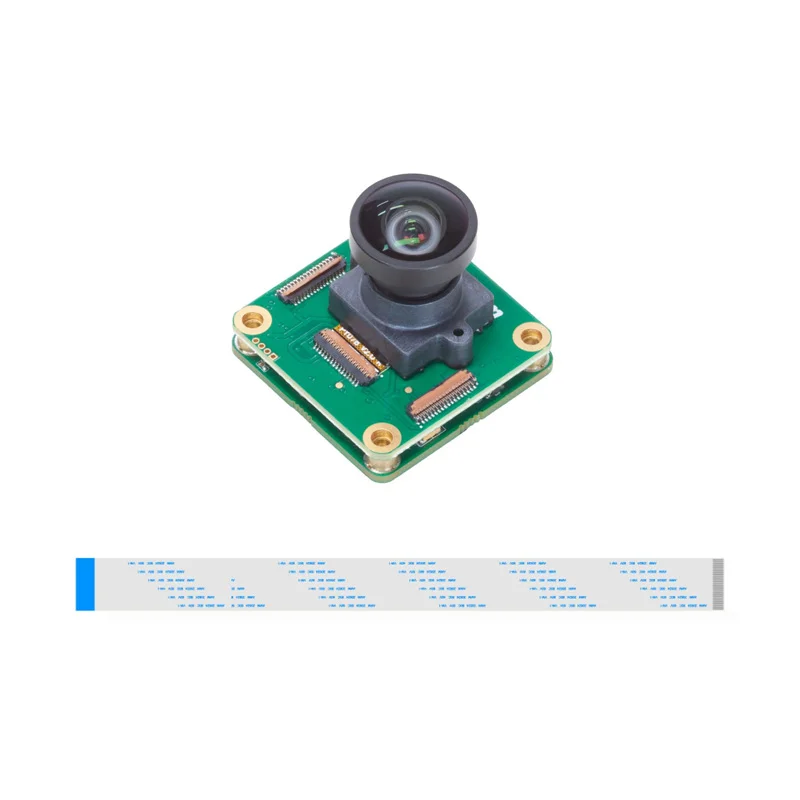

The module integrates a hardware-tuned image signal processor (ISP) pipeline, allowing developers to fine-tune brightness, contrast, and white balance programmatically via standard V4L2 controls. With a native MIPI CSI-2 interface and a supplied 15cm ribbon cable, it plugs directly into the Jetson Orin Nano/NX carrier board, reducing integration complexity and accelerating vision pipeline development for machine learning and computer vision workloads.
Additional Information
| Weight | 0.034 kg |
|---|---|
| Dimensions | 6 × 6 × 6 cm |
