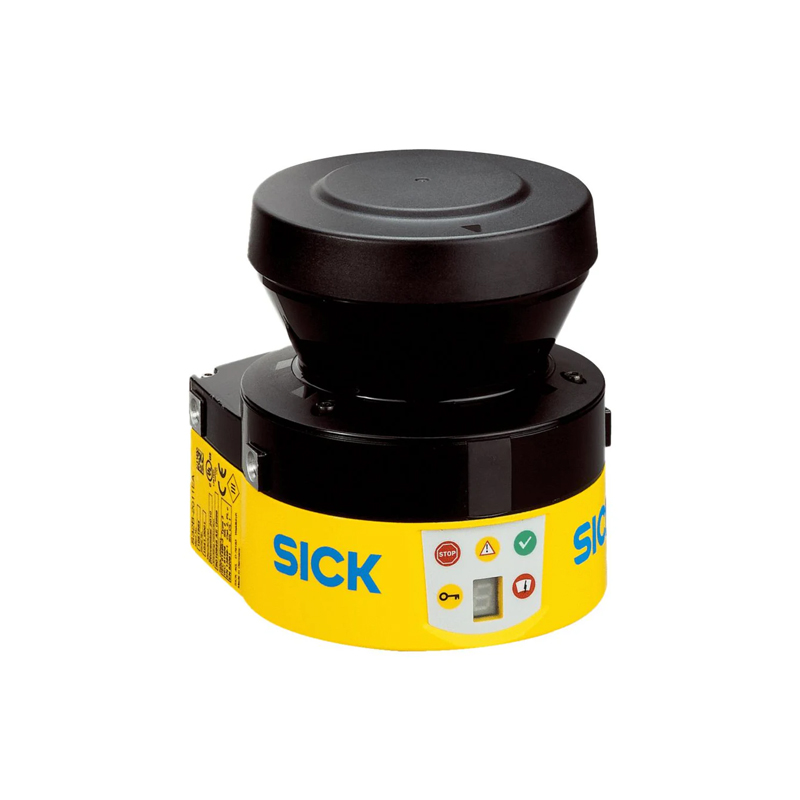

SICK S32B-2011BA Safety Laser Scanner - 270° Beam Angle, 3 Field Pair, Type 3, SIL2, IP65
SICK S32B-2011BA Safety Laser Scanner - 270° Beam Angle, 3 Field Pair, Type 3, SIL2, IP65 - Image 2
SKU: SENS-2729
📋 GST Invoice Available

SICK S32B-2011BA Safety Laser Scanner - 270° Beam Angle, 3 Field Pair, Type 3, SIL2, IP65

₹668,179.00 (Inclusive of all taxes)
Out of Stock

The SICK S32B-2011BA is a Type 3, SIL2 safety laser scanner designed for industrial machine guarding and hazardous area monitoring. It provides a 270° scanning angle with configurable protective and warning fields, featuring an RS-232 interface for configuration and diagnostics.

Features

  • 270° wide scanning angle for comprehensive area coverage.
  • Type 3 (IEC 61496) and SIL2 (IEC 61508) safety certification.
  • Configurable with 3 protective/warning field pairs for flexible zone setup.
  • IP65-rated housing for dust-tight and water-resistant operation.
  • RS-232 interface for configuration, diagnostics, and integration.

Out of stock

Description

The SICK S32B-2011BA safety laser scanner utilizes time-of-flight (ToF) laser ranging to create a protective field around hazardous machinery. It continuously scans its 270° field of view, detecting any intrusion into predefined safety zones and triggering safety-rated outputs to halt machine operation, ensuring compliance with stringent international safety standards.

Engineered for harsh industrial environments, its IP65-rated enclosure protects against dust ingress and water jets. The scanner supports complex safety scenarios through its three configurable field pairs, allowing for separate protective and warning zones up to 2 meters and 8 meters, respectively, which can be tailored via the integrated RS-232 interface.

Key Features

  • High-integrity safety system certified to Type 3, SIL2, and PL d.
  • Flexible field configuration with three independent protective/warning field pairs.
  • Robust IP65-rated housing ensures reliable performance in dusty or wet conditions.
  • Compact form factor (116mm length) facilitates installation in space-constrained locations.
  • Integrated RS-232 serial interface for straightforward configuration and real-time diagnostics.
  • Multiple resolution settings (30/40/50/70 mm) for precise object detection sensitivity.

Applications

  • Perimeter guarding for robotic cells and automated assembly lines.
  • Access protection and intrusion detection for hazardous machinery zones.
  • Safeguarding automated guided vehicle (AGV) pathways and loading docks.
  • Monitoring restricted areas in packaging, palletizing, and material handling systems.

Technical Specifications

Manufacturer Part NumberS32B-2011BA
Scanning Angle270°
Protective Field Range2 m
Warning Field Range8 m
Safety CertificationType 3 (IEC 61496), SIL2 (IEC 61508), PL d
Configurable Field Pairs3
Detection Resolution30/40/50/70 mm
InterfaceRS-232
Ingress ProtectionIP65
Length11.6 cm
Height1.1 cm
Weight0.8 kg

Frequently Asked Questions

What safety standards does the SICK S32B-2011BA comply with?

The scanner is certified to Type 3 according to IEC 61496 for electro-sensitive protective equipment (ESPE) and achieves Safety Integrity Level 2 (SIL2) per IEC 61508. It also meets Performance Level d (PL d) under ISO 13849-1, making it suitable for high-risk machine safety applications.

How are the protective and warning fields configured?

The device features three configurable field pairs, each consisting of a protective field (up to 2m) and a warning field (up to 8m). Configuration is performed via the integrated RS-232 serial interface using SICK's proprietary software, allowing you to define the shape, size, and response logic for each zone.

What is the operating voltage and output signal of this safety scanner?

The S32B-2011BA typically operates on a 24V DC supply. It provides safety-rated output signals (OSSDs - Output Signal Switching Devices) that switch to a safe state upon intrusion detection. The exact pinout and wiring diagram should be consulted from the official SICK installation manual for proper integration into your safety control system.

Package Includes

  • 1 x SICK S32B-2011BA Safety Laser Scanner

Additional Information

Weight 0.8 kg
Dimensions 11.6 × 1.1 cm
