SICK RZT7-03ZUS-KU0 Cylinder Position Sensor, T-Type, SPST-NO, 5–30 VDC, 2-Wire, IP65/IP67, 2 m Cable, Range: 10mm

Name: SICK RZT7-03ZUS-KU0 Cylinder Position Sensor, T-Type, SPST-NO, 5–30 VDC, 2-Wire, IP65/IP67, 2 m Cable, Range: 10mm
Brand: SICK
SKU: SENS-1965
Price: 5739.00 INR
Availability: OutOfStock

₹5,739.00 (Inclusive of all taxes)

Out of Stock

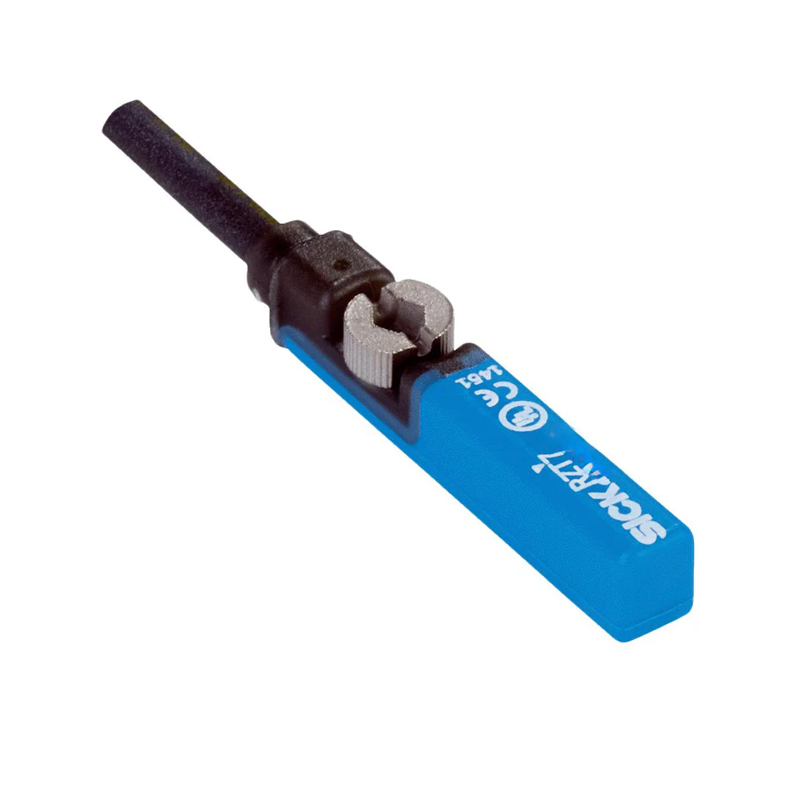

The SICK RZT7-03ZUS-KU0 is a compact T-Type magnetic cylinder position sensor designed for reliable, non-contact detection of piston end-of-stroke positions in pneumatic cylinders. Operating on a 5–30 VDC supply with a SPST-NO reed switch output, it integrates directly into industrial PLCs and control systems via its 2-wire, 2-meter cable.

Features

Magnetic reed switch sensing for reliable, non-contact piston position detection.
Wide operating voltage range of 5–30 VDC for flexible system integration.
Robust IP65/IP67 protection rating for reliable operation in dusty or wet industrial environments.
Direct T-slot mounting profile for easy installation on compatible pneumatic cylinders.
SPST-Normally Open (SPST-NO) output for straightforward interfacing with PLCs and controllers.

Out of stock

Get Notified When Available

Description

The SICK RZT7-03ZUS-KU0 utilizes a hermetically sealed magnetic reed switch as its sensing element. This principle provides a highly reliable, non-contact method for detecting the position of a magnet-equipped piston within a pneumatic cylinder, offering excellent long-term stability and resistance to wear.

Engineered for industrial automation, the sensor features a robust housing with IP65 and IP67 ingress protection, ensuring reliable performance in environments with dust exposure or temporary water immersion. Its 2-wire connection simplifies wiring, and the integrated 2-meter cable provides installation flexibility for machine builders and system integrators.

Key Features

Magnetic reed switch sensing principle for high reliability and long service life.
Compact T-Type housing designed for direct mounting in pneumatic cylinder T-slots.
Wide 5–30 VDC supply voltage range compatible with common industrial control voltages.
Dual IP65/IP67 protection ratings for dust-tight and water-resistant operation.
SPST-Normally Open (SPST-NO) contact output for simple connection to digital inputs.
Integrated 2-meter, 2-wire PVC cable for flexible installation.
Optimized for 10mm magnetic travel range for precise end-of-stroke detection.
Durable construction suitable for vibration-prone industrial automation applications.

Applications

End-of-stroke detection in pneumatic cylinders for packaging and material handling machines.
Position feedback for actuator control in automated assembly lines and conveyor systems.
Safety interlock and position verification in industrial clamping and pressing equipment.
Monitoring pneumatic cylinder states in automotive manufacturing and robotics cells.

Technical Specifications

Manufacturer Part Number	RZT7-03ZUS-KU0
Sensor Type	Cylinder Position Sensor (Magnetic Reed Switch)
Measurement Range	10 mm
Output Type	SPST-Normally Open (SPST-NO)
Supply Voltage	5–30 VDC
Mounting Style	T-Slot Mount (T-Type)
Connection	2-Wire, 2 m Integrated Cable
Protection Rating	IP65, IP67
Application	Pneumatic Cylinder Position Sensing
Length	2.95 cm
Width	0.58 cm
Weight	0.028 kg

Frequently Asked Questions

What is the operating voltage range for the SICK RZT7-03ZUS-KU0 sensor?

The sensor operates on a wide DC voltage range from 5 to 30 volts. This makes it compatible with common industrial control voltages like 12VDC or 24VDC, as well as lower logic-level systems, providing significant flexibility for system integration.

How do I interface the SPST-NO output with my PLC or controller?

The SPST-NO (Single-Pole Single-Throw, Normally Open) output acts like a simple switch. Connect one wire to your control voltage and the other to the digital input of your PLC or controller. The switch closes (conducts) when the sensor detects the magnetic piston, pulling the input low or high depending on your wiring configuration.

What does the IP65/IP67 protection rating mean for installation?

IP65 rating guarantees dust-tight protection and resistance to low-pressure water jets from any direction. IP67 adds protection against temporary immersion in water up to 1 meter for 30 minutes. This allows installation in washdown areas or environments with significant dust and moisture.

Is this sensor suitable for all pneumatic cylinder types?

No, this sensor is specifically designed as a T-Type sensor for direct mounting into the T-slot profile of compatible pneumatic cylinders. You must verify that your cylinder has a matching T-slot groove to ensure proper mounting and alignment with the internal magnet.
