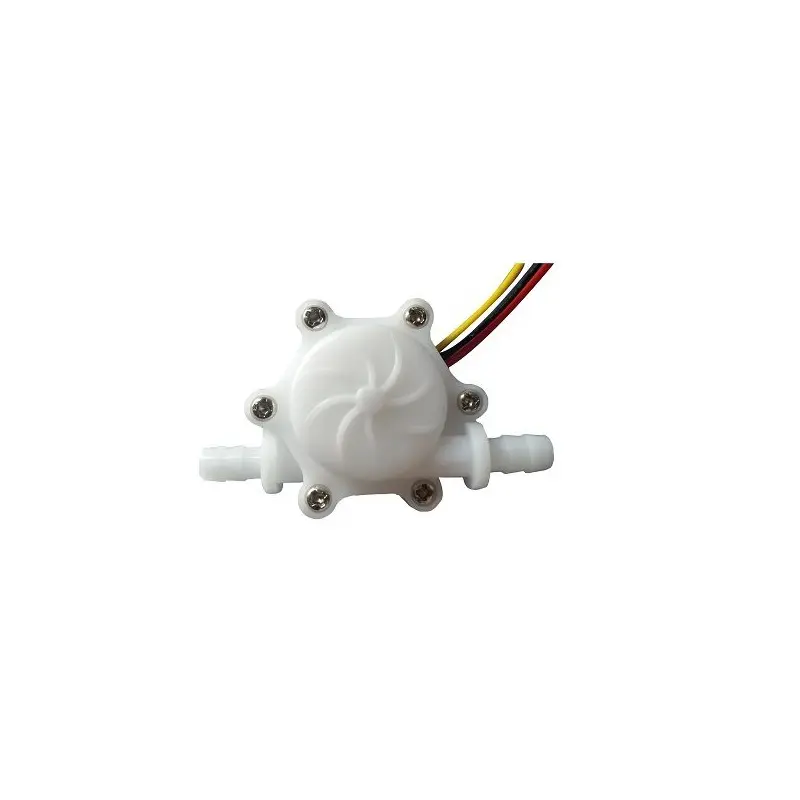

Saier HZ06C Water Flow Sensor (0.15–1.5 L/min) - Turbine Sensor Module
The Saier HZ06C is a compact turbine-based water flow sensor module designed for precise low-flow rate monitoring from 0.15 to 1.5 L/min. Operating on a wide 4.5-18V DC input, it provides both analog and digital output signals, making it compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for liquid and gas flow measurement applications.
Features
- Precise turbine sensor for flow rates from 0.15 to 1.5 liters per minute (L/min).
- Wide operating voltage range of 4.5 to 18V DC with low current draw (≤15mA).
- Provides flexible analog and digital output signals for system integration.
- Compact and durable construction suitable for tight installation spaces.
- Rated for working water pressures up to 1.2 MPa (≤1.20).
Out of stock
The Saier HZ06C employs a reliable turbine sensor mechanism to translate fluid flow into a measurable electrical signal. As fluid passes through the sensor body, it spins an internal turbine, generating a pulse frequency or analog voltage proportional to the flow rate. This design ensures consistent and repeatable measurements for both liquid and compatible gas applications.
Engineered for system integration, the module features signal-conditioned outputs. The digital output provides a clean square wave pulse signal, while the analog output delivers a voltage level corresponding to the flow rate. Its robust construction and electrical insulation (resistance >100 MΩ) ensure reliable long-term performance in diverse environments, from home appliance monitoring to industrial process control.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
